A/C Compressor Drive Belt Inspection

A/C Compressor and/or Power Steering Pump Drive Belt (If equipped)
1. Detach air cleaner assembly from vehicle body and shift its position.
2. Inspect belt for wear, deterioration and tension. Replace or adjust, if necessary.

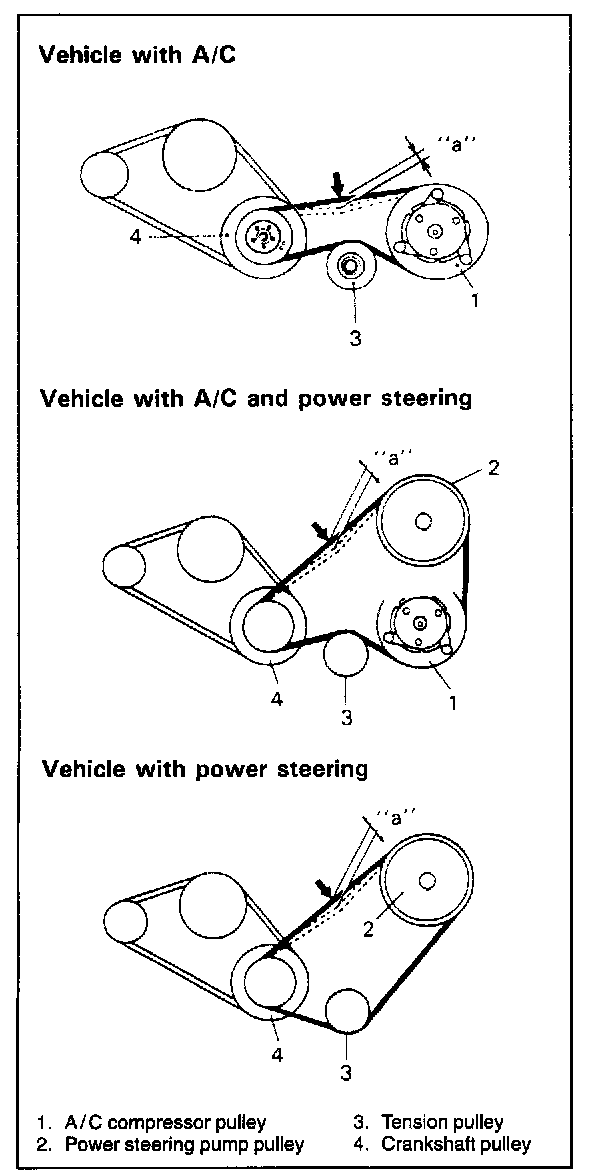

A/C compressor and/or power steering pump drive belt tension "a":
8 - 10 mm (0.32 - 0.39 in.) deflection under 10 kg or 22 lb pressure
