Drive Belt: Diagrams

DRIVE BELT




1. Check belt for wear and crack, and replace it as required.

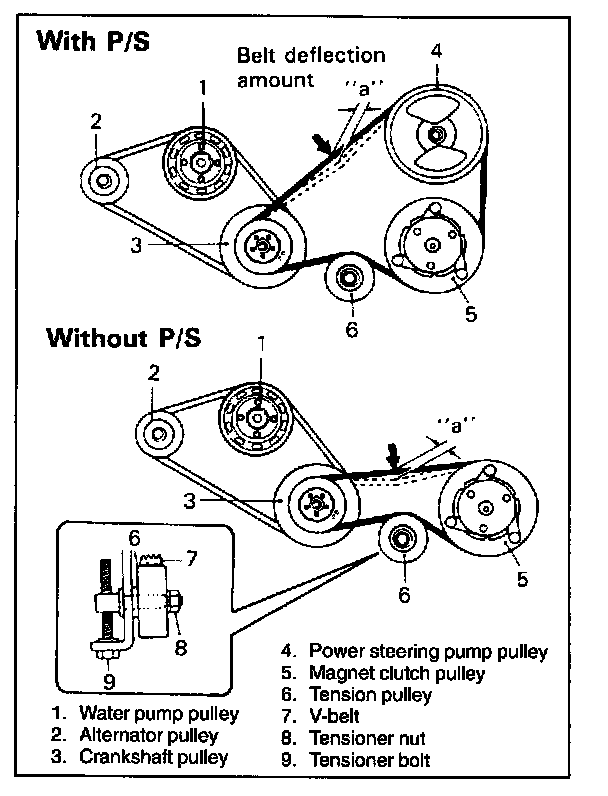

2. Check belt tension by measuring how much it deflects when pushed at intermediate point between Power Steering (P/S) pump pulley and crank pulley with about 100 N (10 kg, 22 lb) force.
Deflection of A/C belt "a": 8 - 10 mm (0.30 - 0.40 in)
