Power Mirror Motor: Testing and Inspection

Power Door Mirror Motor Inspection

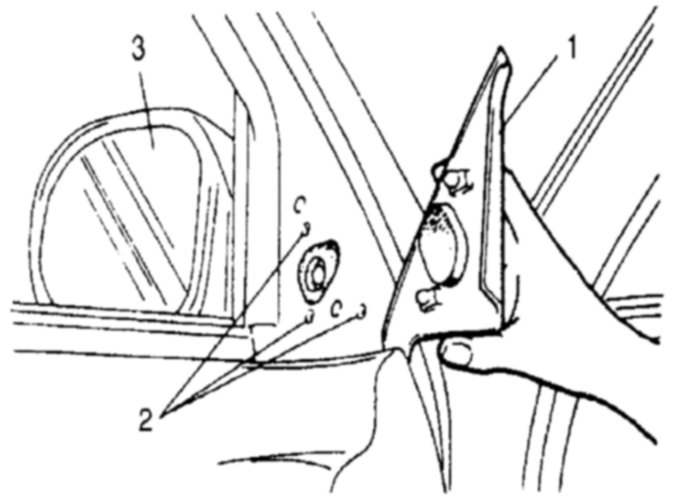

1. Remove garnish (1) and screws (2) from door.
2. Remove door mirror (3) from door by disconnecting coupler.

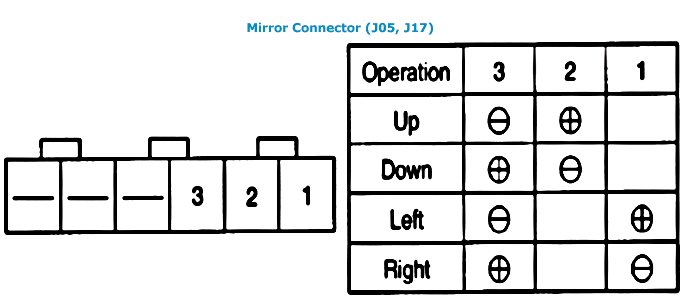

3. With couplers connected, check that door mirror operates properly when battery voltage is applied to connector terminals.
If faulty is found, correct or replace.

NOTE: When installing door mirror to door, be careful not to pinch harness between door and door mirror.
