P1500

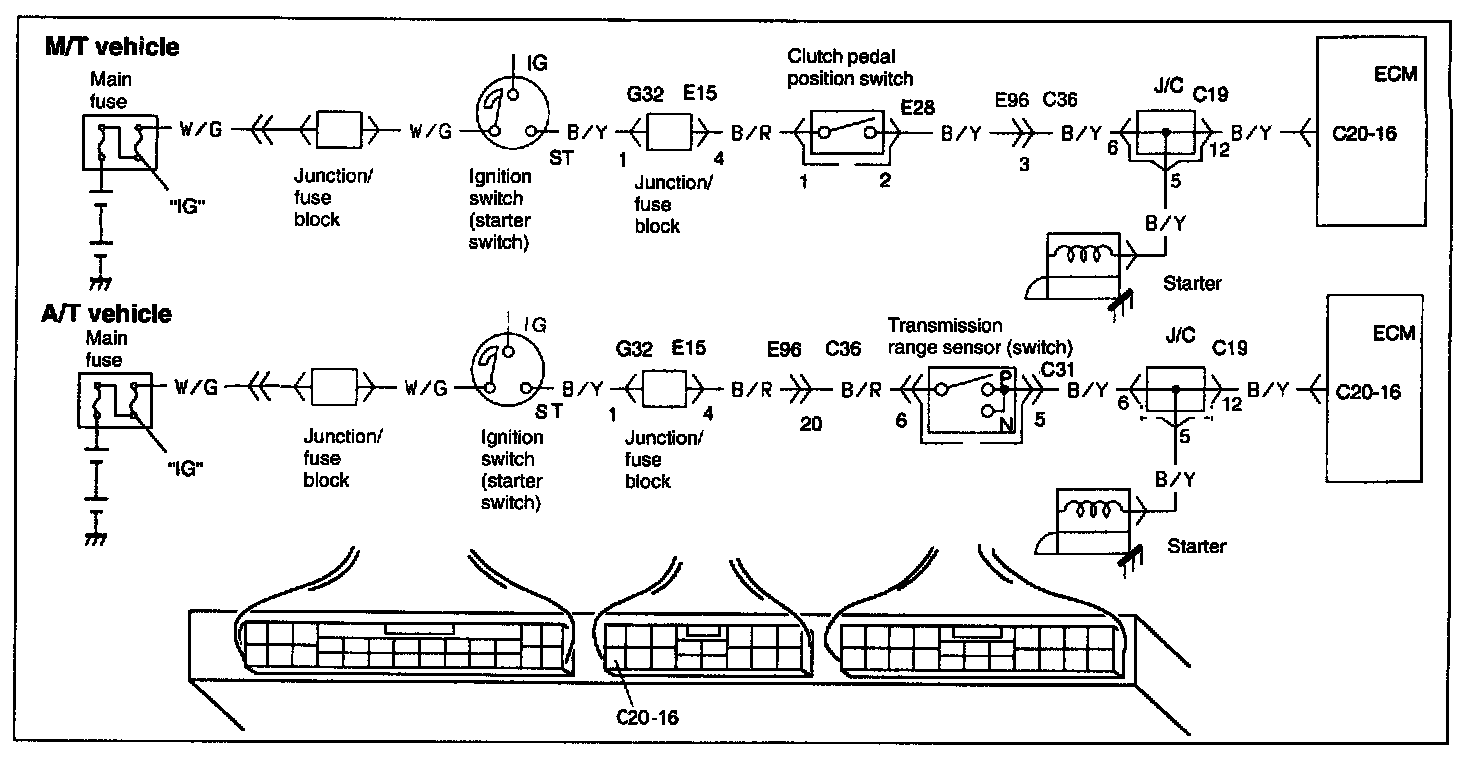

Wiring Diagram:

CIRCUIT DESCRIPTION
Refer to Engine Starter Signal.

Detecting Condition / Possible Cause:

DTC CONFIRMATION PROCEDURE
1. Turn ignition switch OFF
2. Clear DTC with ignition switch ON, crank engine and run it at idle for 3 min.
3. Check pending DTC in "ON BOARD TEST" or "PENDING DTC" mode and DTC in "DTC" mode.

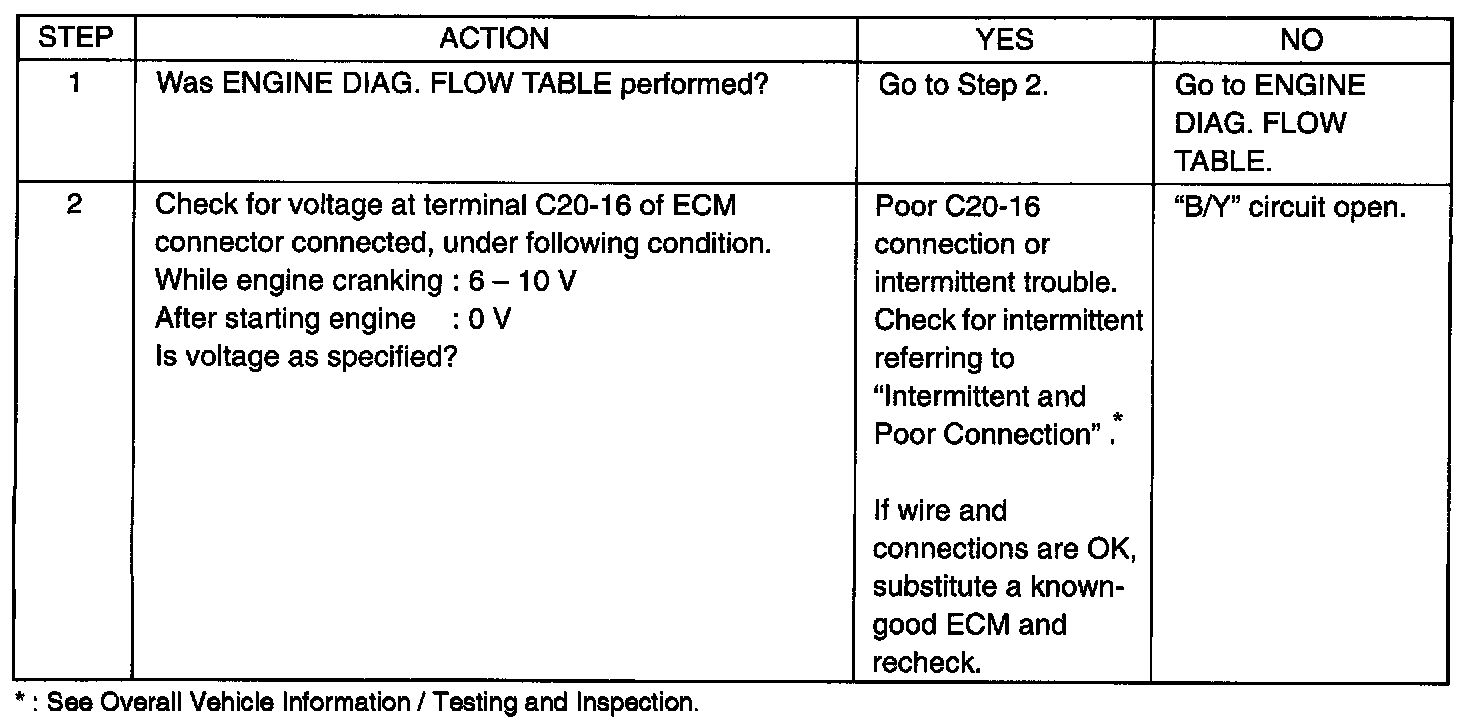

Inspection (Steps 1 - 2):
