P1410

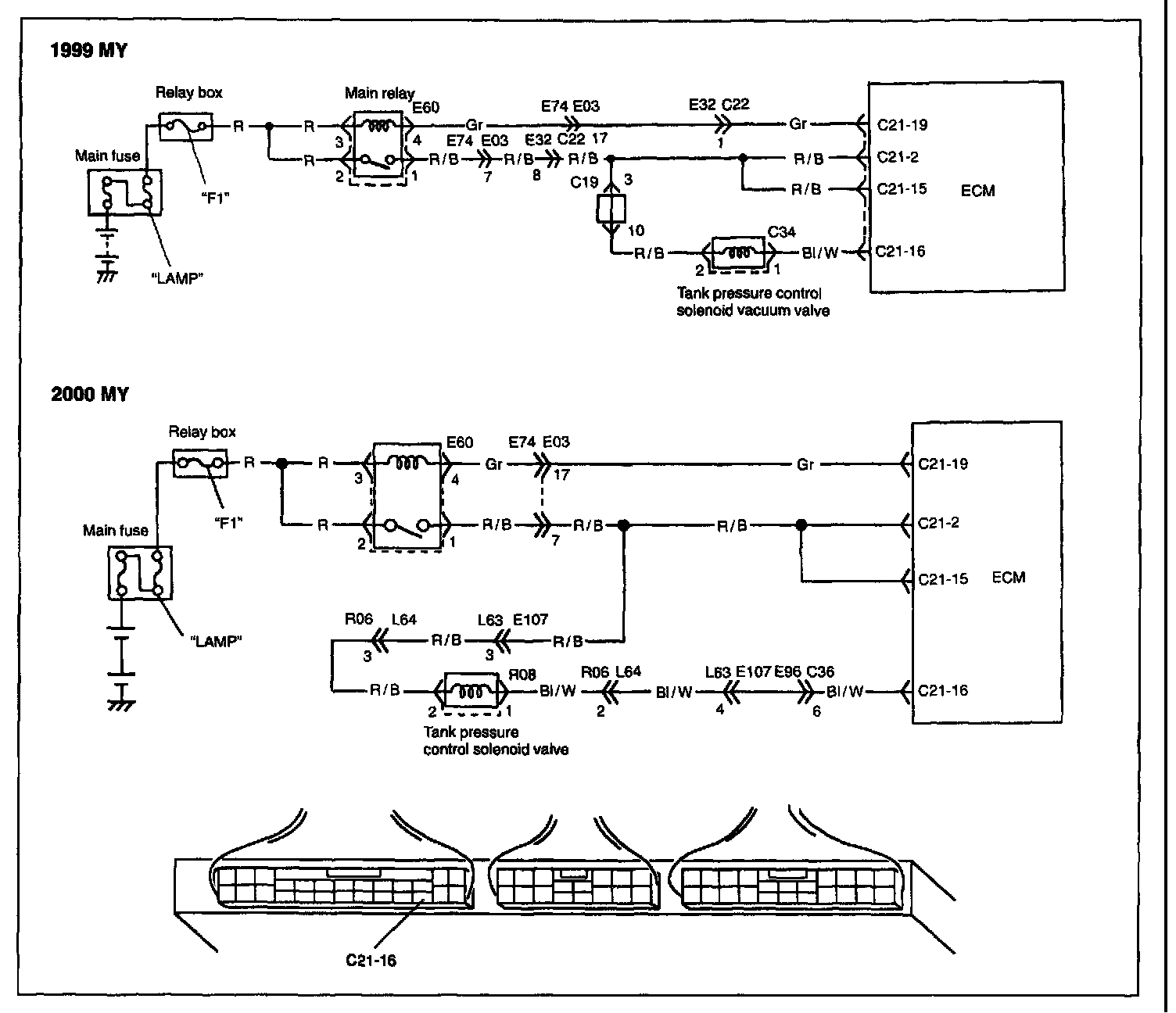

Wiring Diagram:

CIRCUIT DESCRIPTION
Refer to FUEL TANK PRESSURE CONTROL SYSTEM (Evaporative Emission Control System).

Detecting Condition / Possible Cause:

DTC CONFIRMATION PROCEDURE
When fuel level meter indicates 3/4 or more, perform the following procedure.
When it indicates lower than 3/4, go to Step 2 (system circuit inspection) in DTC P1410 Diag. Flow Table.
1. Turn ignition switch OFF.
2. Clear DTC with ignition switch ON.
3. Start engine and vehicle stops.
4. Check pending DTC in "ON BOARD TEST" or "PENDING DTC" mode and DTC in "DTC" mode.

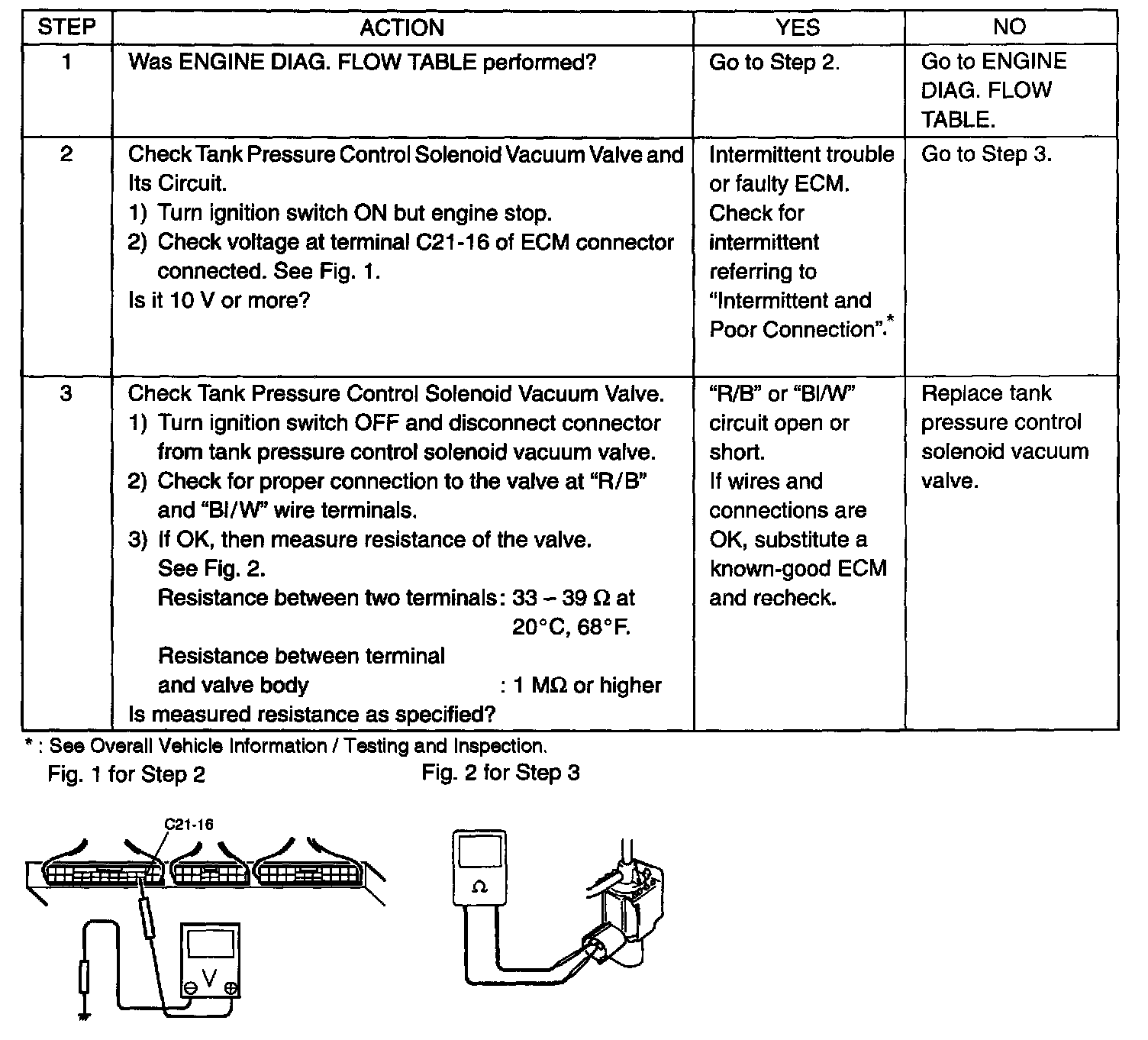

Inspection (Steps 1 - 3):

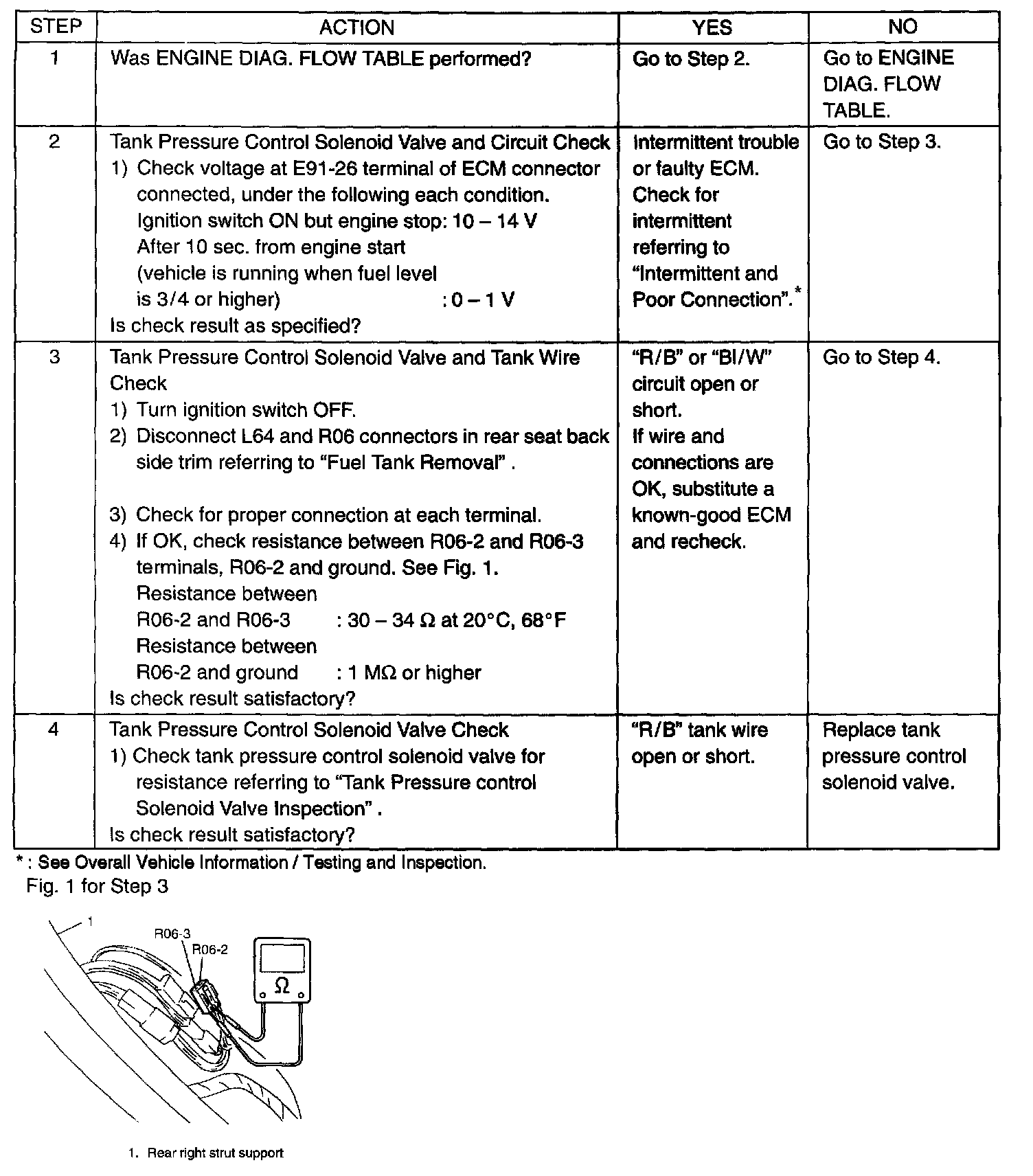

Inspection (Steps 1 - 4):
