P0335

Wiring Diagram:

CIRCUIT DESCRIPTION
Refer to CKP Sensor Operation.

Detecting Condition / Possible Cause:

Reference

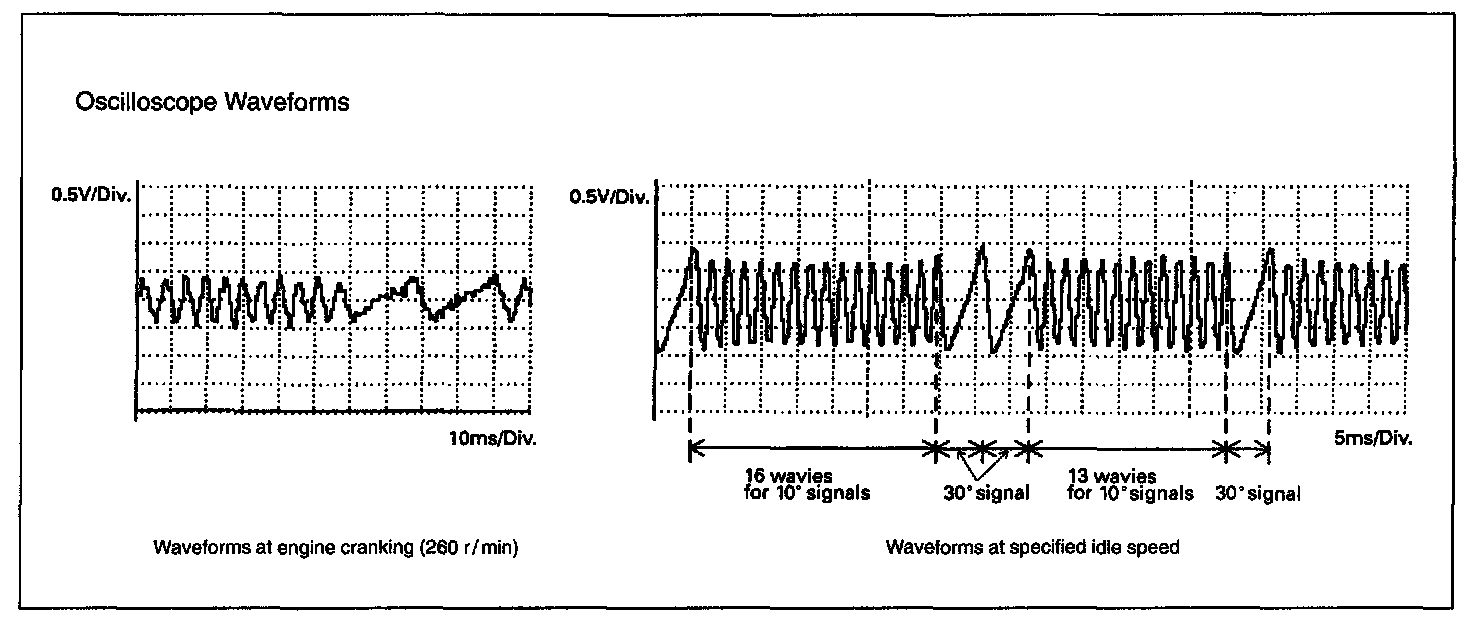

Connect oscilloscope between terminals C20-3 (+) and C20-1 1 (-) of ECM connector connected to ECM and check CKP sensor signal.

DTC CONFIRMATION PROCEDURE
1. Clear DTC and crank engine for 2 sec.
2. Select "DTC" mode on scan tool and check DTC.

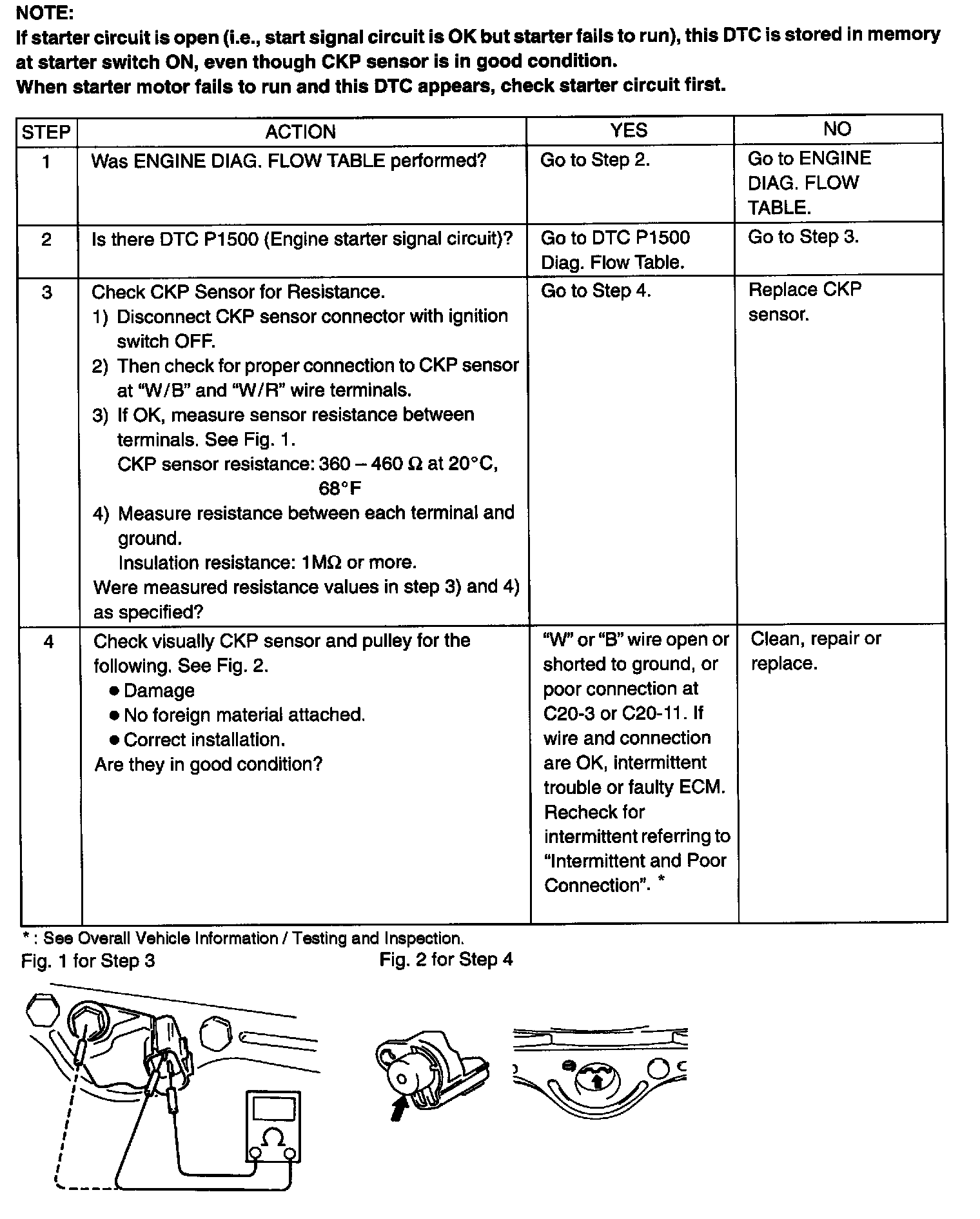

Inspection (Steps 1 - 4):
