Special Service Campaign: V7, Service Stop Lamp Switch Failure (TS 05-01 10209R)

Publication date: 1999-10-20
Reference number: TS 05-01 10209R

SPECIAL SERVICE CAMPAIGN: V7, SERVICE STOP LAMP SWITCH FAILURE

TECHNICAL SERVICE BULLETIN

Reference Number(s): TS 05-01 10209R, Date of Issue: October 20, 1999

SUZUKI:	1999 Vitara (CAMI built 1.6L & 2.0L)
SECTION:	05 - Brakes

SPECIAL SERVICE CAMPAIGN: V7, SERVICE STOP LAMP SWITCH FAILURE

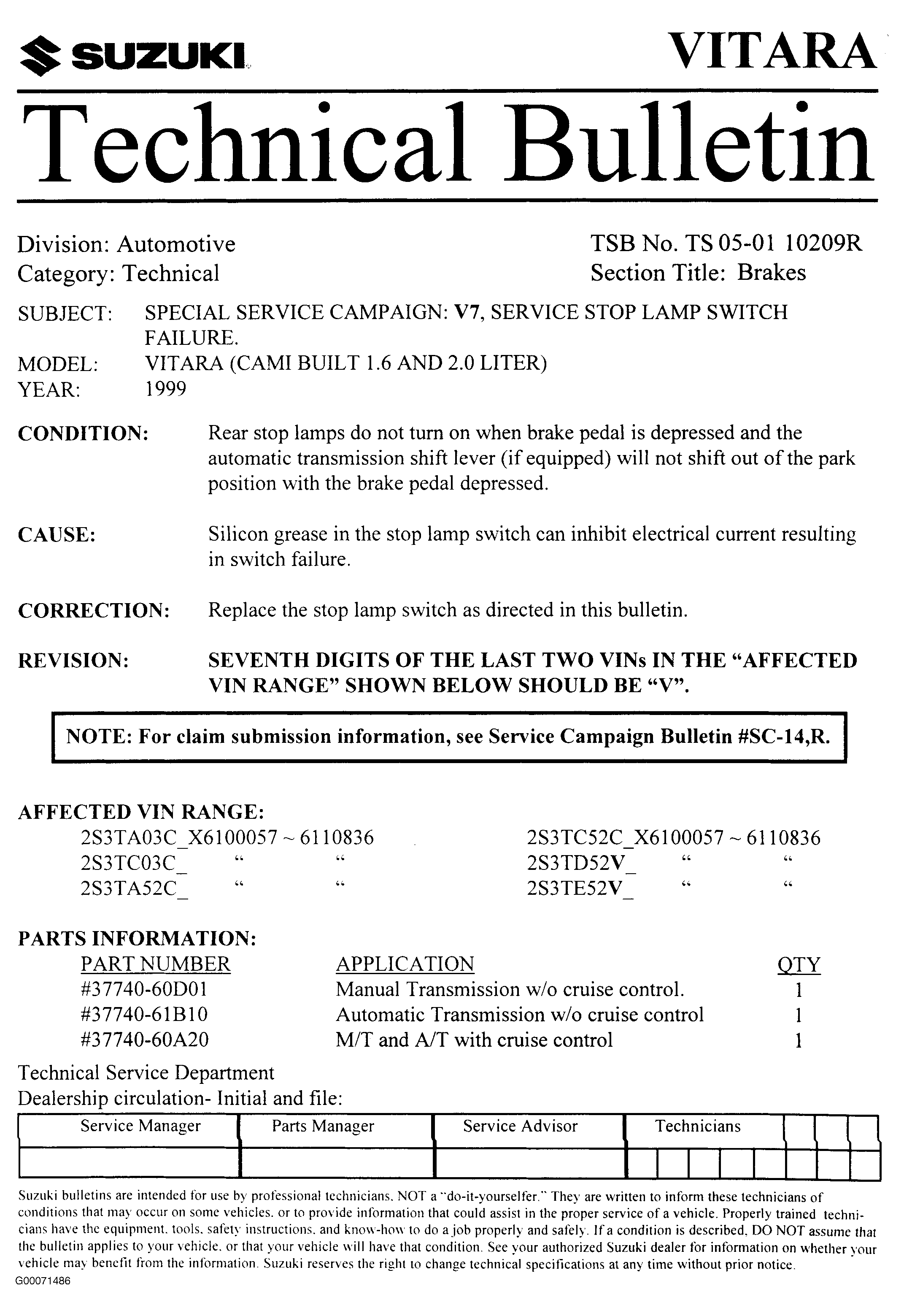

Fig 1: Page 1 of Bulletin

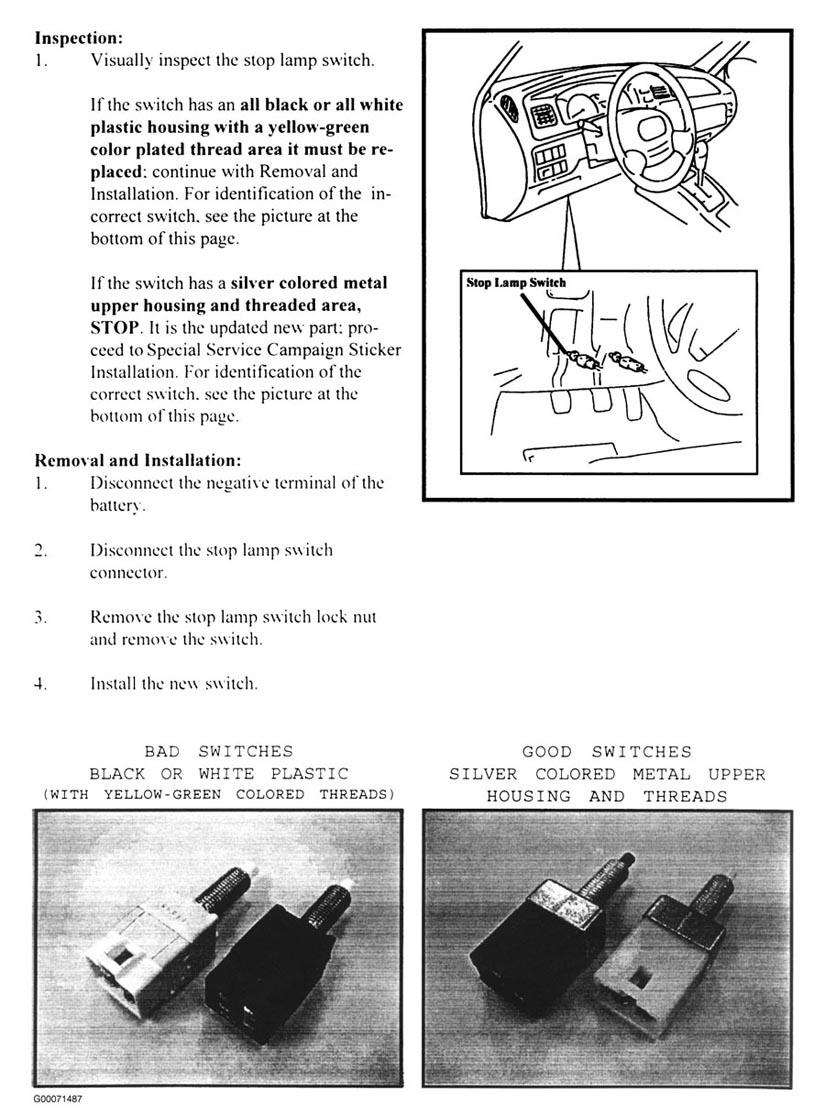

Fig 2: Page 2 of Bulletin

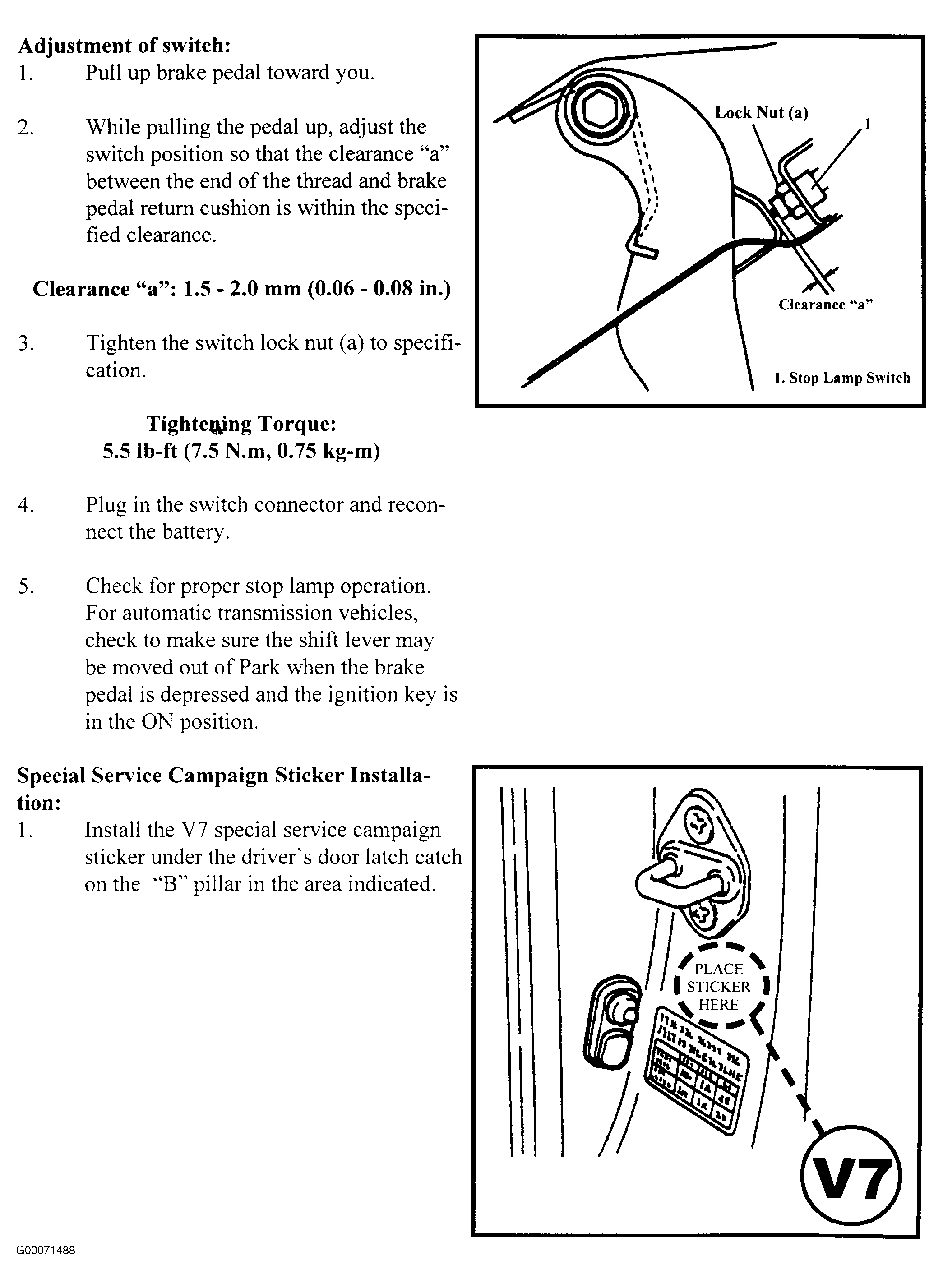

Fig 3: Page 3 of Bulletin
