Table B-3: "Power" Light Circuit Check (Light Doesn't Light)

DIAGNOSTIC FLOW TABLE B-3
"POWER" LIGHT CIRCUIT CHECK
("POWER" LIGHT DOESN'T LIGHT AT IGNITION SWITCH ON BUT ENGINE STARTS UP)

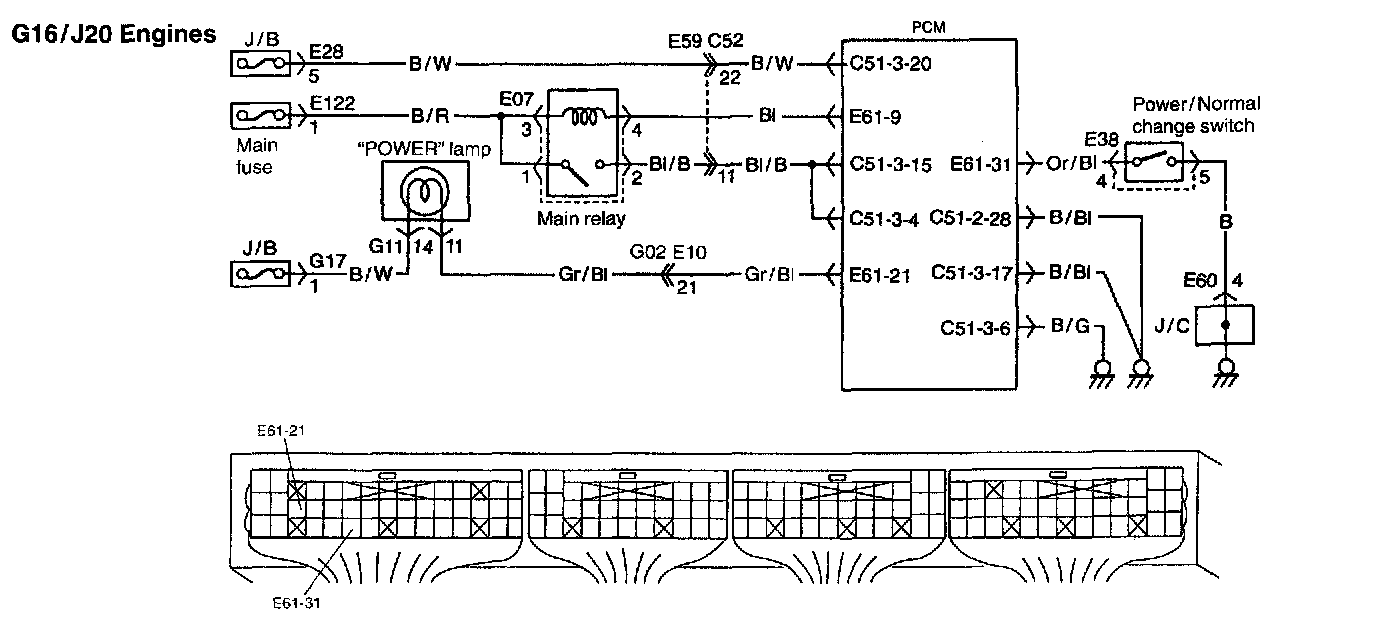

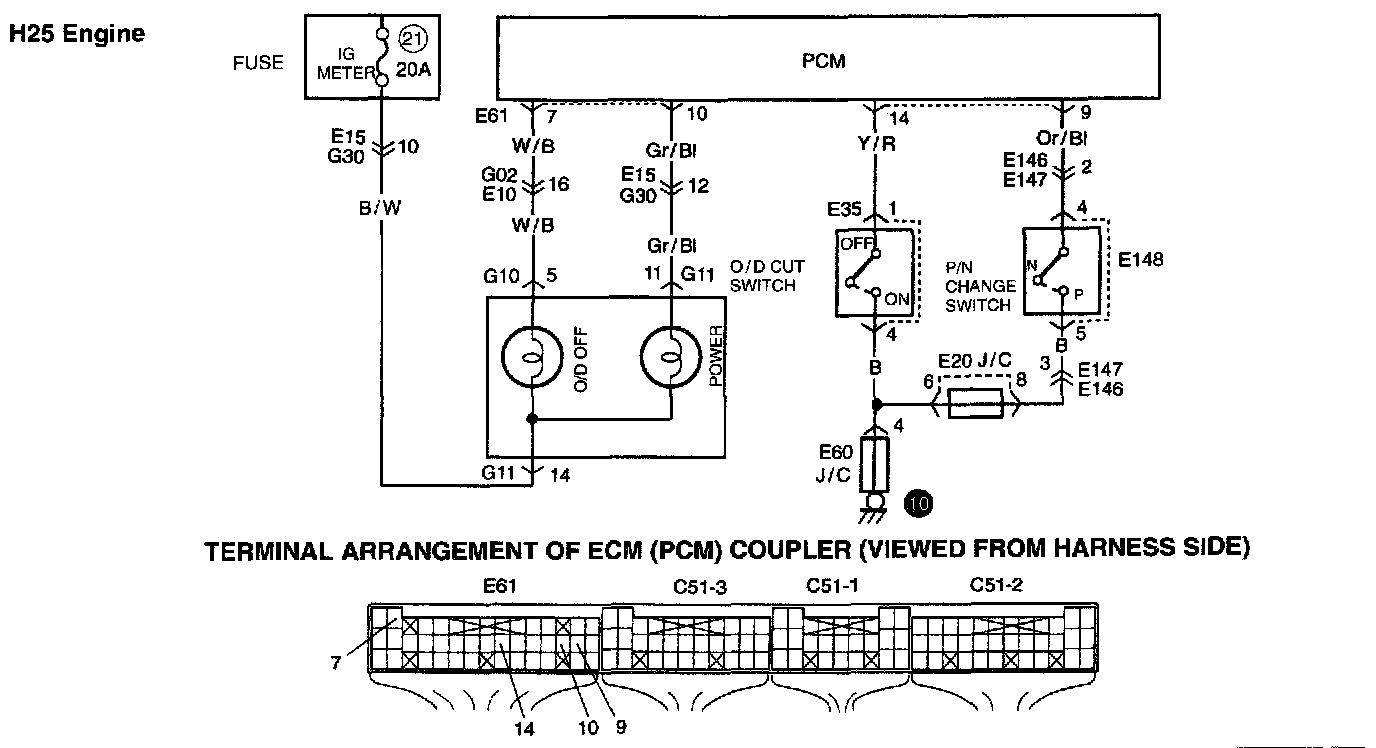

WIRING DIAGRAM





TROUBLESHOOTING
