Table B-2: "O/D Off" Light Circuit Check (Light on Steadily)

DIAGNOSTIC FLOW TABLE B-2
"O/D OFF" LIGHT CIRCUIT CHECK
("O/D OFF" LIGHT COMES ON STEADILY)
WIRING DIAGRAM
Refer to Table B-1.

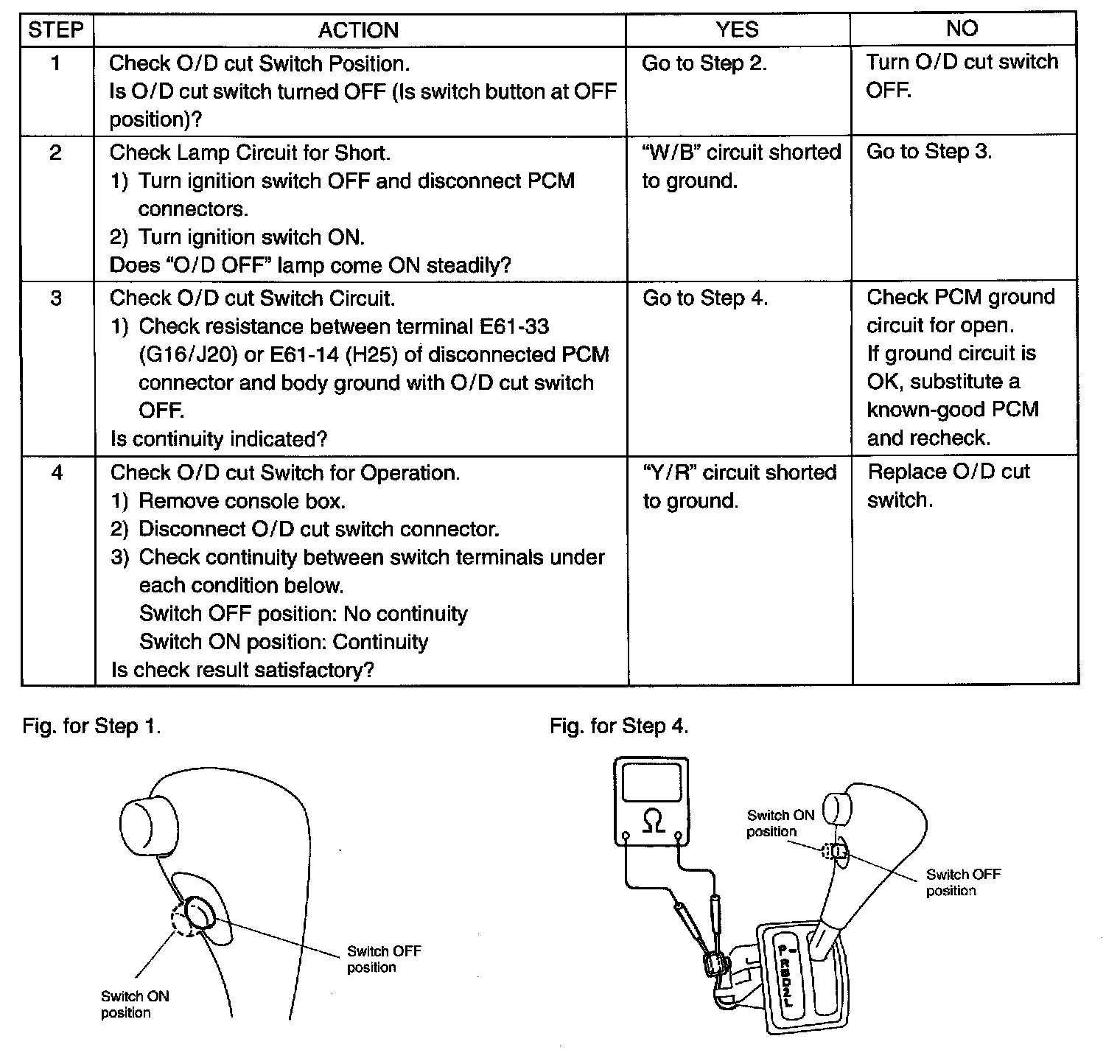

TROUBLESHOOTING
