Table A-1: No TCC Lockup Occurs

DIAGNOSTIC FLOW TABLE A-1 (NO TCC LOCK-UP OCCURS)
SYSTEM DESCRIPTION
PCM turns TCC solenoid OFF under any of the following conditions.
^ Brake pedal switch: ON
^ 4WD LOW switch: ON
^ Cruise control module: TCC OFF command signal is output.
^ ECT: ECT < 30°C (86 °F)

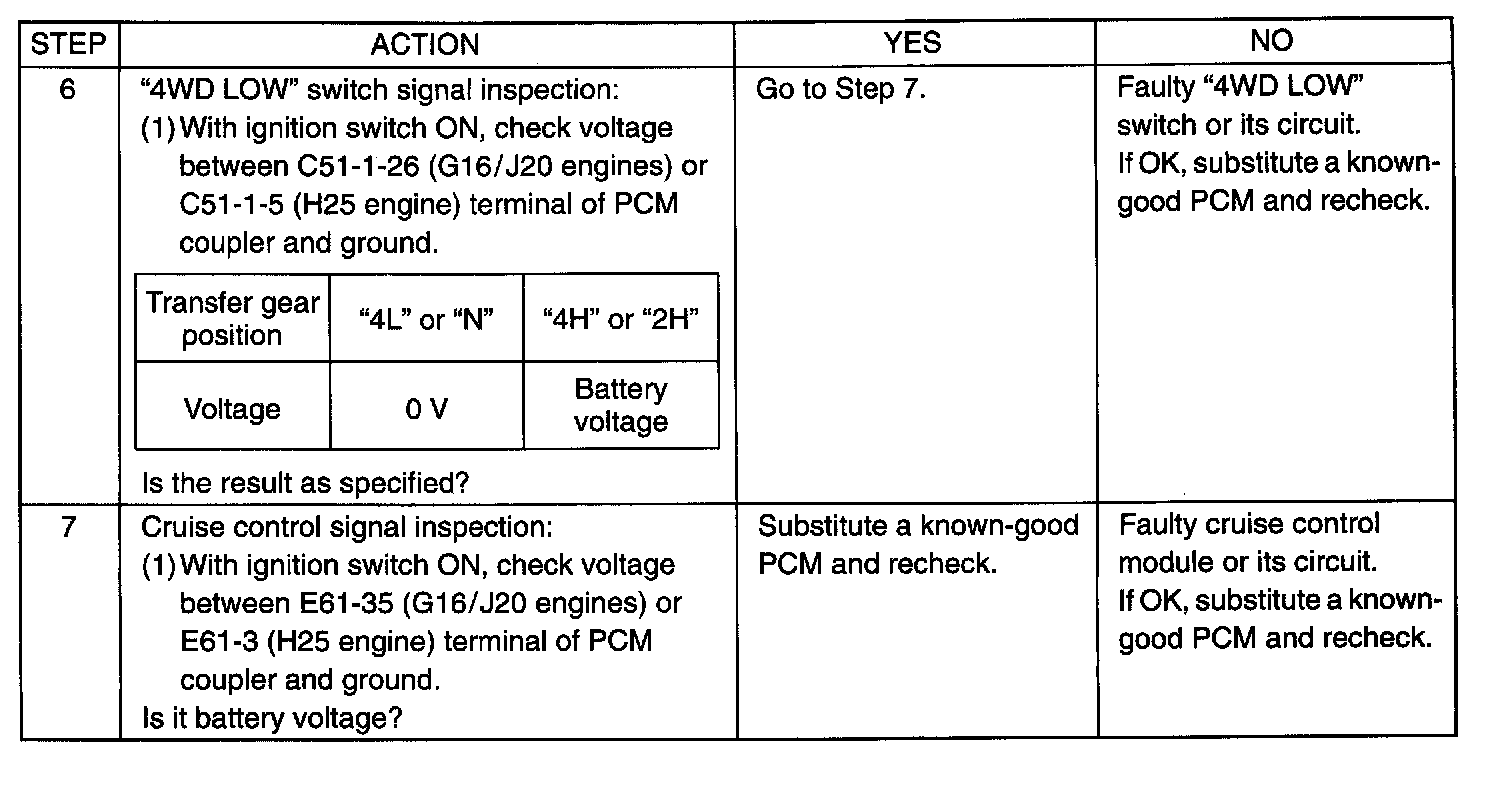

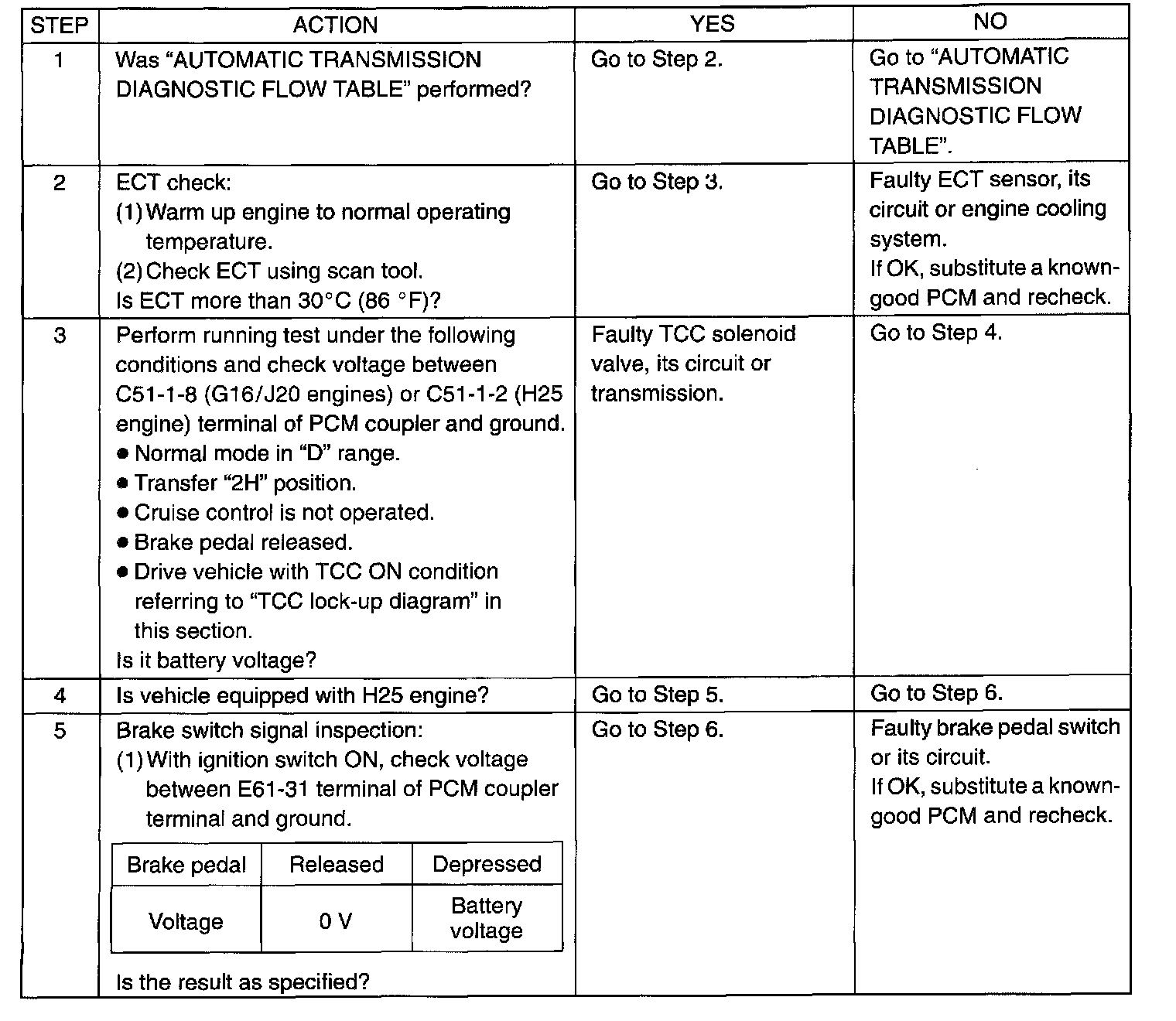

TROUBLESHOOTING

WARNING:
^ When performing a road test, select a place where there is no traffic or possibility of a traffic accident and very careful during to avoid occurrence of an accident.
^ Road test should be carried out with 2 person, a driver and tester, on a level road.
