Fuel Pressure Inspection

TABLE B-3 FUEL PRESSURE INSPECTION




SYSTEM DIAGRAM

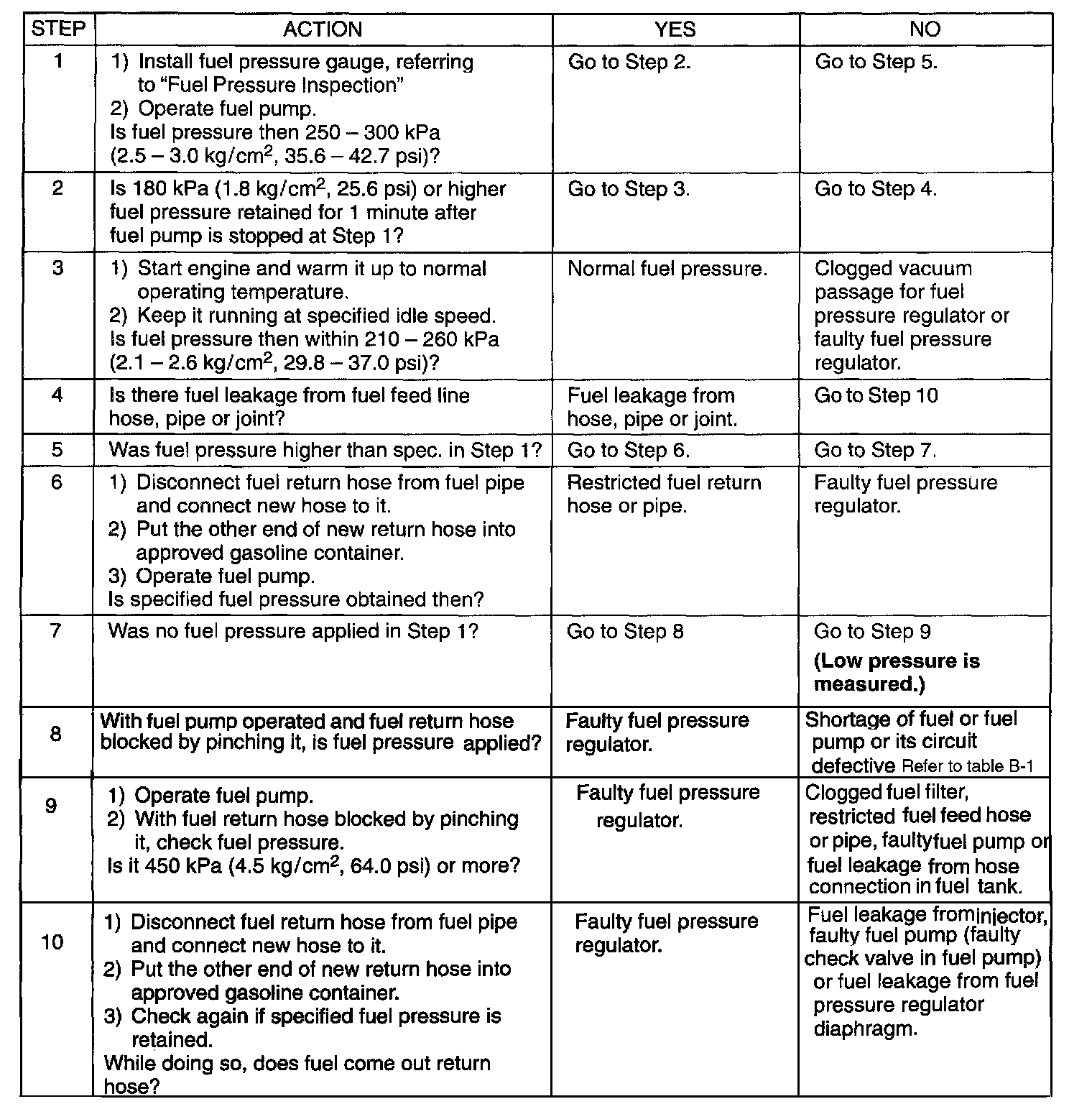

INSPECTION

NOTE: Before using following flow table, check to make sure that battery voltage is higher than 11 V. If battery voltage is low, pressure becomes lower than specification even if fuel pump and line are in good condition.
