Fuse: Application and ID

The chart shows the circuits protected by each fuse.

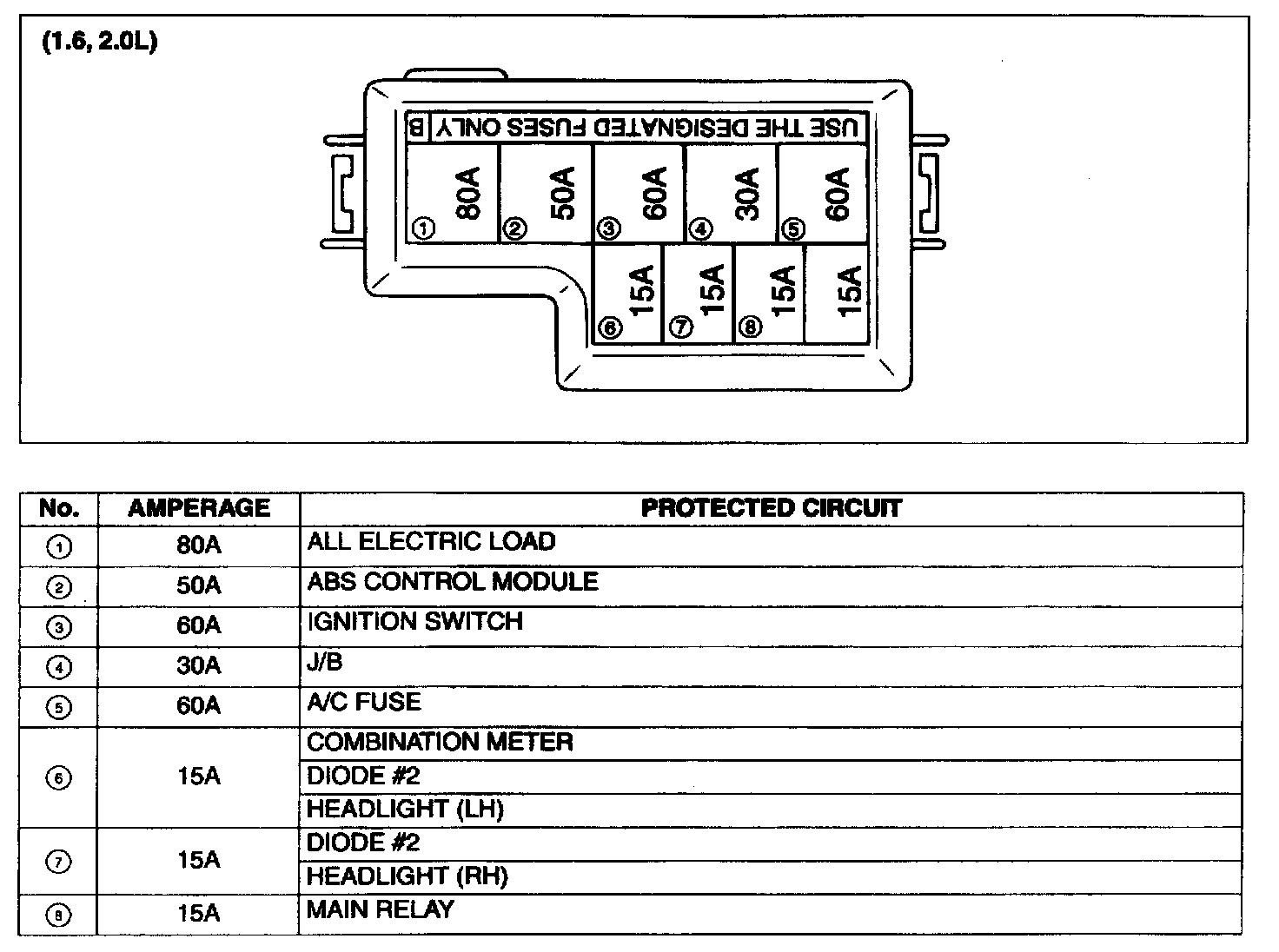

Fuses In Main Fuse Box (No. 1 - 8):

Fuses In Main Fuse Box:

FUSES IN MAIN FUSE BOX

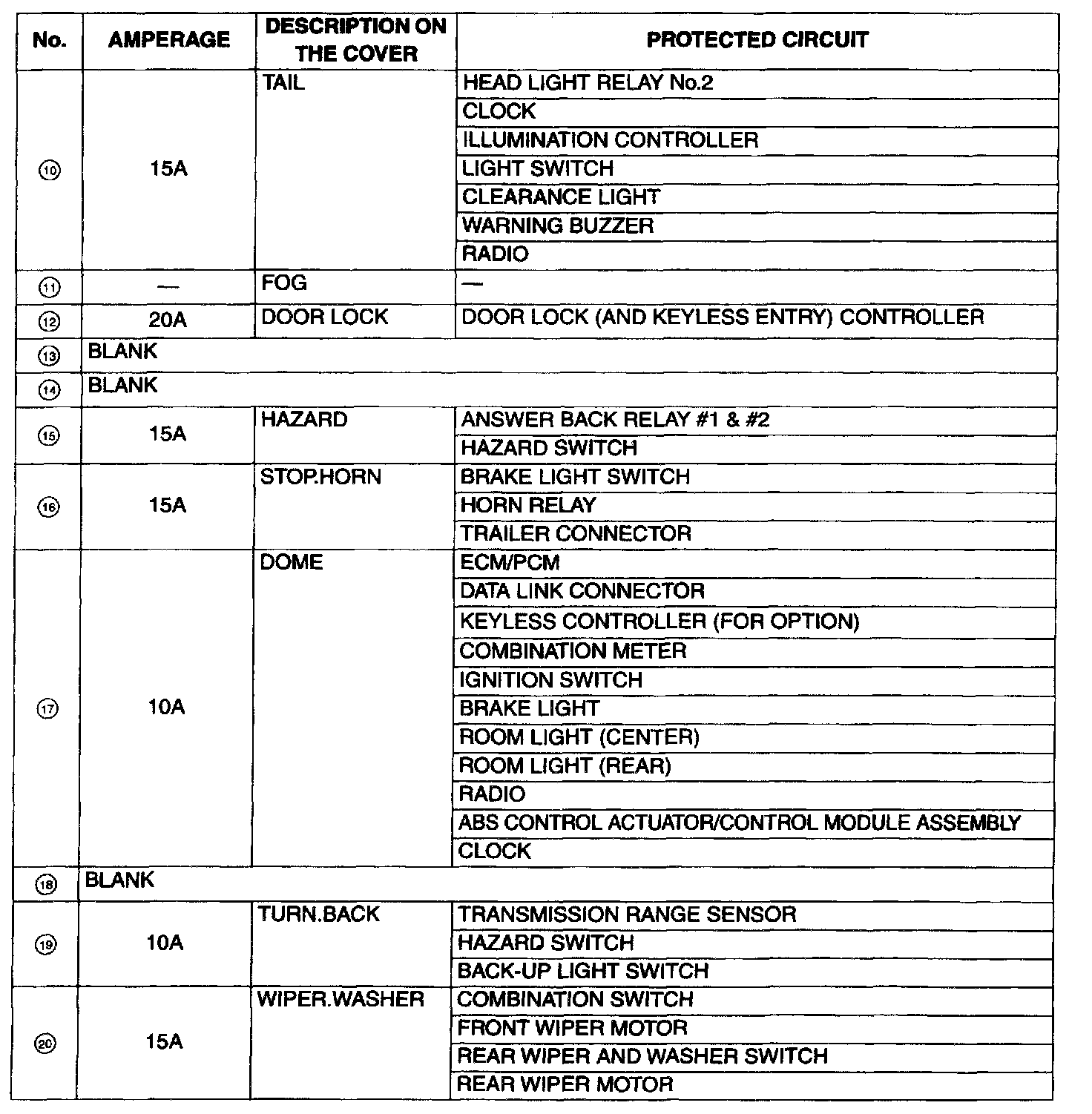

Fuses In Main Fuse Box (No. 10 - 20) Part 1:

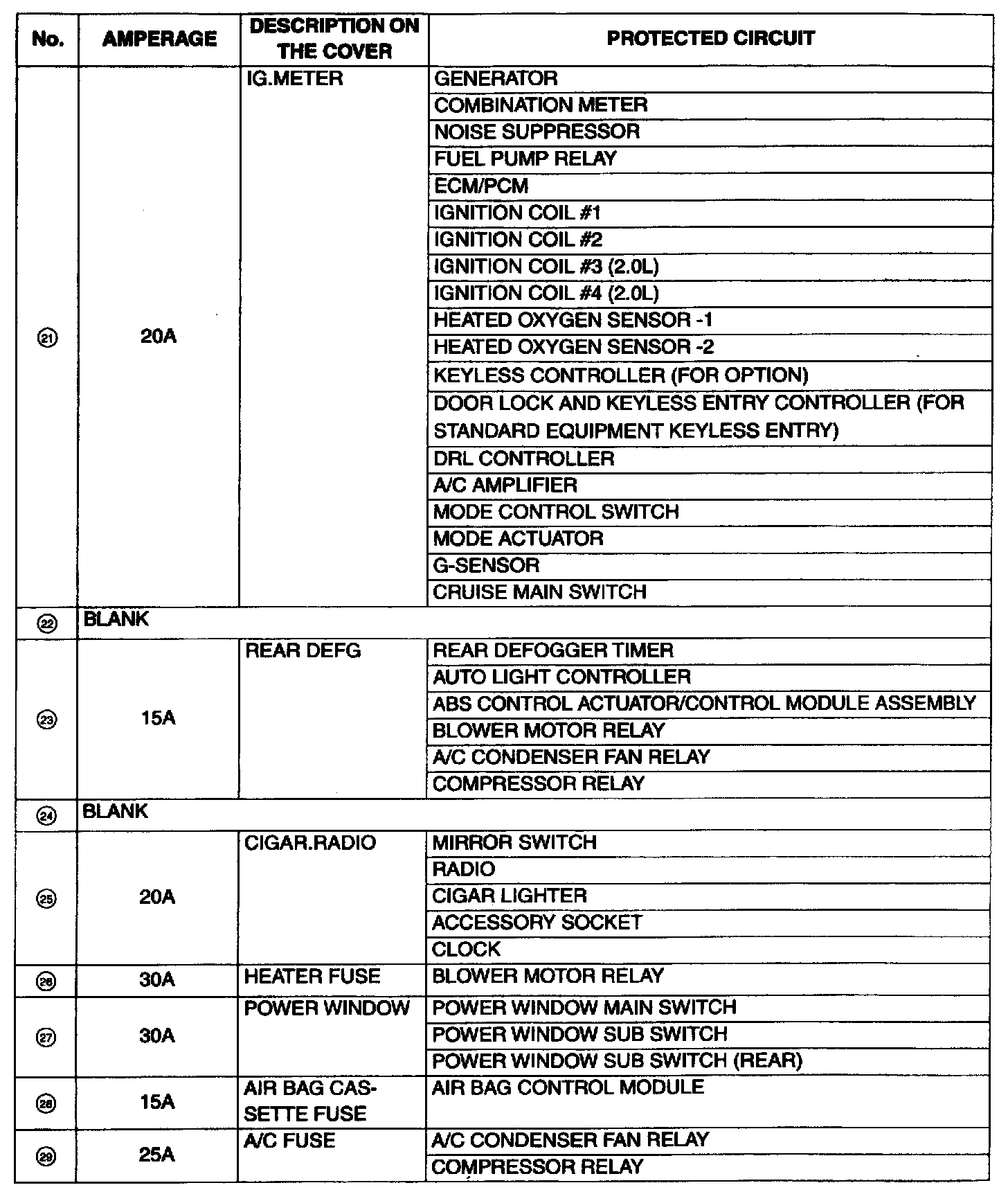

Fuses In Main Fuse Box (No. 21 - 29) Part 2:

(A) '99, '00MY ONLY
(B) '01MY ONLY
