Component Tests and General Diagnostics
CRUISE MAIN SWITCH INDICATOR LAMP CIRCUIT CHECK

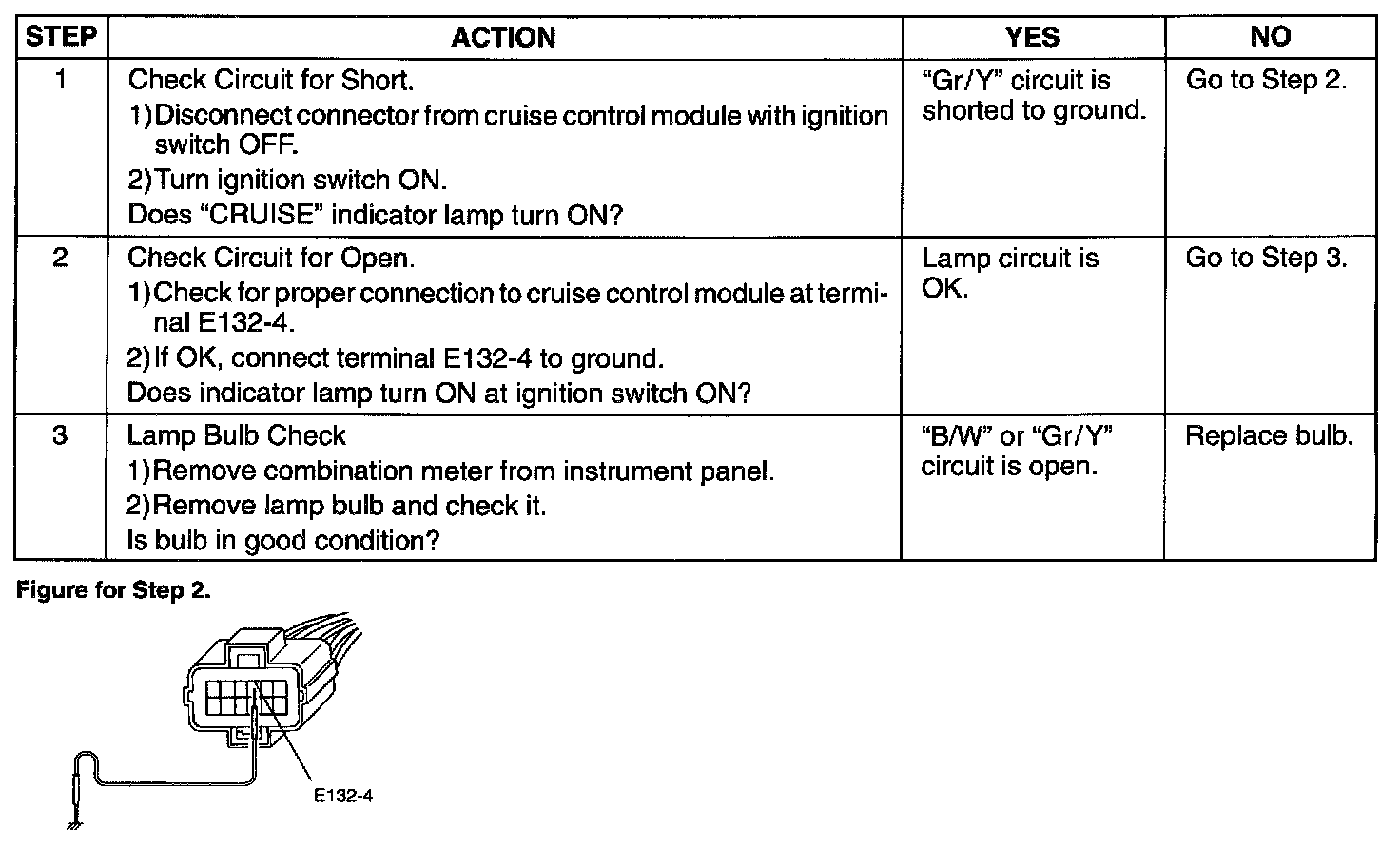

"CRUISE" INDICATOR LAMP CIRCUIT CHECK

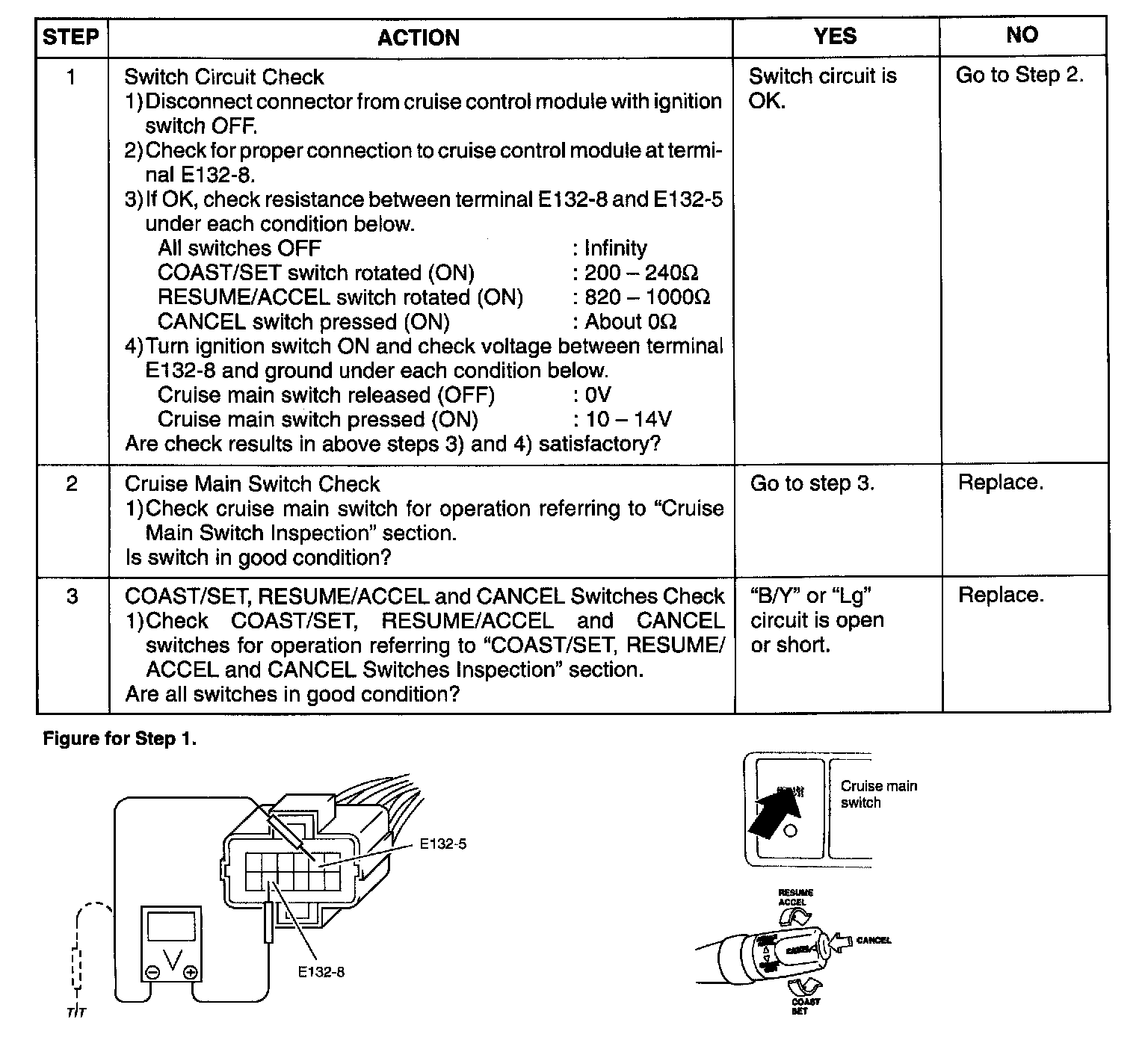

CRUISE MAIN SWITCH, COAST/SET, RESUME/ACCEL AND CANCEL SWITCHES CIRCUIT CHECK

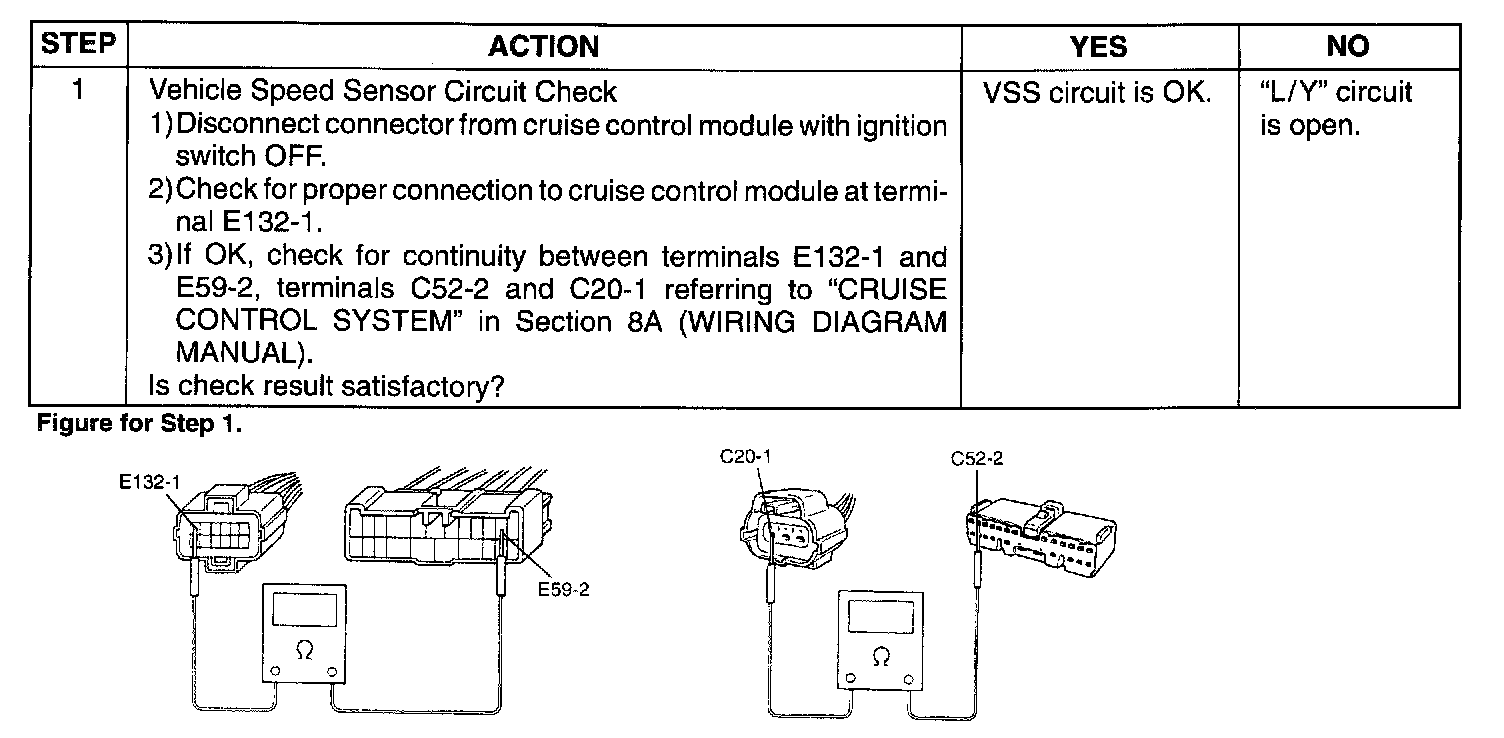

VEHICLE SPEED SENSOR (VSS) CIRCUIT CHECK
STOP LAMP SWITCH (WITH PEDAL POSITION SWITCH) CIRCUITS CHECK

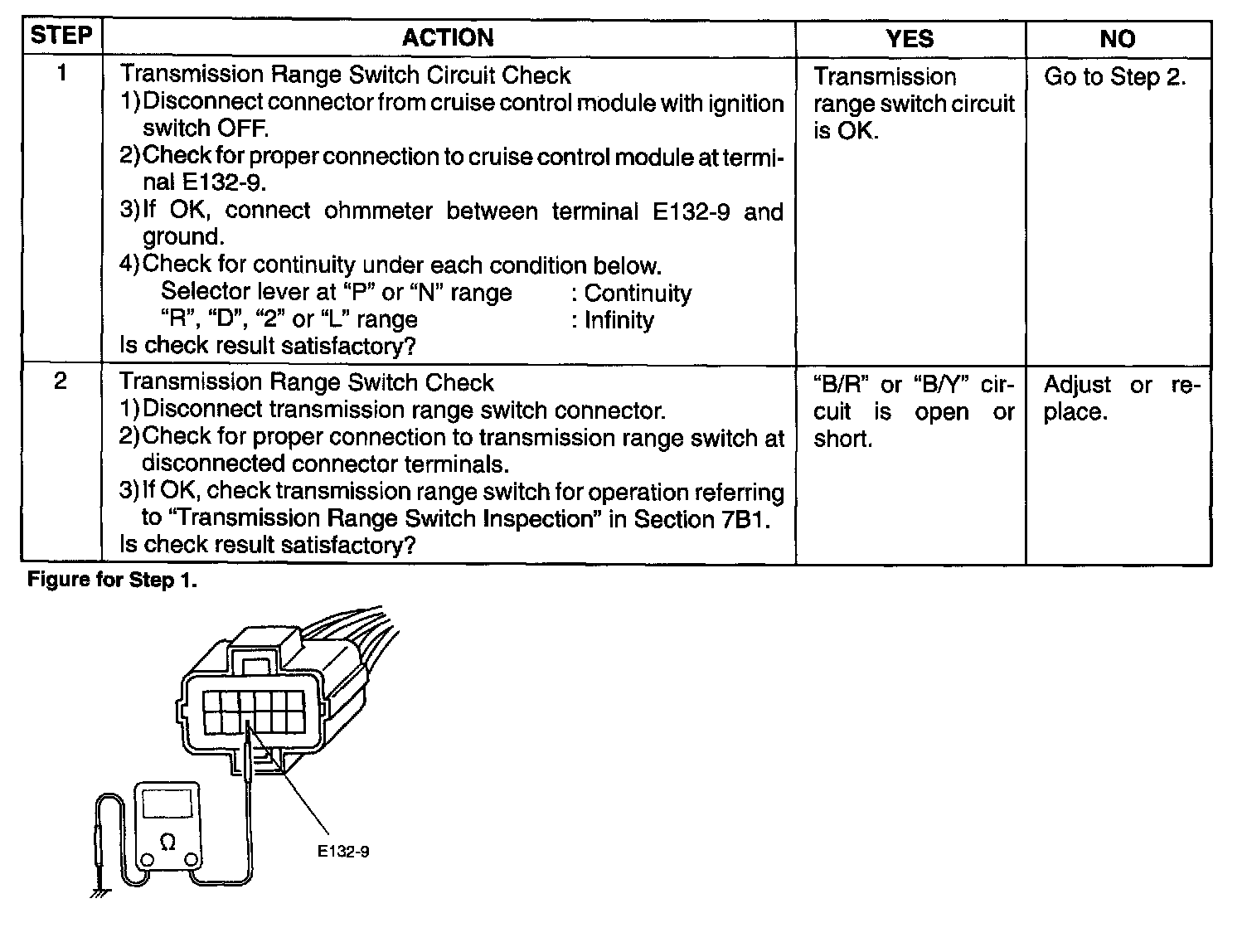

TRANSMISSION RANGE SWITCH (PARK/NEUTRAL POSITION SWITCH) CIRCUIT CHECK

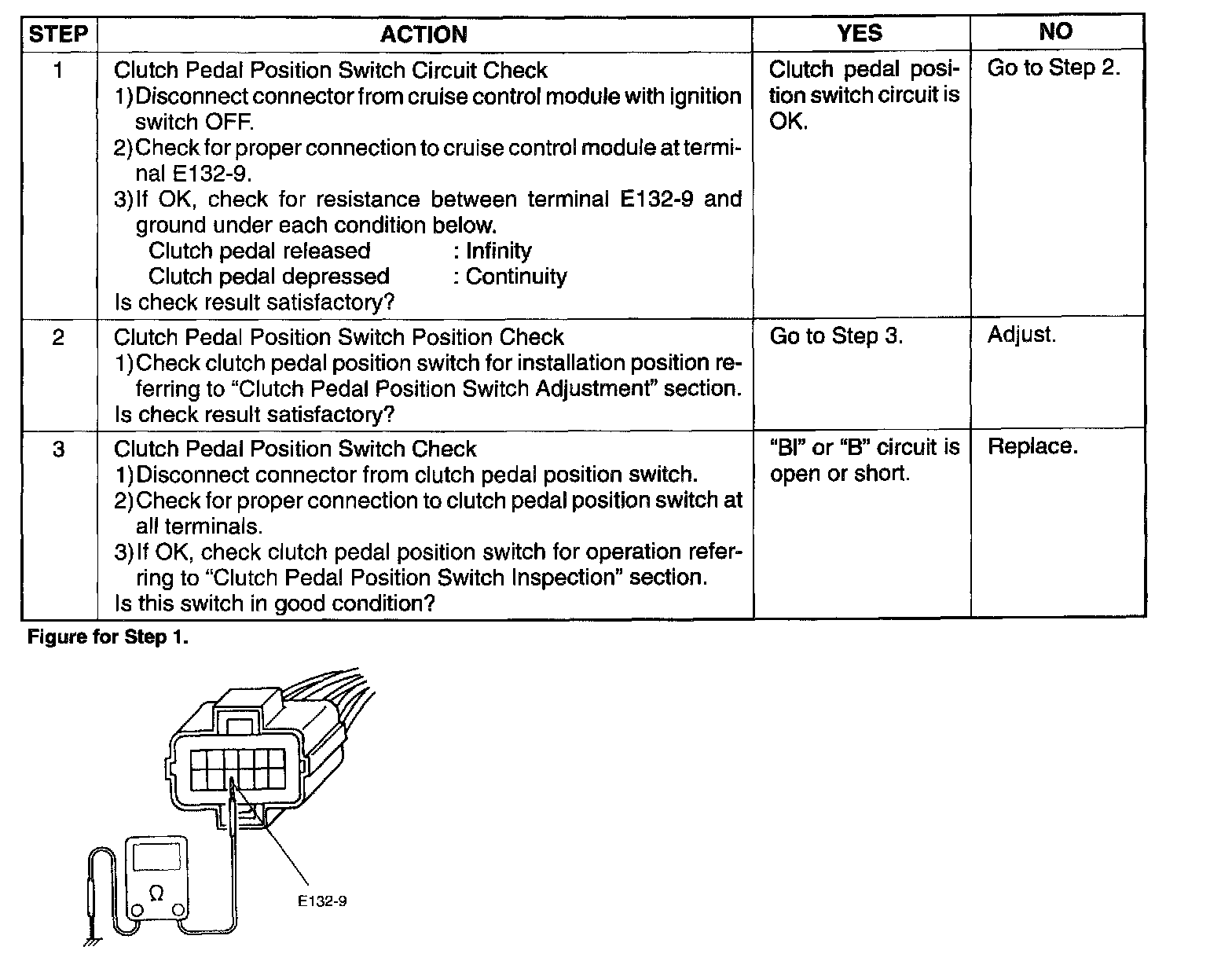

CLUTCH PEDAL POSITION SWITCH CIRCUIT CHECK
THROTTLE VALVE OPENING SIGNAL CIRCUIT CHECK
OVERDRIVE AND TCC OFF COMMAND SIGNAL CIRCUIT CHECK
CRUISE CONTROL MODULE POWER AND GROUND CIRCUITS CHECK
