Service Valve Locations

SERVICE VALVE LOCATIONS

Vehicle

High

Low

Acura

Integra

⁽¹⁾

⁽²⁾

SLX

⁽³⁾

⁽⁴⁾

2.3CL

⁽³⁾

⁽⁴⁾

3.0CL

⁽¹⁾

⁽⁴⁾

3.2TL

⁽¹⁾

⁽⁴⁾

3.5RL

⁽⁶⁾

⁽⁴⁾

Audi

Except A8

⁽⁷⁾

⁽⁷⁾

A8

⁽¹⁶⁾

⁽⁴⁾

BMW

⁽⁸⁾

⁽⁹⁾

Honda

Accord

⁽¹⁾

⁽⁴⁾

Civic

⁽¹⁰⁾

⁽¹⁰⁾

CR-V

⁽¹¹⁾

⁽²⁾

Odyssey

⁽¹⁰⁾

⁽¹⁰⁾

Passport

⁽¹²⁾

⁽¹³⁾

Prelude

⁽¹⁾

⁽²⁾

Hyundai

Accent

⁽³⁾

⁽⁵⁾

Elantra

⁽¹⁴⁾

⁽⁴⁾

Sonata

⁽¹⁴⁾

⁽⁴⁾

Tiburon

⁽¹⁴⁾

⁽⁴⁾

Infiniti

⁽¹⁴⁾

⁽⁴⁾

Isuzu

Amigo & Rodeo

⁽¹²⁾

⁽¹³⁾

Hombre

⁽³⁾

⁽⁴⁾

Oasis

⁽¹⁰⁾

⁽¹⁰⁾

Trooper

⁽³⁾

⁽⁴⁾

Vehi-Cross

⁽¹¹⁾

⁽¹³⁾

Jaguar

⁽⁶⁾

⁽⁴⁾

Kia

⁽³⁾

⁽⁴⁾

Land Rover

Discovery

⁽³⁾

⁽⁴⁾

Range Rover

⁽⁸⁾

⁽⁴⁾

Lexus

ES300, GS300, GS400, SC300 & SC400

⁽¹⁶⁾

⁽⁴⁾

LS400

⁽⁶⁾

⁽⁴⁾

LX470

⁽¹⁰⁾

⁽⁴⁾

RX300

⁽¹⁶⁾

⁽⁸⁾

Mazda

B2300, B3000 & B4000

⁽¹⁴⁾

⁽⁶⁾

Miata

⁽⁸⁾

⁽⁴⁾

Millenia

⁽¹⁴⁾

⁽⁴⁾

Protege

⁽³⁾

⁽⁴⁾

626

⁽¹⁵⁾

⁽⁴⁾

Mercedes-Benz

⁽¹⁶⁾

⁽⁶⁾

Mitsubishi

Diamante

⁽³⁾

⁽⁴⁾

Eclipse

⁽³⁾

⁽⁴⁾

Galant

⁽³⁾

⁽⁴⁾

Mirage

⁽³⁾

⁽⁴⁾

Montero

⁽⁶⁾

⁽⁶⁾

Montero Sport

⁽³⁾

⁽⁴⁾

3000GT

⁽¹⁾

⁽⁴⁾

Nissan

Altima

⁽³⁾

⁽⁴⁾

Frontier

⁽¹⁴⁾

⁽⁴⁾

Maxima

⁽¹⁴⁾

⁽⁴⁾

Pathfinder

⁽¹⁴⁾

⁽⁴⁾

Quest

⁽¹¹⁾

⁽¹⁷⁾

Sentra & 200SX

⁽³⁾

⁽⁴⁾

Porsche

911

⁽⁸⁾

⁽⁹⁾

Saab

⁽⁶⁾

⁽²⁾

Subaru

⁽¹⁸⁾

⁽¹⁸⁾

Suzuki

Esteem

⁽¹⁴⁾

⁽⁴⁾

Vitara & Grand Vitara

⁽⁶⁾

⁽²⁾

Swift

⁽³⁾

⁽⁴⁾

Toyota

Avalon

⁽¹⁾

⁽⁴⁾

Camry, Camry Solara & Celica

⁽¹⁶⁾

⁽⁴⁾

Corolla

⁽¹⁴⁾

⁽⁴⁾

Land Cruiser

⁽¹⁰⁾

⁽⁴⁾

RAV4

⁽¹⁰⁾

⁽¹³⁾

Sienna

⁽⁶⁾

⁽²⁾

Tacoma

⁽⁷⁾

⁽⁷⁾

4Runner

⁽¹⁶⁾

⁽⁷⁾

Volkswagen

Except Beetle

⁽⁷⁾

⁽⁷⁾

Beetle

⁽²⁰⁾

⁽²⁰⁾

Volvo

C70, S70 & V70

⁽¹⁹⁾

⁽¹⁹⁾

S80

⁽²⁰⁾

⁽²⁰⁾

⁽¹⁾	On high pressure line, near receiver-drier.

⁽²⁾	On low pressure line, near top of condenser.

⁽³⁾	On high pressure line, between accumulator/receiver-drier and evaporator.

⁽⁴⁾	On low pressure line, between evaporator and compressor.

⁽⁵⁾	On low pressure line, near compressor.

⁽⁶⁾	On top of accumulator/receiver-drier.

⁽⁷⁾	On thin evaporator inlet (high pressure) line or thick outlet (low pressure) line.

⁽⁸⁾	On high pressure hose/line.

⁽⁹⁾	On low pressure hose/line.

⁽¹⁰⁾	On top of condenser, on right side.

⁽¹¹⁾	On high pressure (thin) line, at rear of engine compartment. On Honda Passport or Isuzu Rodeo, See Fig 2.

⁽¹²⁾	On high pressure outlet at compressor. On Honda CR-V, See Fig 1.

⁽¹³⁾	On low pressure (thick) line, at rear of engine compartment.

⁽¹⁴⁾	On high pressure line, between compressor and condenser.

⁽¹⁵⁾	On high pressure hose/line between condenser and evaporator.

⁽¹⁶⁾	In front of condenser.

⁽¹⁷⁾	On low pressure line, between accumulator and compressor.

⁽¹⁸⁾	On high and low pressure lines, near compressor.

⁽¹⁹⁾	On low pressure line, near receiver-drier. Volvo uses only one service valve.

⁽²⁰⁾	Information is not available from manufacturer.

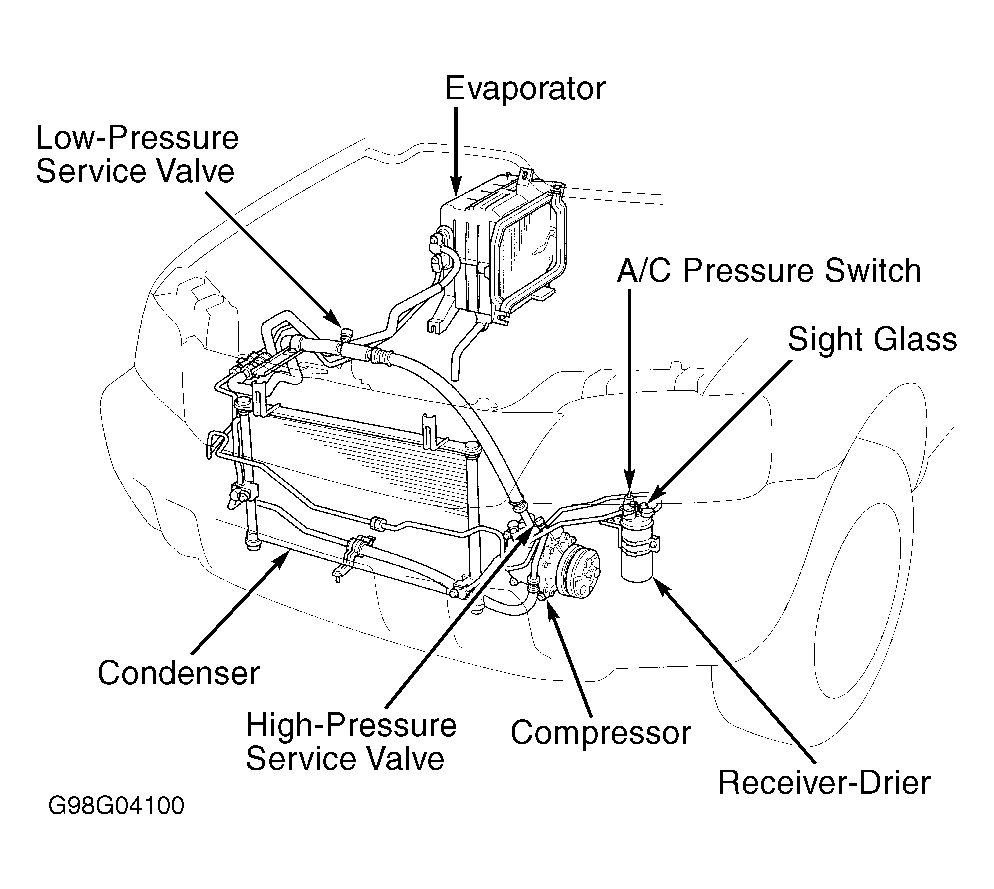

Fig 1: Locating A/C System Components (CR-V)

G98G04100

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

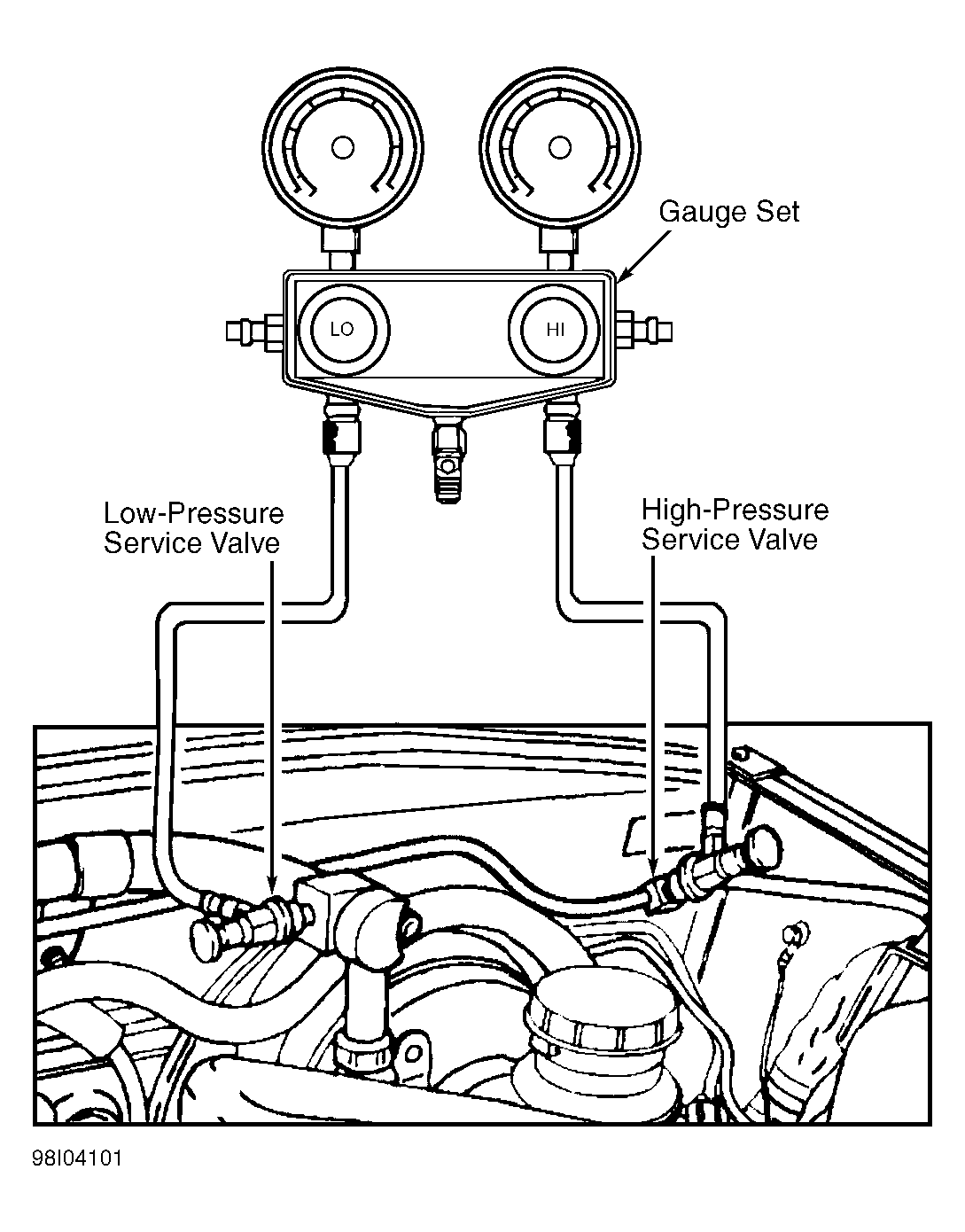

Fig 2: Locating Service Valves (Passport & Rodeo)

G98I04101

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
