Motor Operational Test (Swift)

Disconnect rear wiper motor harness connector. Connect positive battery voltage to Orange wire at wiper motor. See Fig 1 . Connect ground to Black wire at wiper motor. Motor should operate at approximately 40-50 RPM. If motor does not operate or RPM is not within specification, replace rear wiper motor.

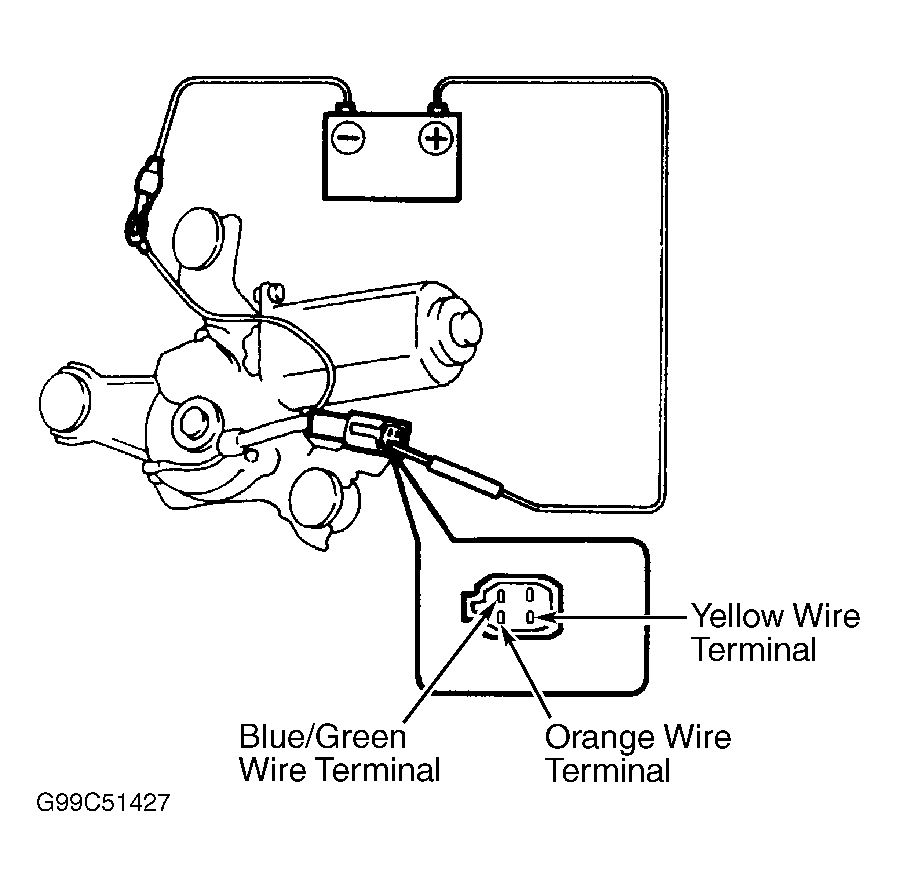

Fig 1: Identifying Rear Wiper Motor Connector Terminals (Swift)

Courtesy of SUZUKI OF AMERICA CORP.
