Front Wiper and Washer Switch (In Combination Switch)

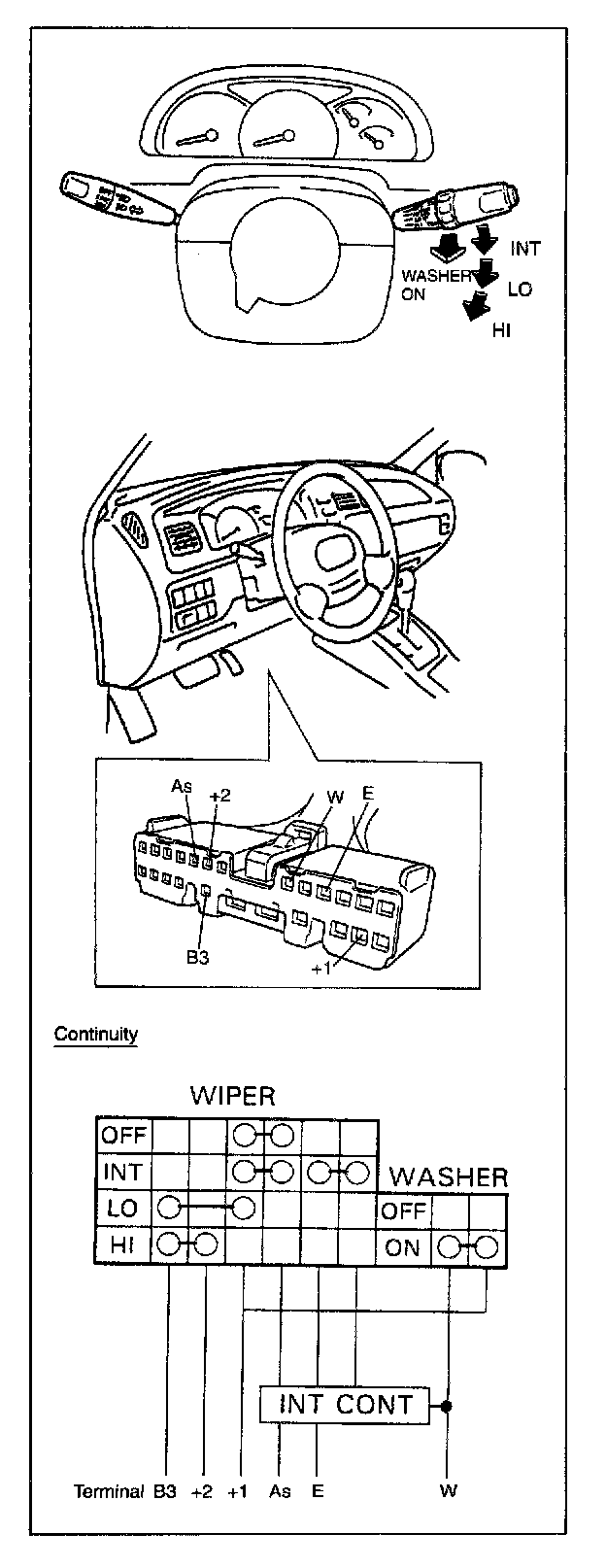

Front Wiper and Washer Switch (in Combination Switch)
1. Disconnect negative cable at battery.
2. Disconnect combination switch lead wire coupler.
3. Use a circuit tester to check the continuity at each switch position. If any continuity is not obtained, replace switch.
