Transmission Mount: Service and Repair

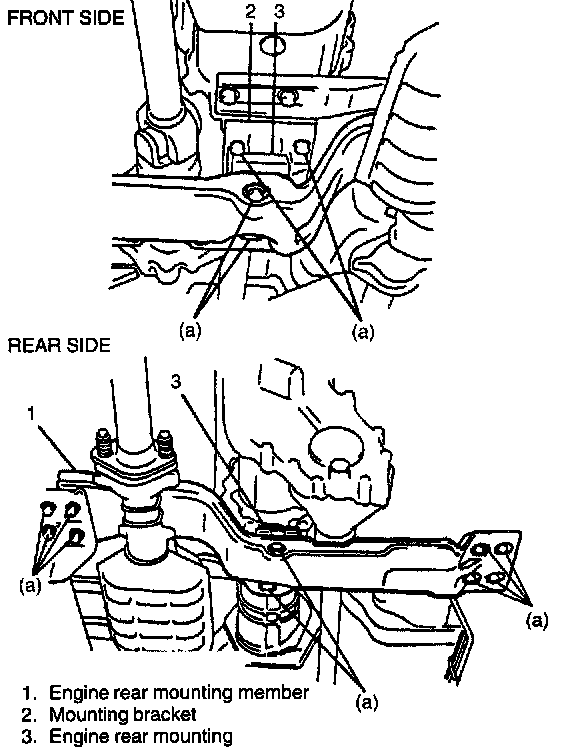

ENGINE REAR MOUNTING





When replacement of mounting parts are necessary, torque bolts and nut as specified below.
Tightening Torque (a): 50 Nm (5.0 kg-m, 36.5 ft. lbs.)
