Table B-1

DIAGNOSTIC FLOW TABLE B1 "O/D OFF" LIGHT CIRCUIT CHECK
("O/D OFF" LIGHT DOES NOT LIGHT FOR 4 SEC. AFTER IGNITION SWITCH ON.)

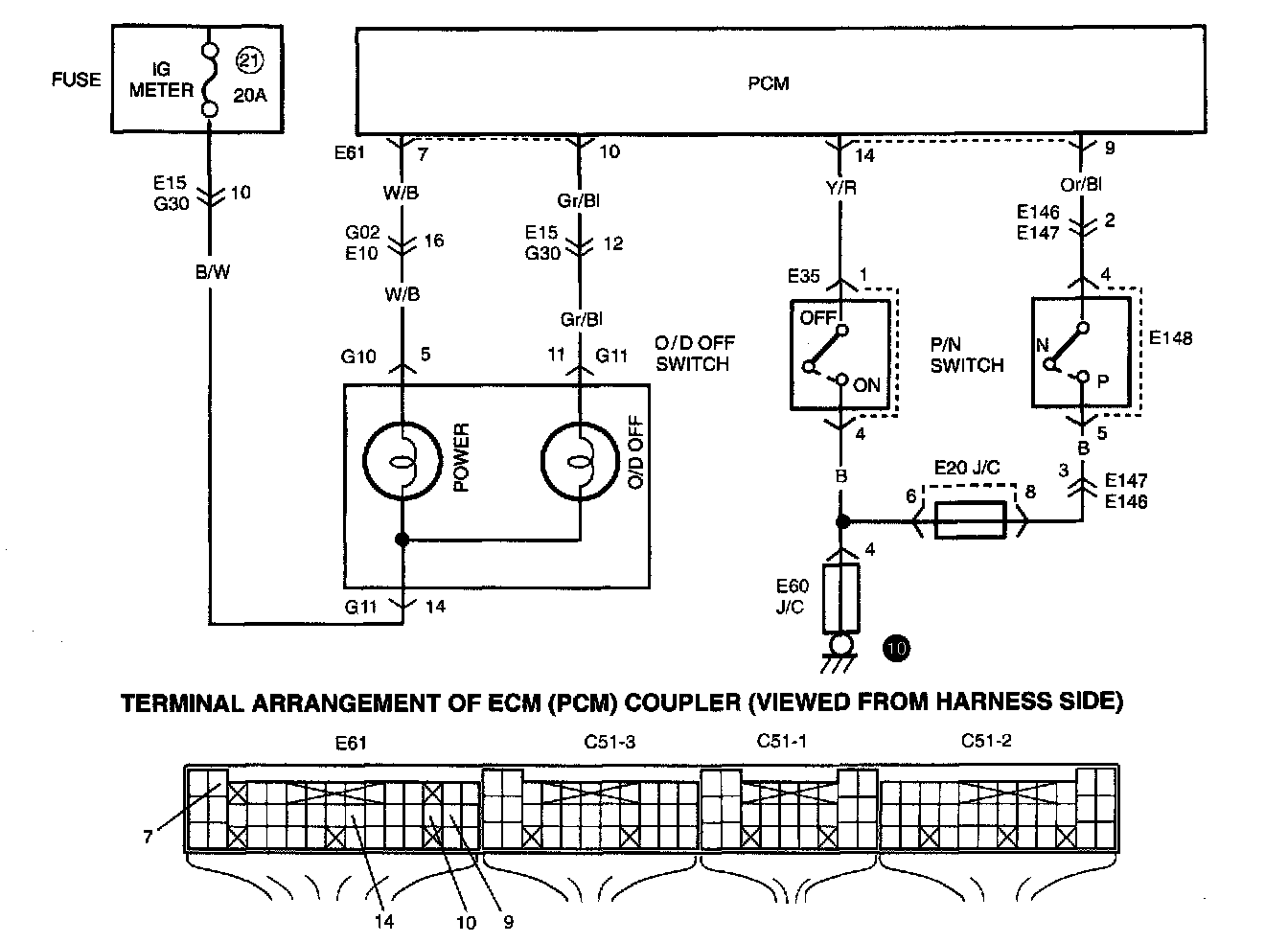

WIRING DIAGRAM





DTC TROUBLESHOOTING
