Table A-2

DIAGNOSTIC FLOW TABLE A2 (NO GEAR SHIFT TO O/D)
SYSTEM DESCRIPTION
PCM does not shift to O/D gear under following conditions.
^ O/D OFF switch: ON
^ 4WD LOW switch: ON
^ Cruise control: operated
^ ECT: ECT < 30°C

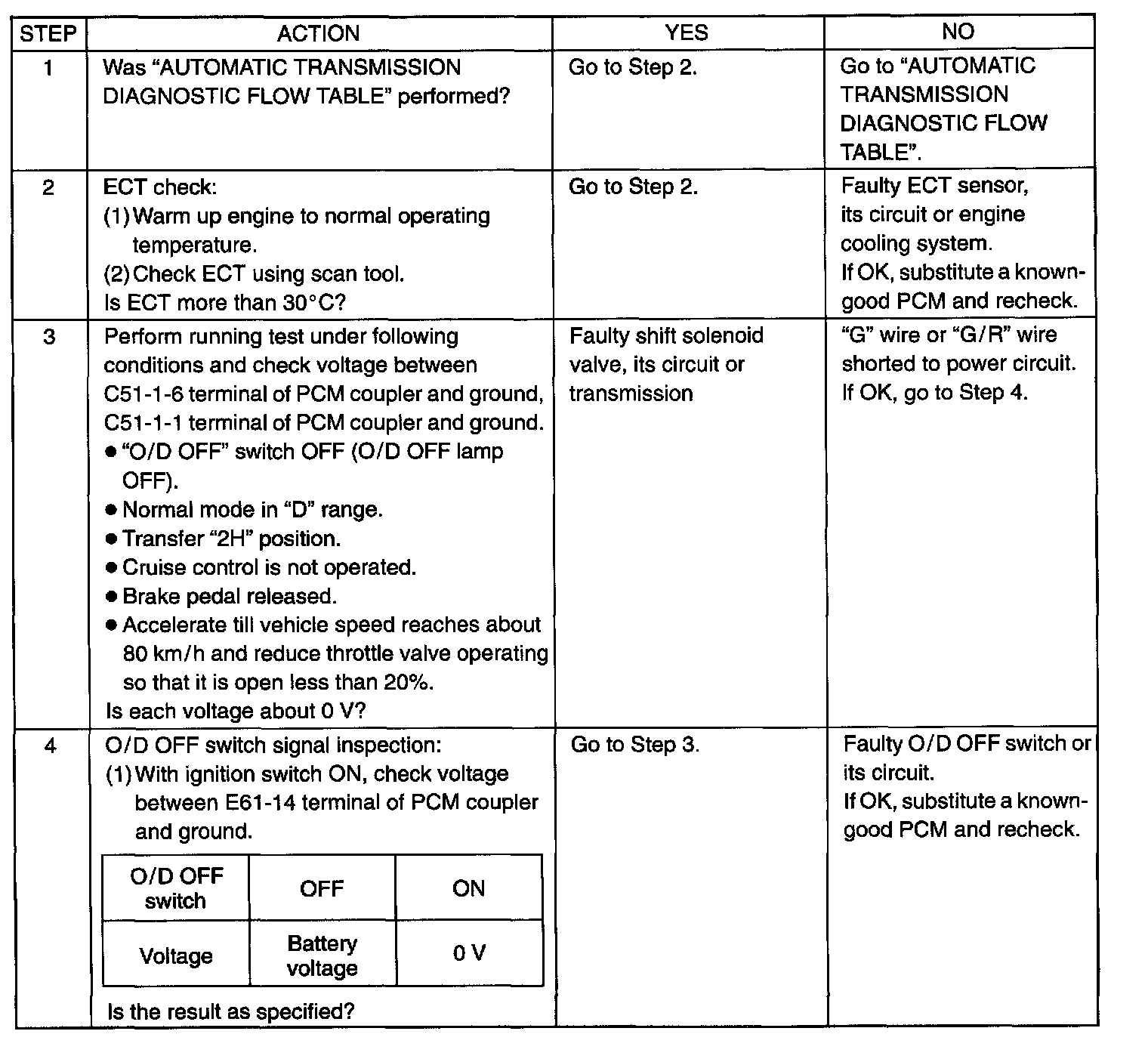

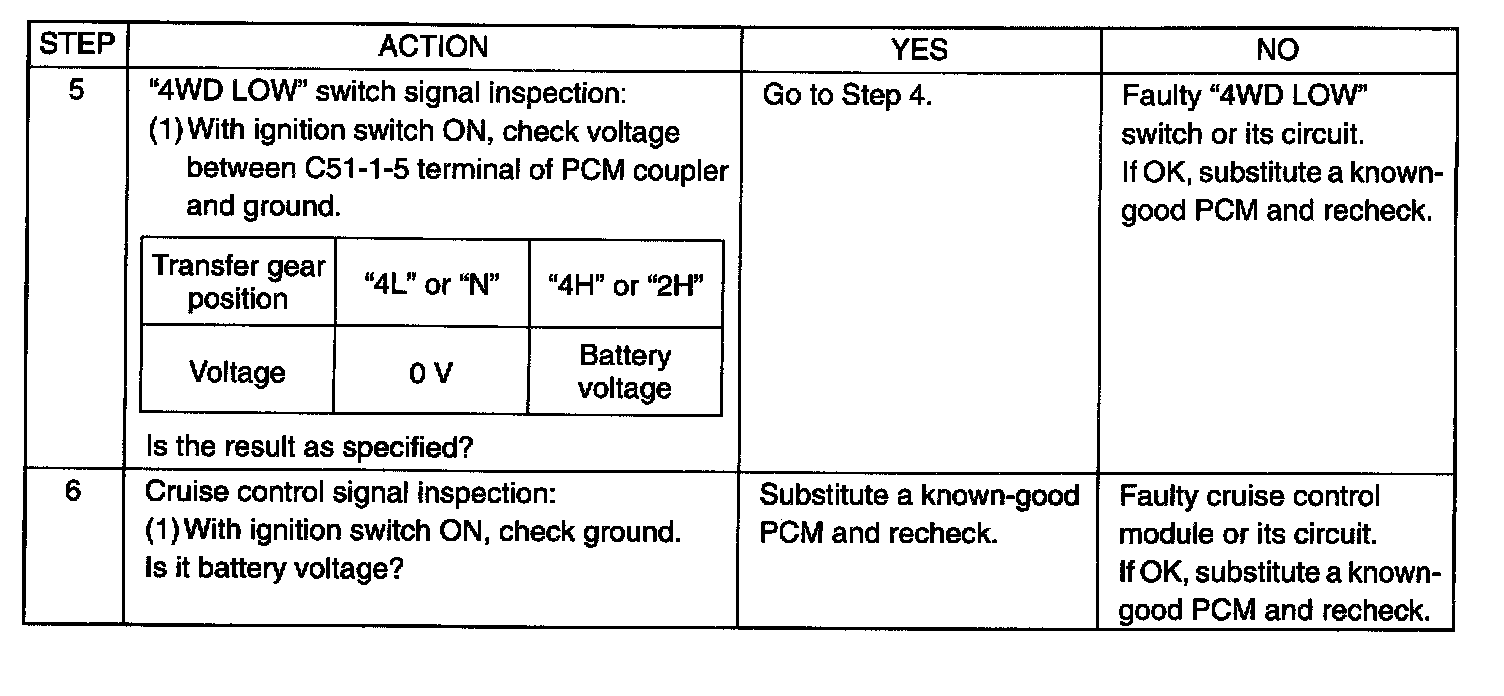

TROUBLESHOOTING

WARNING:
^ When performing a road test, select a place where there is no traffic or possibility of a traffic accident and very careful during to avoid occurrence of an accident.
^ Road test, should be carried out with 2 person, a driver and tester, on a level road.
