Table A-1

DIAGNOSTIC FLOW TABLE A1 (NO TCC LOCK-UP OCCURS)
SYSTEM DESCRIPTION
PCM operates TCC solenoid OFF under following conditions.
^ Brake switch: ON
^ 4WD LOW switch: ON
^ Cruise control: operated
^ ECT: ECT < 30°C

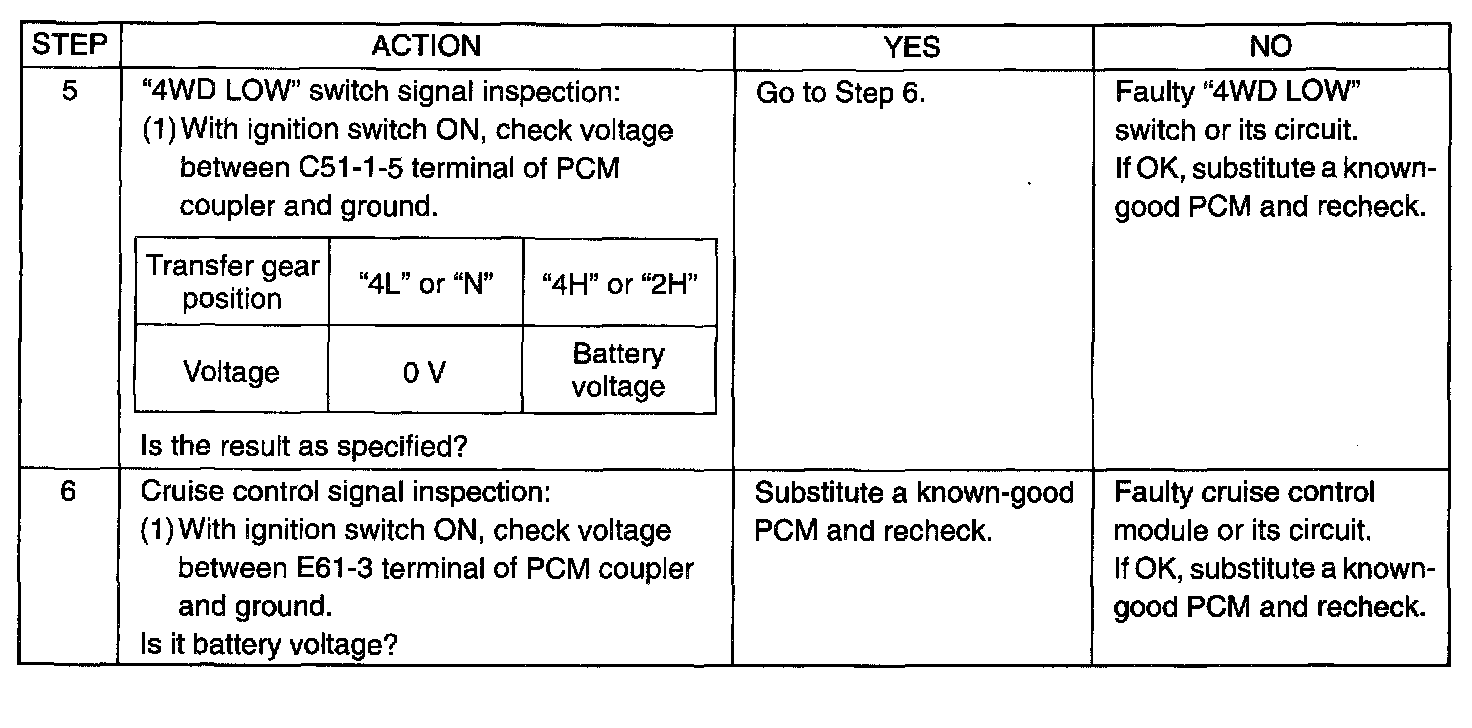

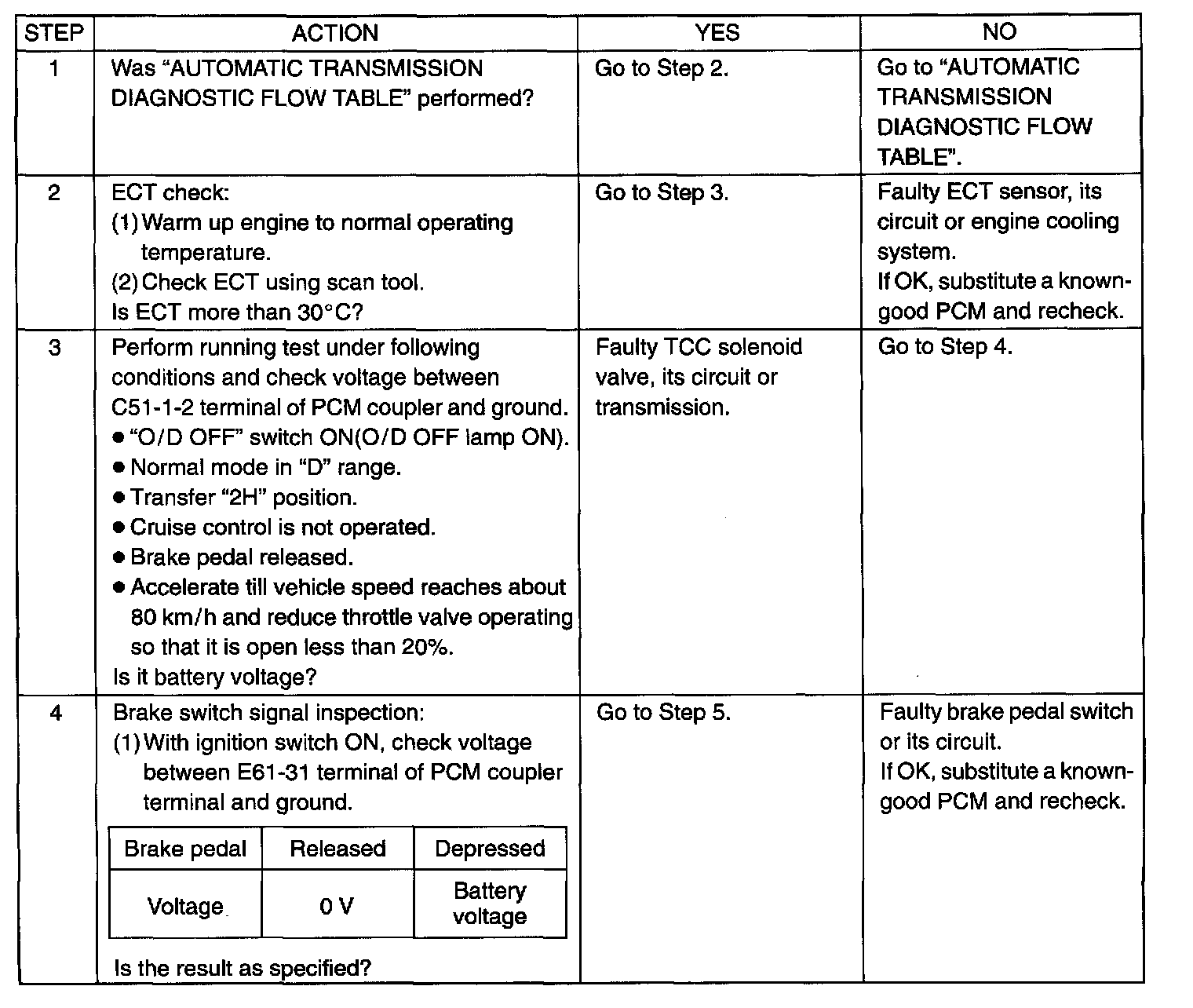

TROUBLESHOOTING

WARNING:
^ When performing a road test, select a place where there is no traffic or possibility of a traffic accident and very careful during to avoid occurrence of an accident.
^ Road tests should be carried out with 2 persons a driver and tester, on a level road.
