Exhaust Manifold Bolts - Installation Update
TSB No. TS 06-03 04100Section Title: Engine
Division: Automotive
Category: Technical
SUBJECT:
SERVICE MANUAL UPDATE ON EXHAUST MANIFOLD BOLT INSTALLATION
MODEL:
GRAND VITARA (SQ625)
YEAR:
1999 AND 2000
CONDITION:

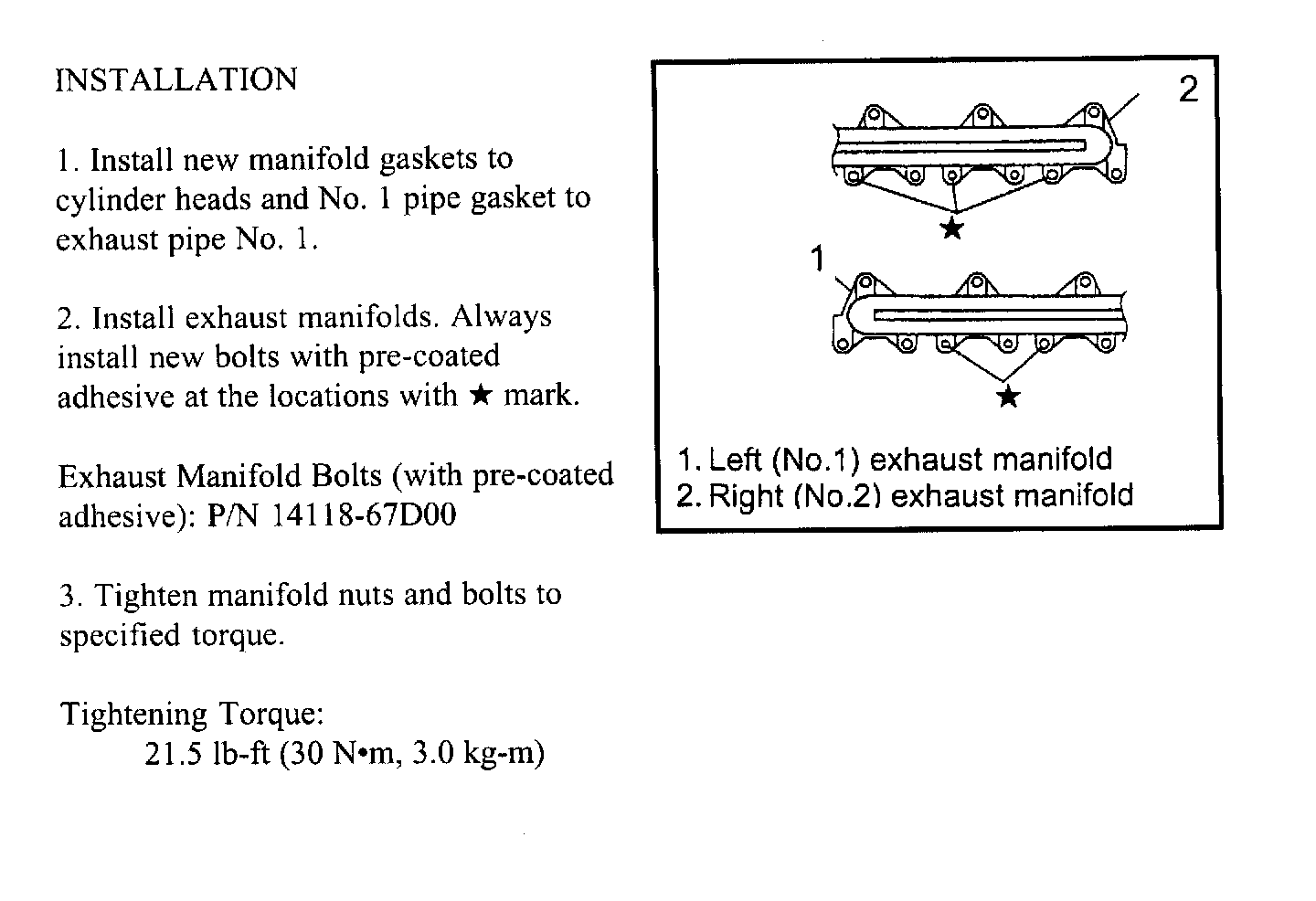

The installation instructions for the exhaust manifold bolts in the 1999 and 2000 SQ625 Service Manuals are incorrect. An instruction to use the sealed bolts has been added.
CAUSE:
N/A
CORRECTION:
Update your service manuals with the information shown.
RELATED SERVICE MANUAL AND PAGE:
5Q625 SERVICE MANUAL (99500-67D00-33E) PAGE 6A2-15
5Q416/5Q420/5Q625 SERVICE MANUAL (99500-65D10-33E) PAGE 6A2-15
NOTE:
The update will be reflected in the future printing of the service manuals. If the reprint date on the third cover page is later then the issue date of this bulletin, the changes will have been made in the manual.
