Table B-1 Fuel Pump Circuit Inspection

TABLE B-1 FUEL PUMP CIRCUIT CHECK

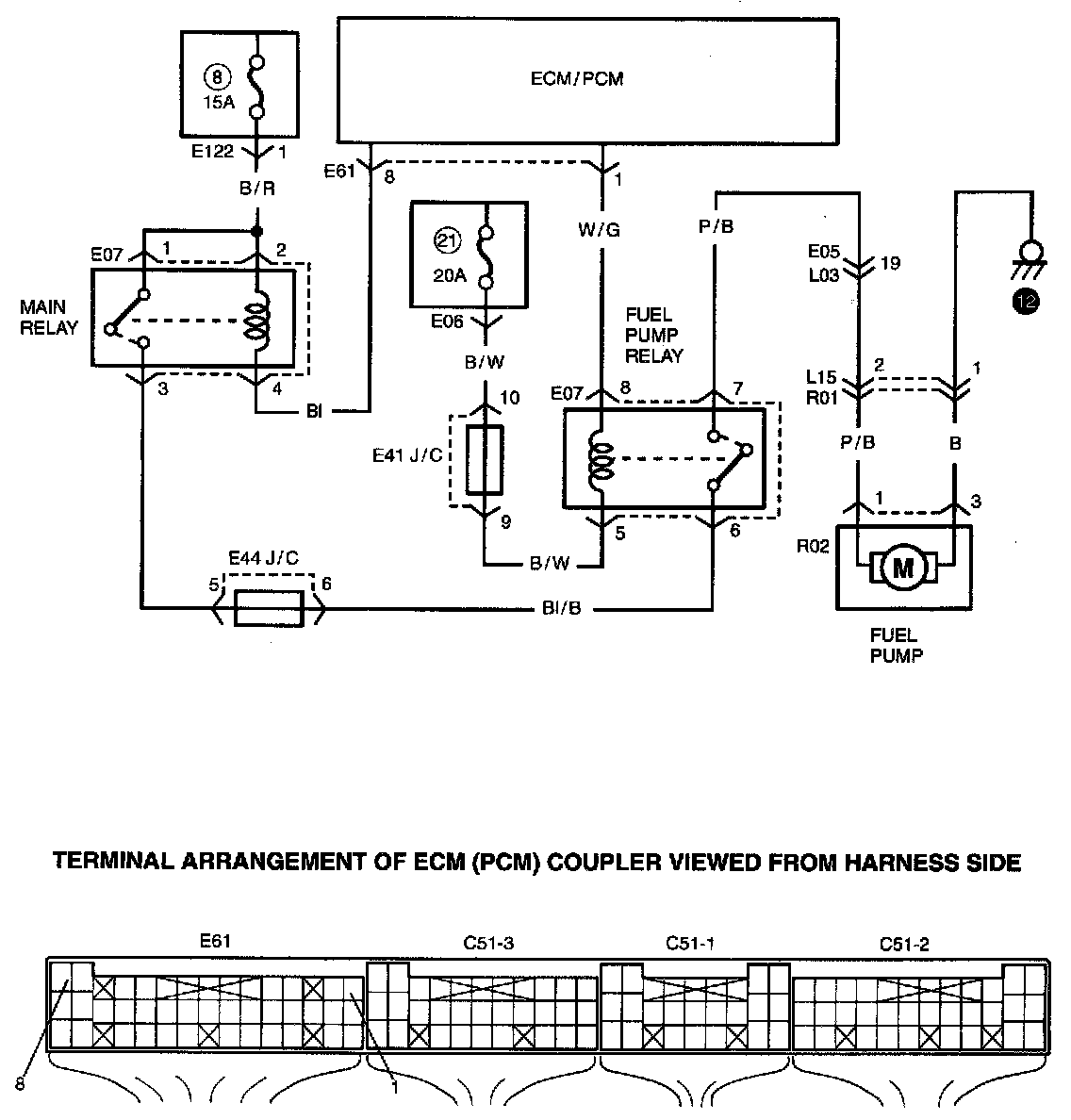

WIRING DIAGRAM

CIRCUIT DESCRIPTION
Fuel pump relay is turned ON
- for 3 sec. after ignition switch is turned ON
- while start engine signal is inputted.
- while engine is running.

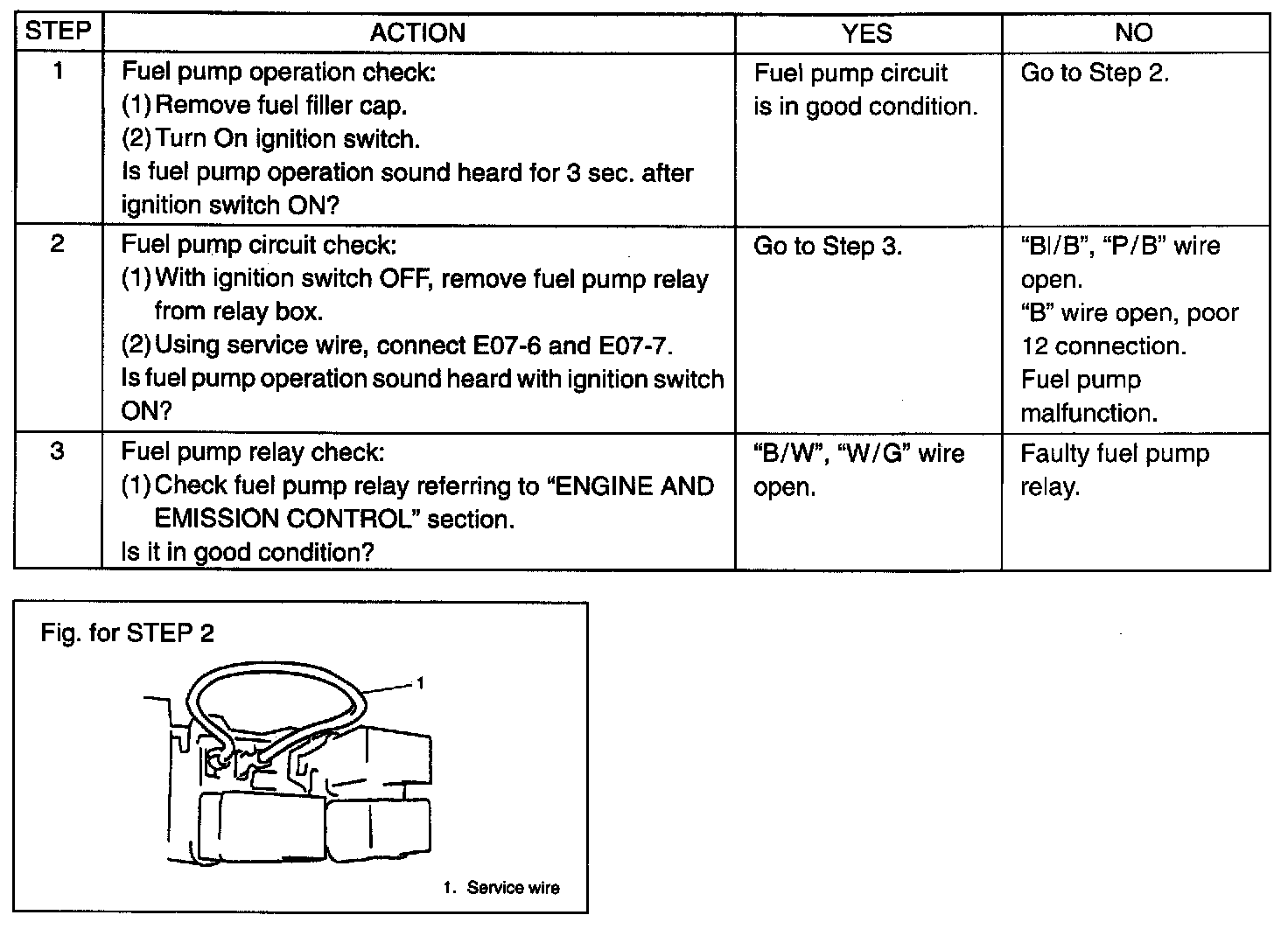

TROUBLESHOOTING
