Fail Safe Operation

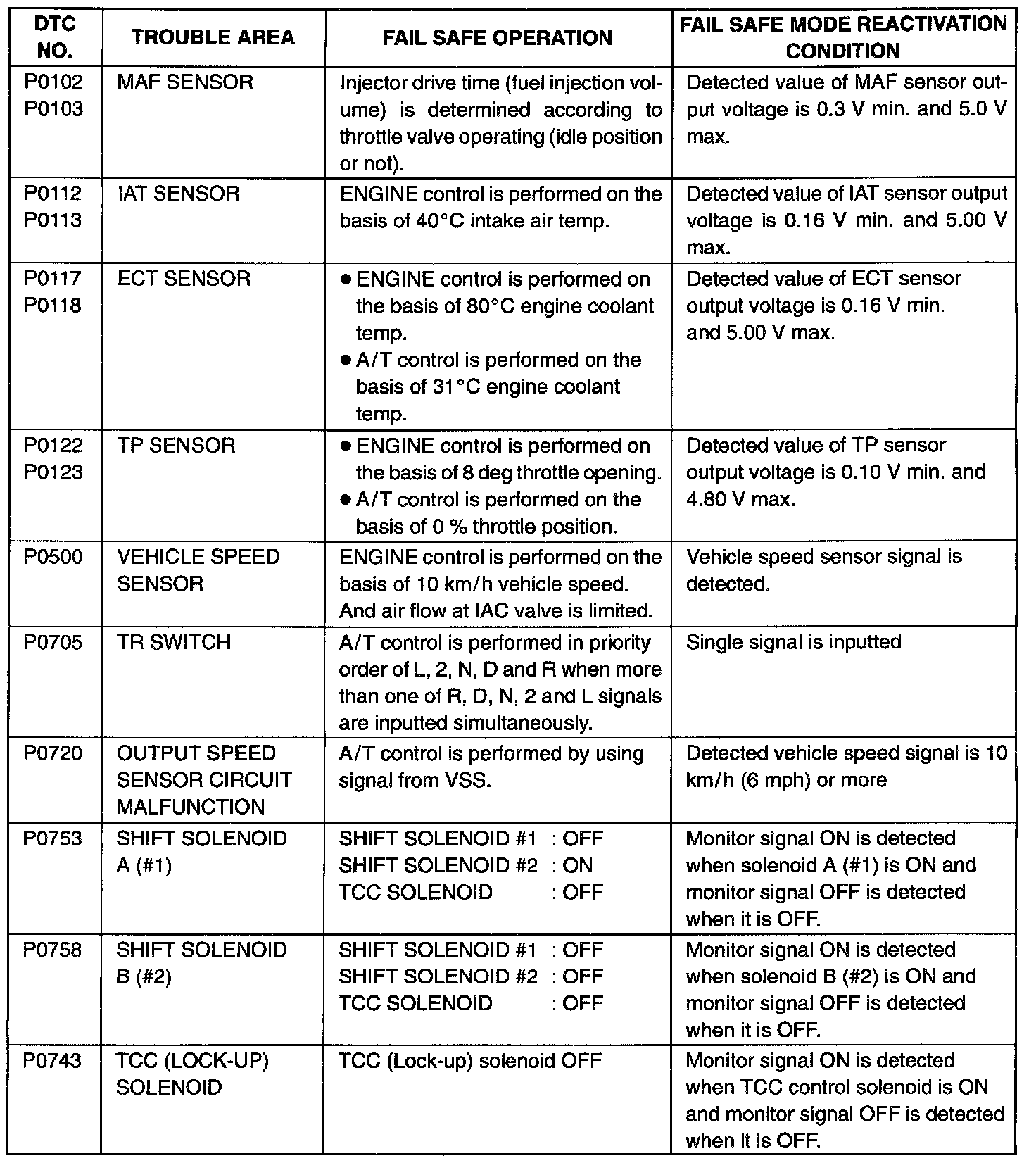

FAIL-SAFE TABLE
When any of the following DTCs is detected, ECM enters tall-safe mode as long as malfunction continues to exist but that mode is canceled when ECM detects normal condition after that.
