Headlamp Switch: Testing and Inspection

1. Disconnect negative (-) cable at battery.

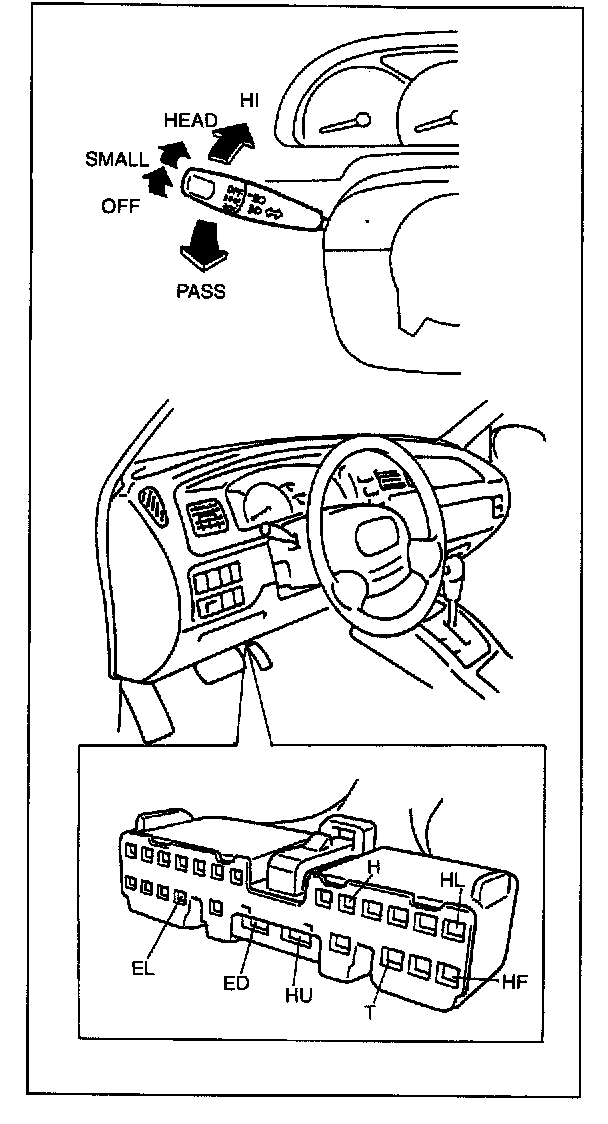

2. Disconnect combination switch lead wire couplers.
3. Use a circuit tester to check the continuity at each switch position. If any continuity is not obtained, replace switch.




Lighting Switch




Dimmer & Passing Switch
