Trunk Lamp

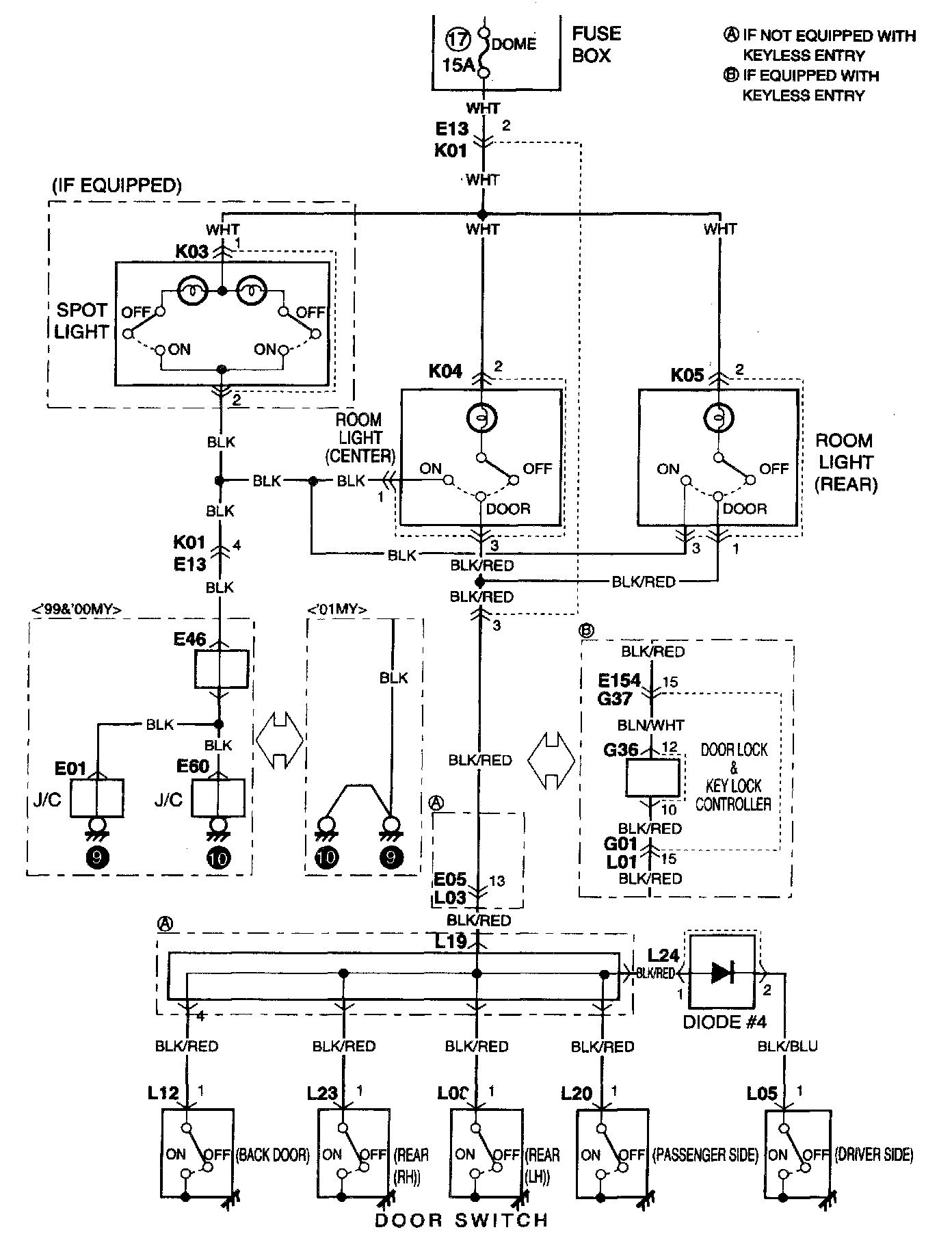

D-4 Room Light (Canvas Top) (1.6, 2.0L):

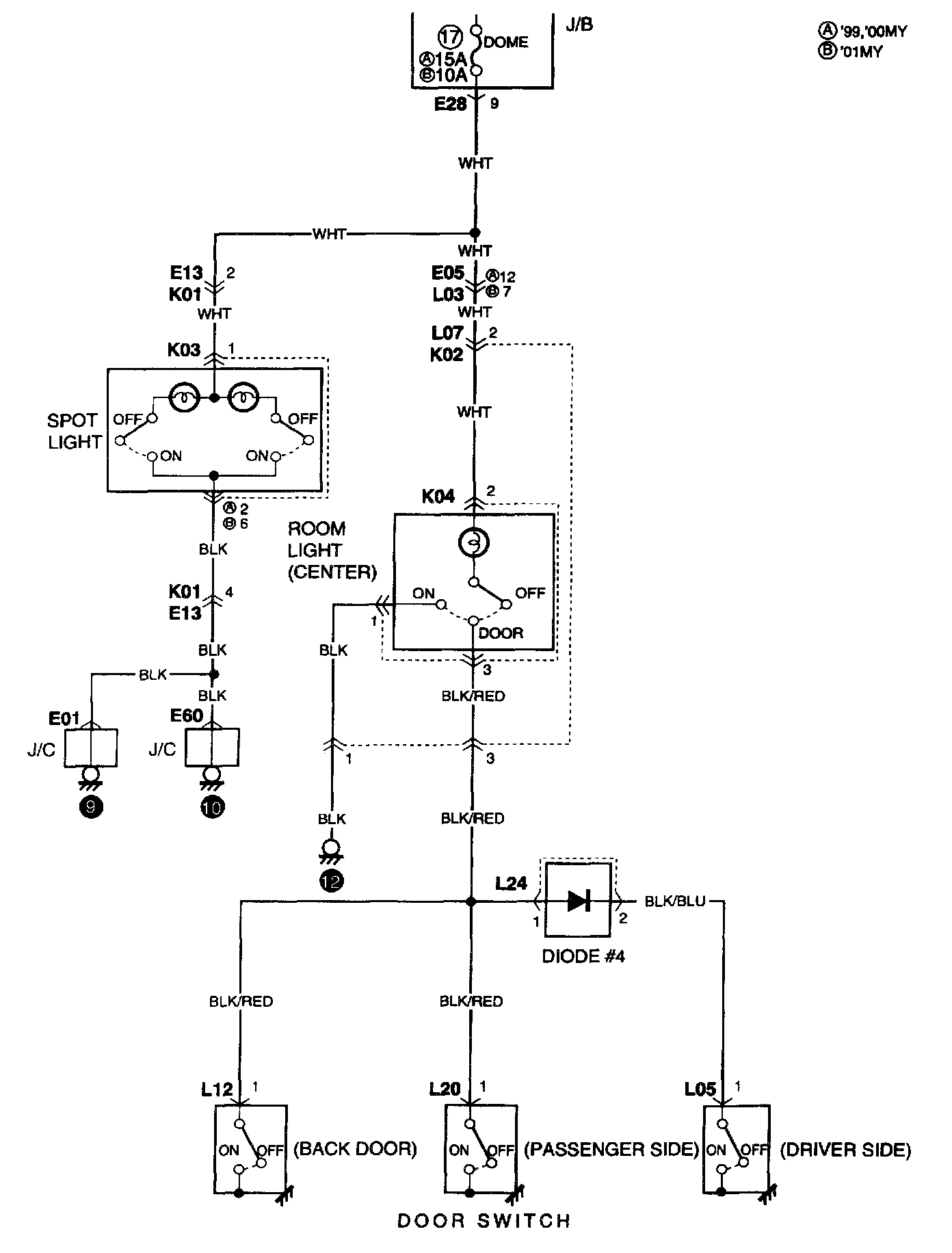

D-4 Room Light (4Door Model) (2.0L):

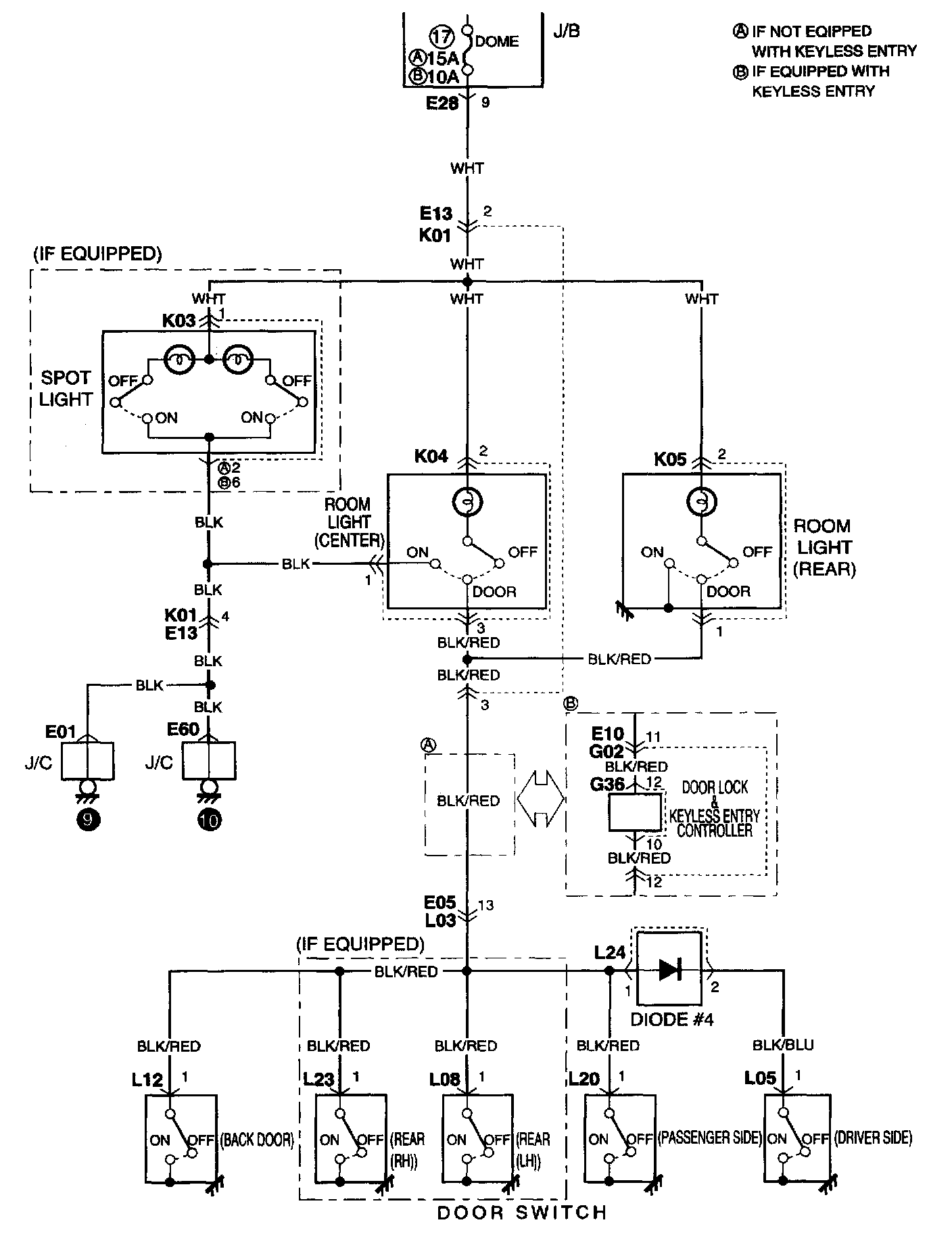

D-4 Room Light (2.5L):

NOTE: To view other electrical diagrams referred to in these schematics, see System Circuit Diagrams by letter (A Thru Z) Electrical Diagrams
