With Cruise Control Module

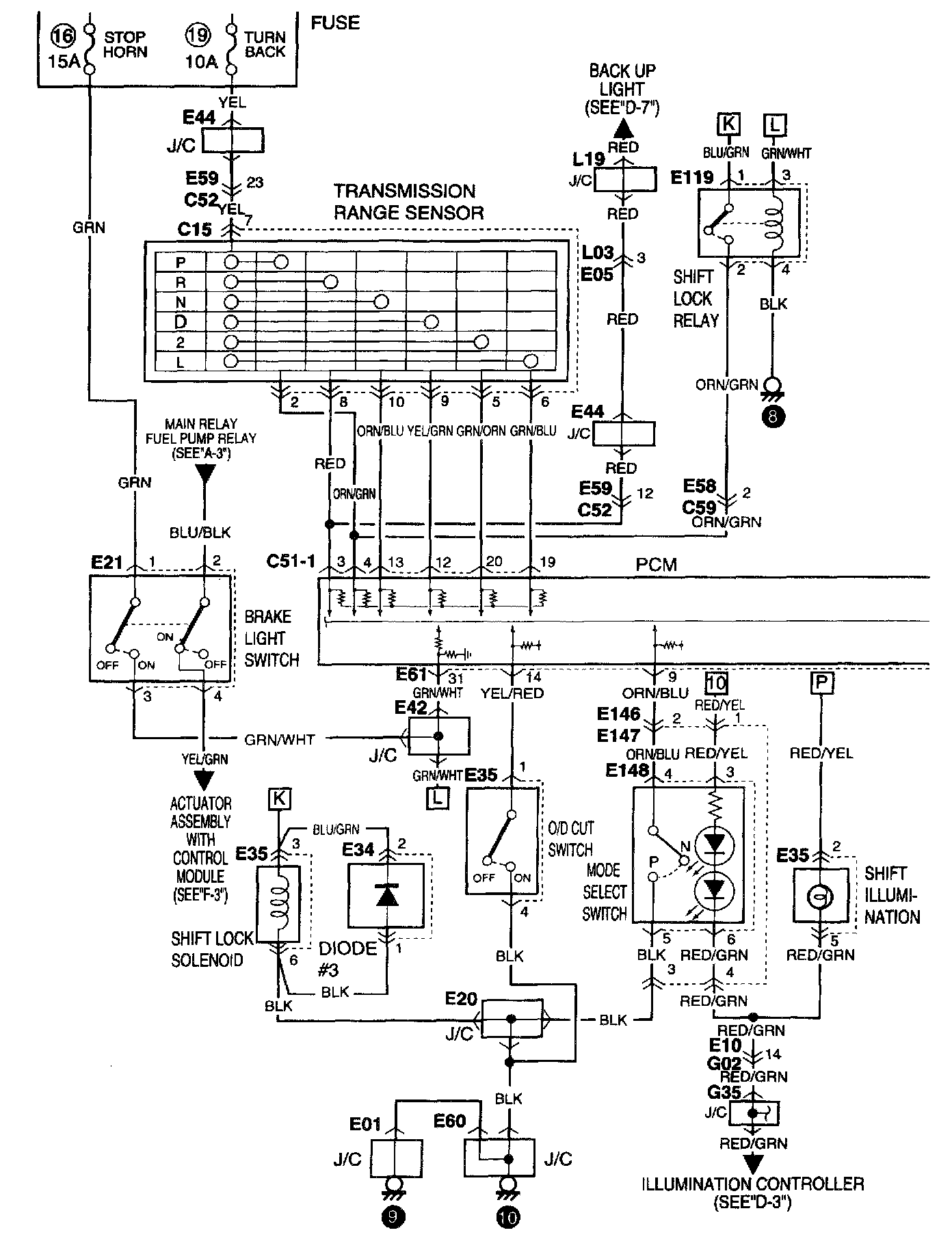

B-1 A/T Control System <Vehicle With Cruise Control Module> Part 1:

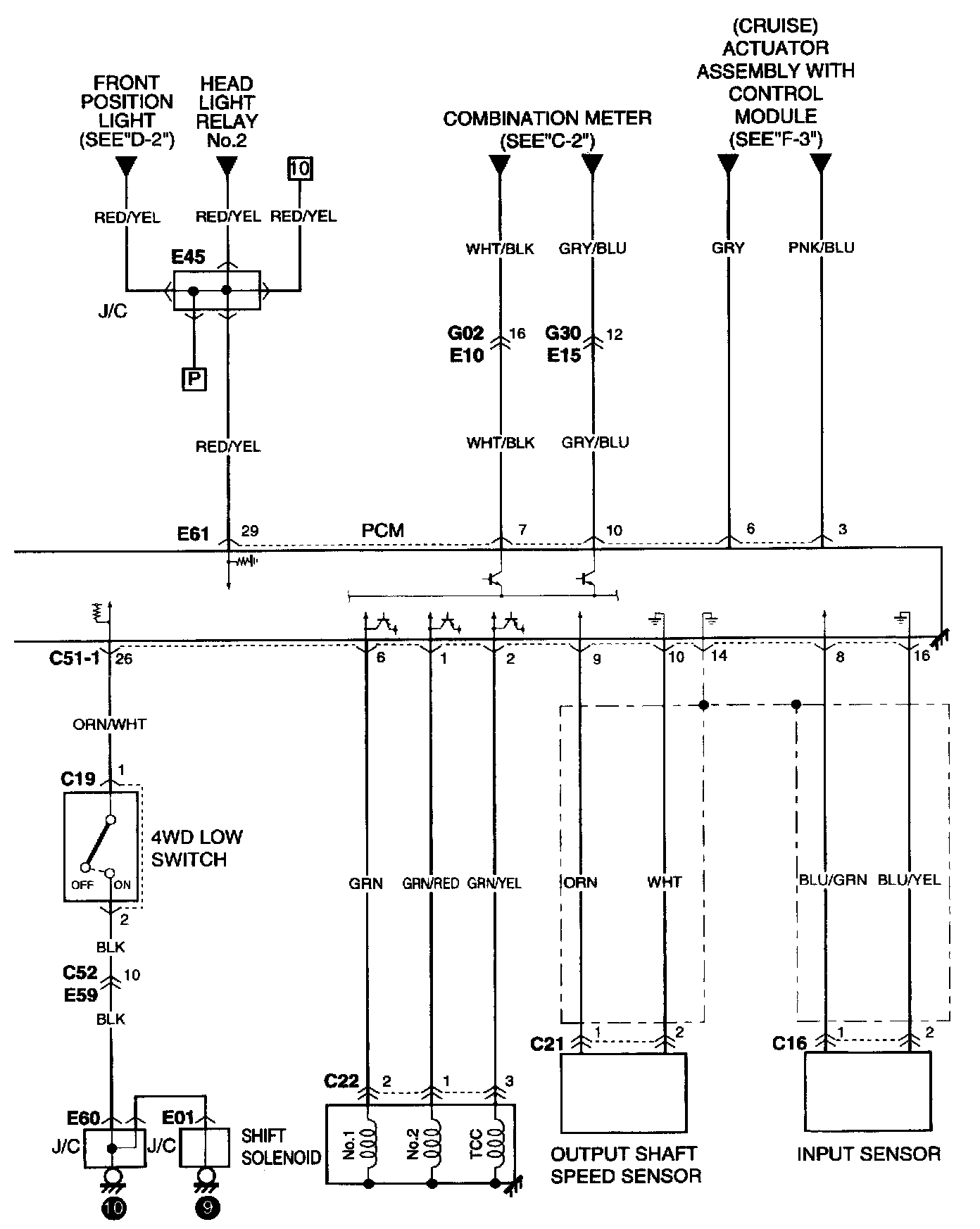

B-1 A/T Control System <Vehicle With Cruise Control Module> Part 2:
