Wiring Diagram

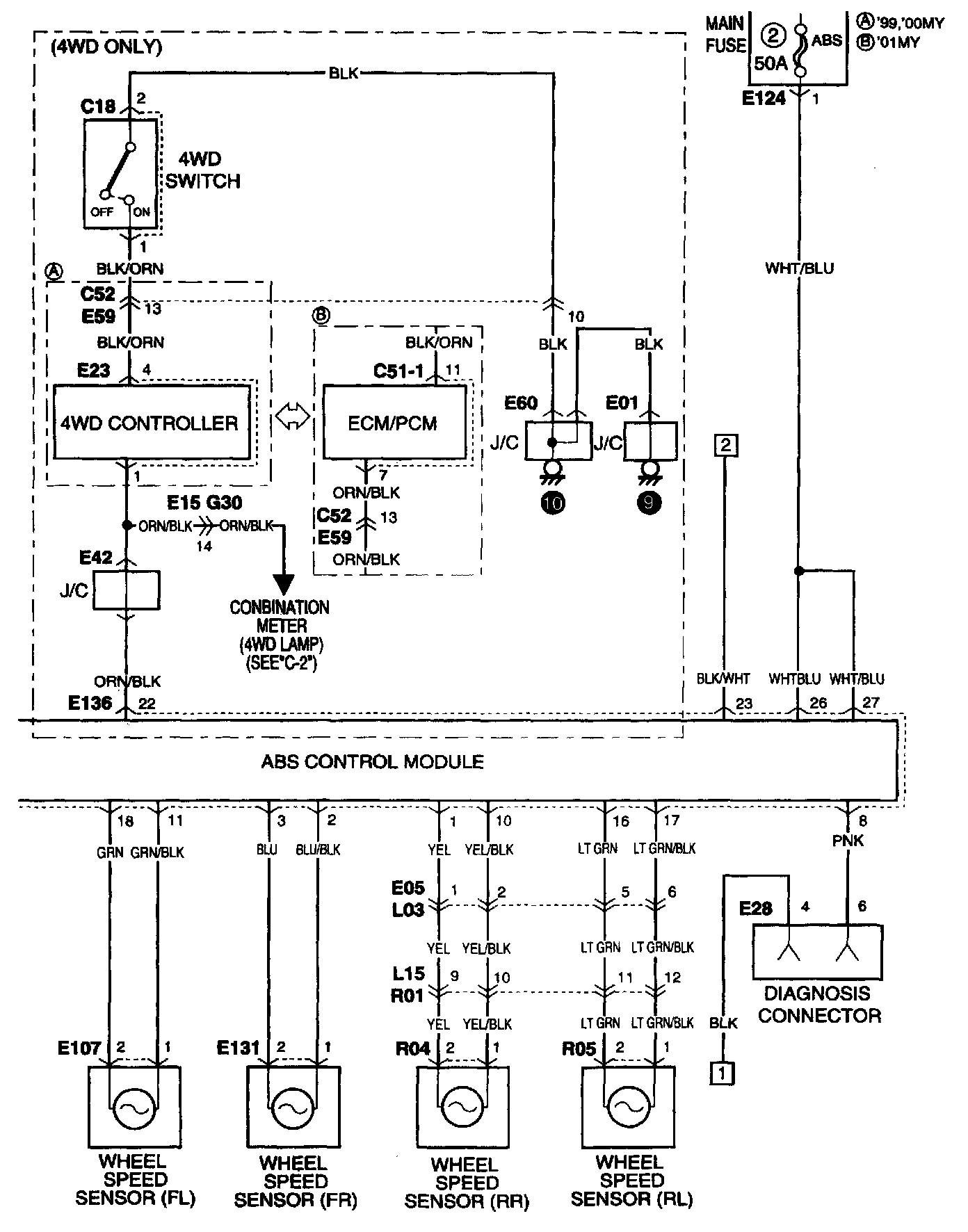

F-2 Anti-lock Brake System Part 1:

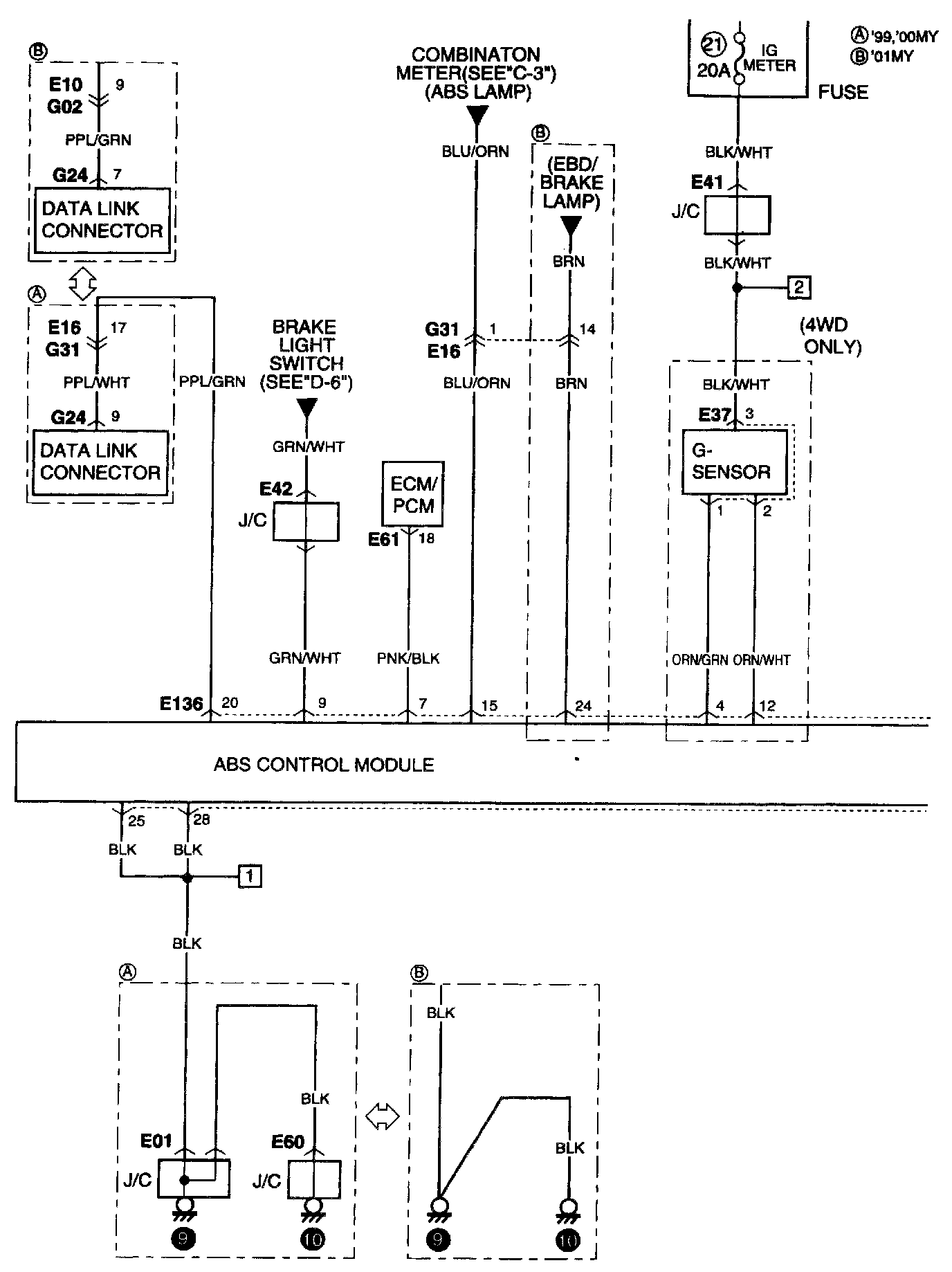

F-2 Anti-lock Brake System Part 2:

NOTE: To view other electrical diagrams referred to in these schematics, see System Circuit Diagrams by letter (A Thru Z) Electrical Diagrams
