P0125

WIRING DIAGRAM




DTC DETECTING CONDITION AND TROUBLE AREA

DTC CONFIRMATION PROCEDURE

NOTE: Check to make sure that following conditions are satisfied when using this DTC CONFIRMATION PROCEDURE.

- Intake air temperature: between -14°C and 70°C (6.8°F and 158°F)
- Atmospheric pressure: higher than 560 mm.Hg (Altitude: lower than 2790 m (9150 ft))
- Engine coolant temp. at engine start: lower than 30°C (86°F)
- Following DTCs are not detected: P0117, P0118 and P0335

1. With ignition switch OFF connect scan tool.
2. Turn ON ignition switch and clear DTC by using scan tool if any.
3. Start engine and run it for 10 min.
4. Check DTC and pending DTC by using scan tool.

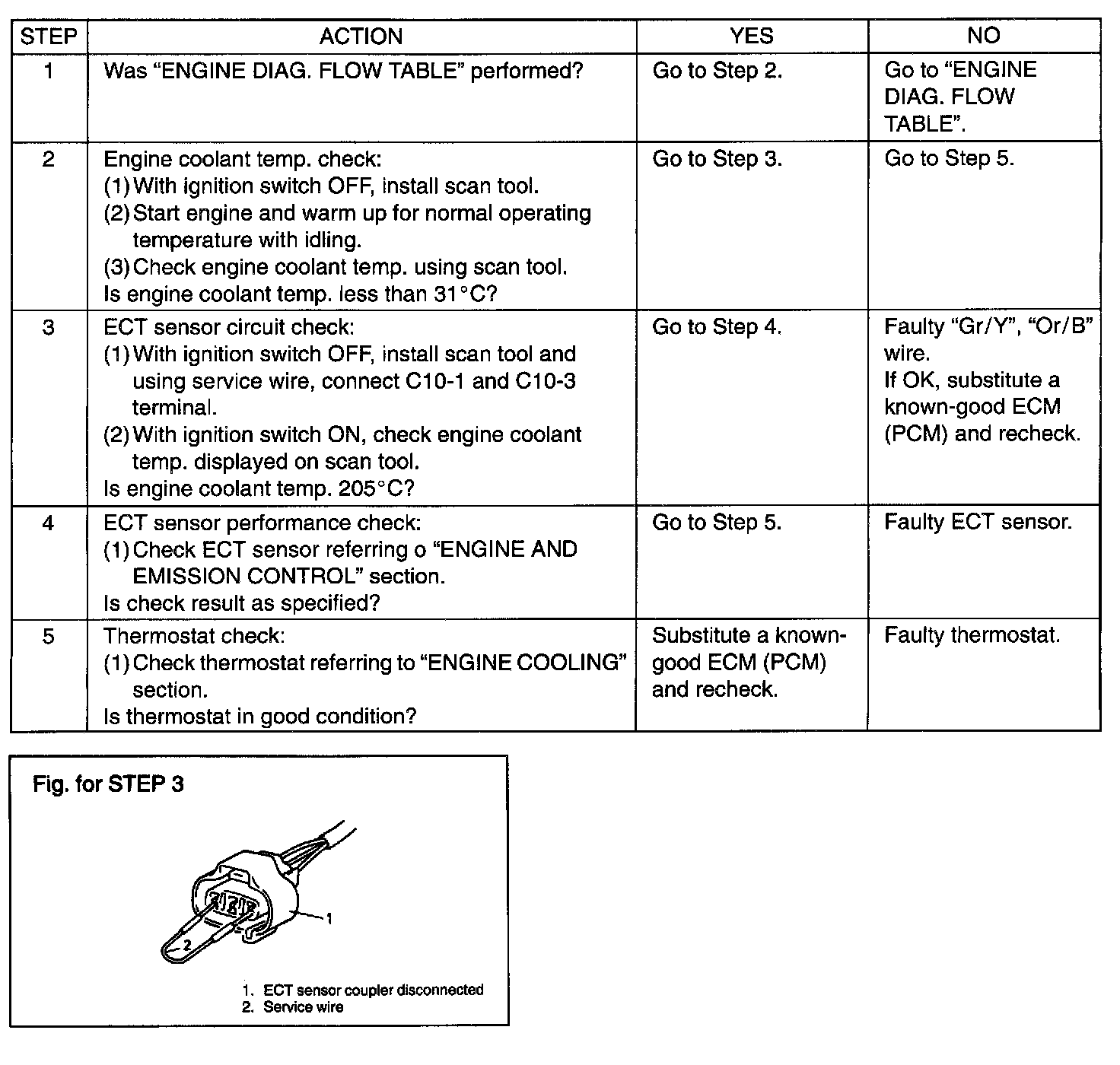

DTC TROUBLESHOOTING
