Table B-9 A/C Condenser Fan Control System
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

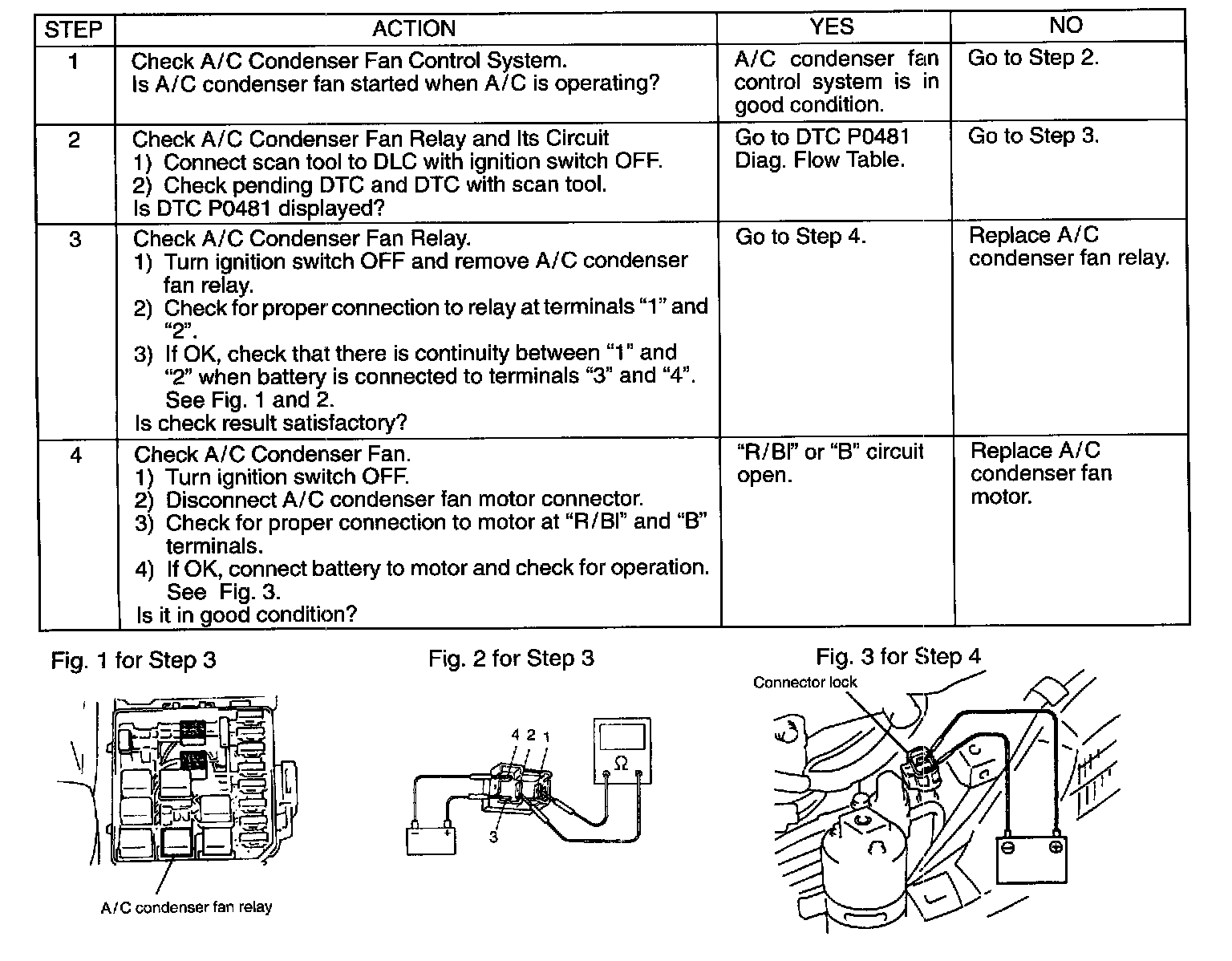

Table B-9 A/C Condenser Fan Control System
Condenser Fan
Control System
WIRING DIAGRAM
INSPECTION
