Power Door Lock Actuator: Testing and Inspection

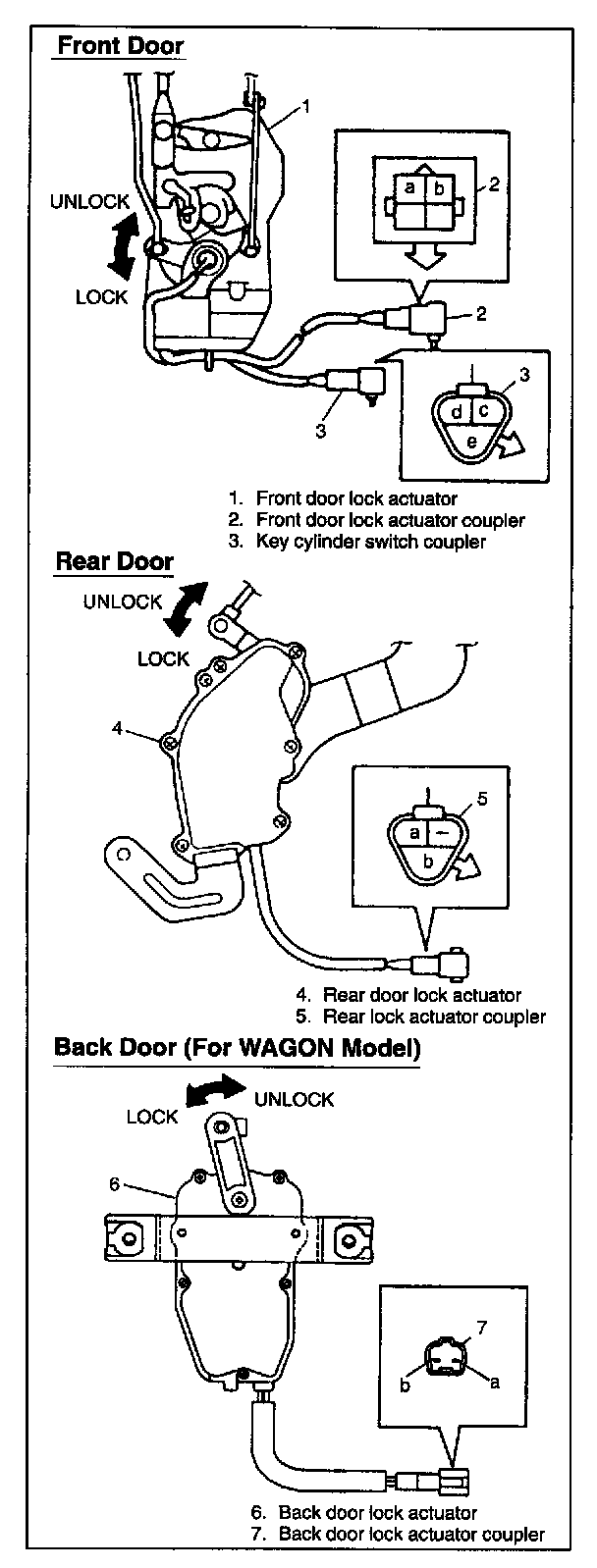

POWER DOOR LOCK ACTUATOR




1. Disconnect power door lock actuator coupler.
2. Connect (+) cord and (-) cord of 12 V battery to coupler terminal a and b.
3. Actuator is proved to be operating properly if (-) cord connection to terminal a results in "Lock" and its connection to terminal b results in "Unlock".
