Reduction Type

DIAGNOSES

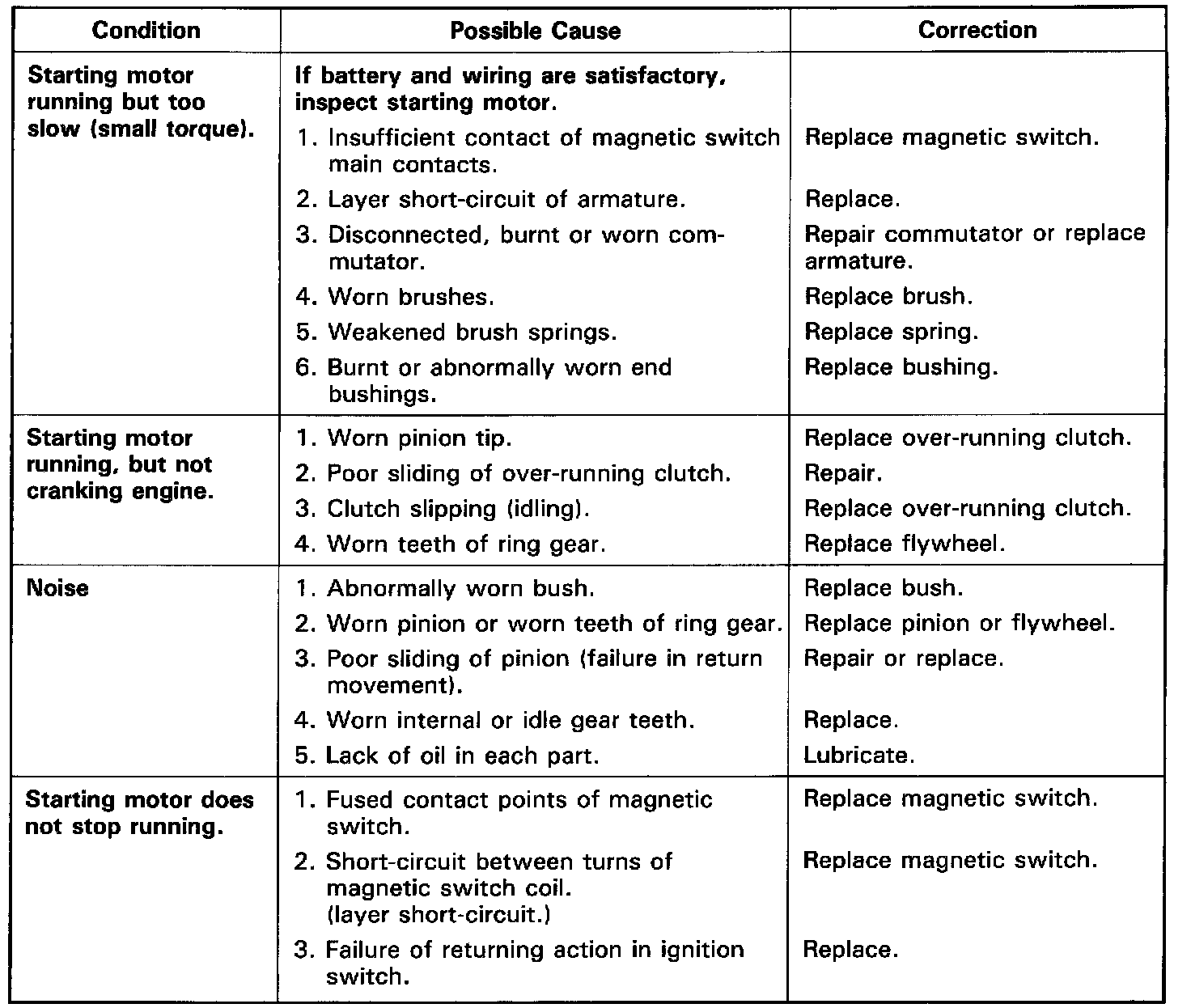

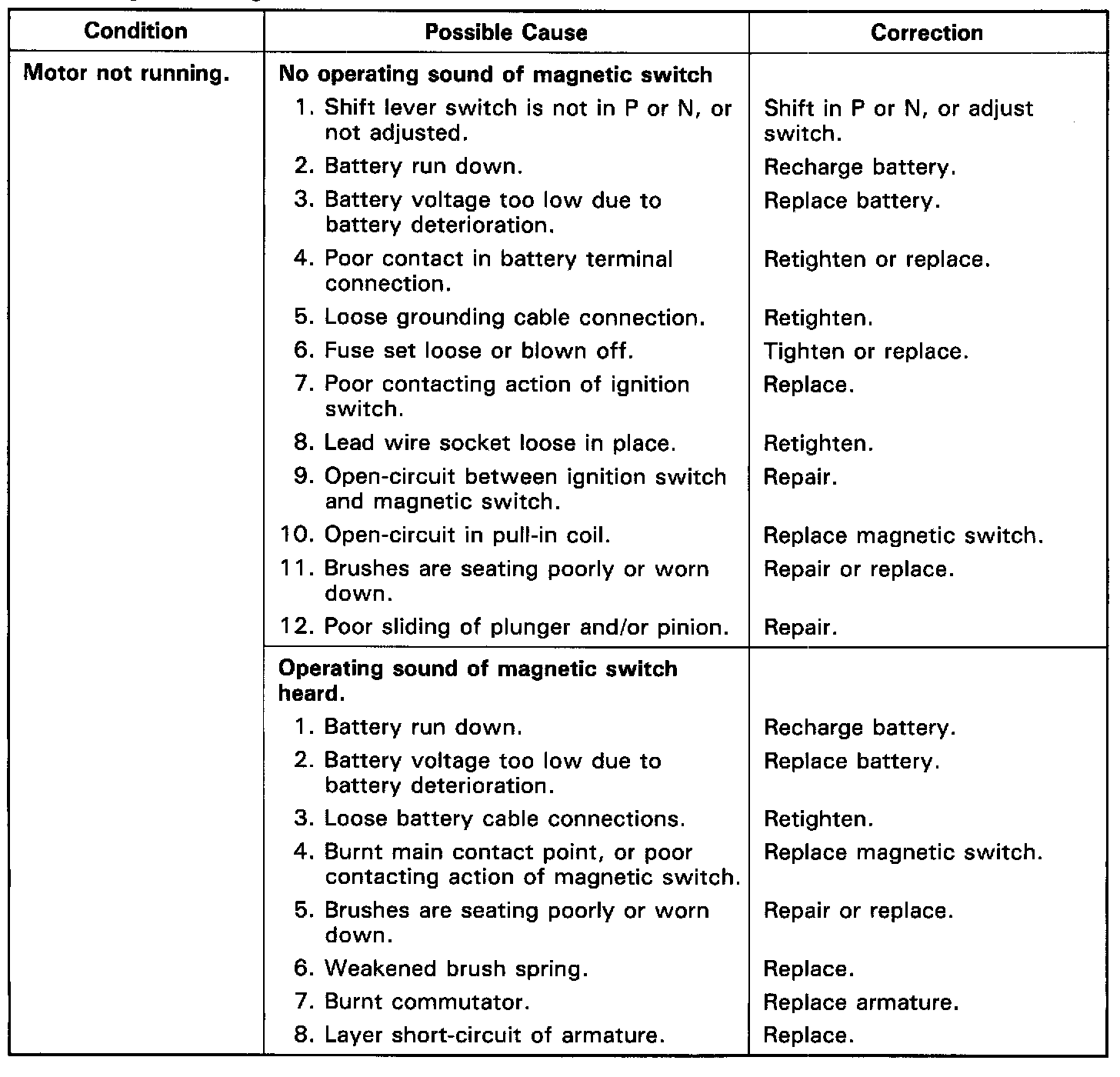

Possible symptoms due to starting system trouble are:
- Starting motor does not run (or runs slowly),
- Starting motor runs but fails to crank engine, or
- Abnormal noise is heard.

Proper diagnosis must be made to determine exactly where the cause of each trouble lies in battery ,wiring harness, (including starting motor switch), starting motor or engine.

Don't remove motor just because starting motor does not run.Check following items and narrow down scope of possible causes.
1) Condition of trouble
2) Tightness of battery terminals (including ground cable connection on engine side) and starting motor terminals.
3) Discharge of battery
4) Mounting of starting motor
