Transmission Position Sensor/Switch: Testing and Inspection

�� :

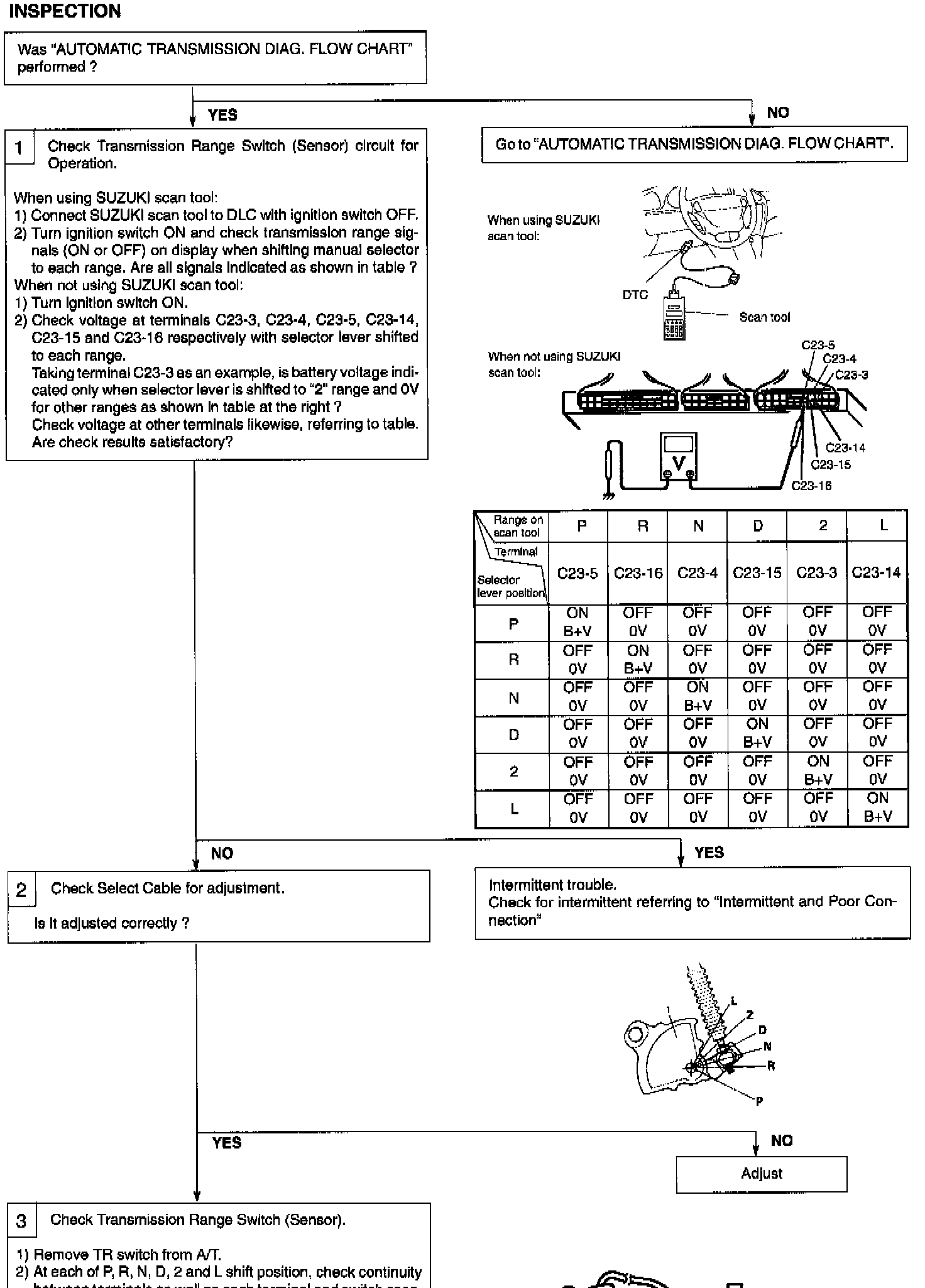

Check transmission range switch referring to step 1 of DTC P0705 Flow Chart, shown above.
