Engine

Inspection Procedure:

Figure 1:

Figure 2:

Figure 3:

Figure 4:

Figure 5:

Figure 6:

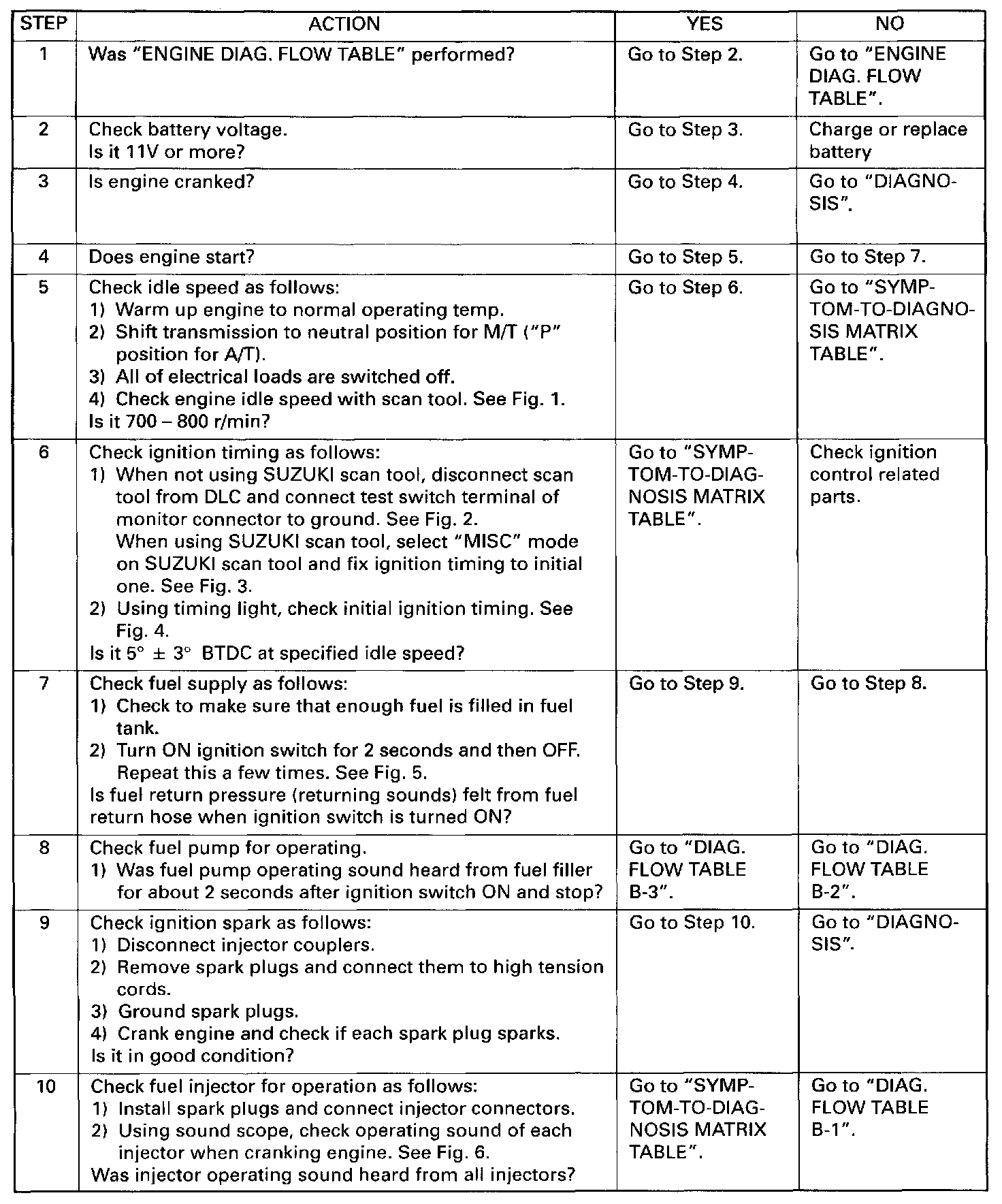

ENGINE BASIC INSPECTION

This check is very important for troubleshooting when ECM has detected no DTC and no abnormality has been found in visual inspection.
Follow the flow table carefully.
