Crankshaft Position Sensor: Testing and Inspection

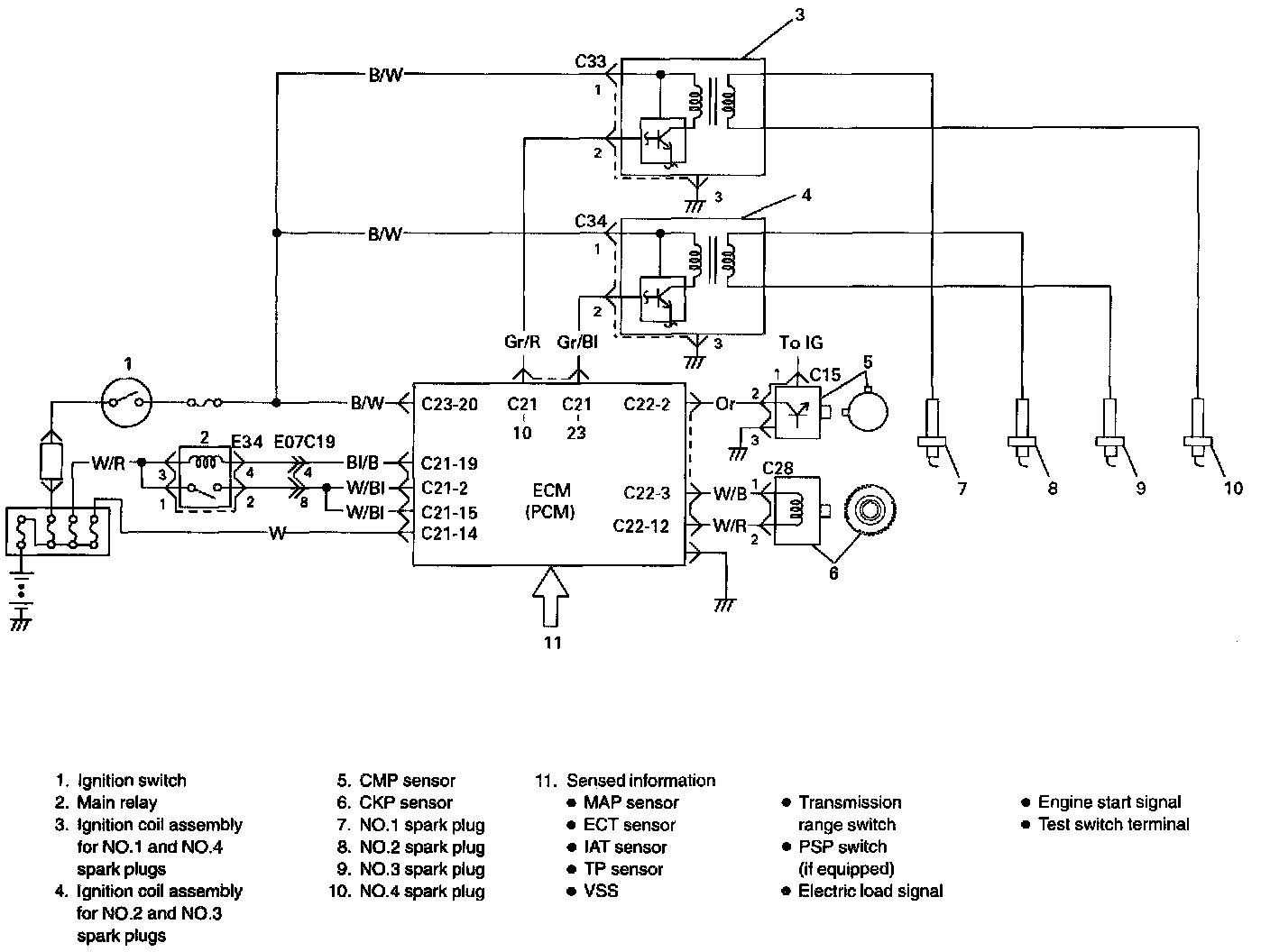

SYSTEM WIRING DIAGRAM

Reference
Oscilloscope waveforms is as shown in figure when connecting oscilloscope between terminal C22-3 of ECM connector connected to ECM and body ground, and between terminal C21 -10 (or C21 -23) and body ground.
