Control Assembly: Service and Repair

Control Lever Assembly




REMOVAL
1) Remove ashtray and center garnish mounting screw.
2) Remove center garnish.
3) Remove cluster panel lower cover.
4) Remove control lever knobs and control panel garnish.
5) Remove control panel.
6) Disconnect leadwire from blower motor switch at coupler.





7) Disconnect control cables from blower motor unit and heater unit.
8) Remove control lever ass'y.
9) Disconnect control cables from control lever.





INSTALLATION
Install control cables by reversing removal procedure,noting the following point.

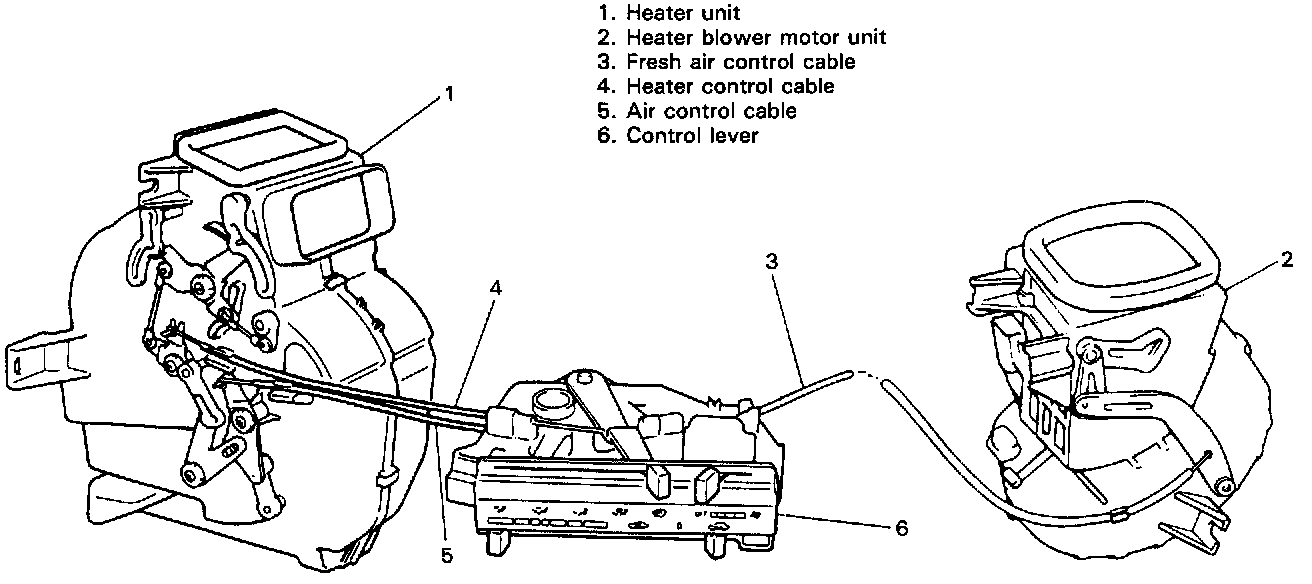

After installing control cables to control levers,move control levers to such position as to pull cables fully, then connect and clamp control cables to heater unit and blower motor unit levers as shown.

NOTE: After installing control cables, be sure that control knobs move smoothly and stop at proper position.
