Swift L4-1298cc 1.3L SOHC MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Automatic Transmission/Transaxle
>>
PCM (ECM) Terminal Assignment
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

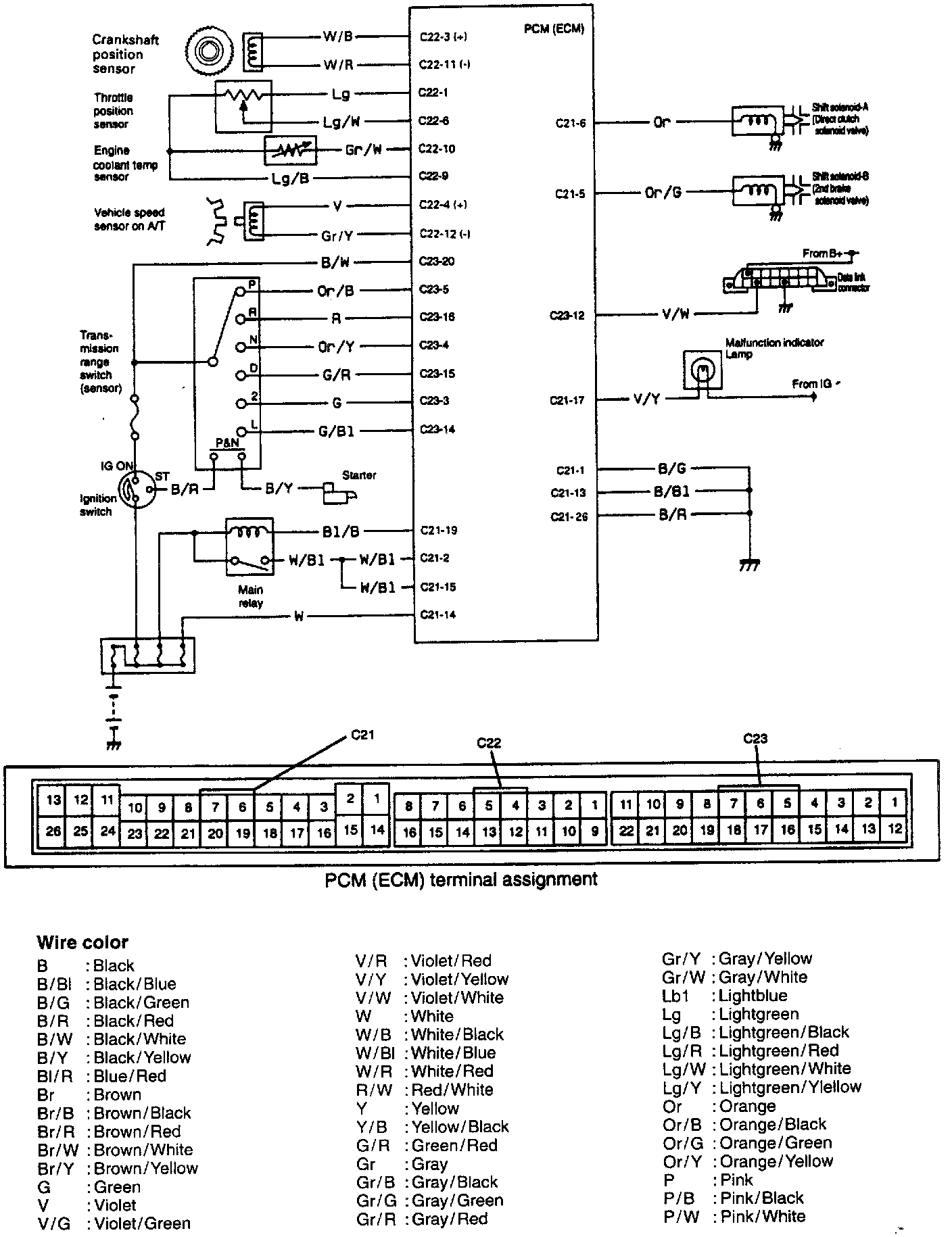

PCM (ECM) Terminal Assignment
