Diagnostic Circuit Check

CAUTION:
- A TECH-1 that displays faulty data should not be used, and the problem should be reported to the manufacturer. The use of a malfunctioning TECH-1 can result in misdiagnosis and unnecessary parts replacement.

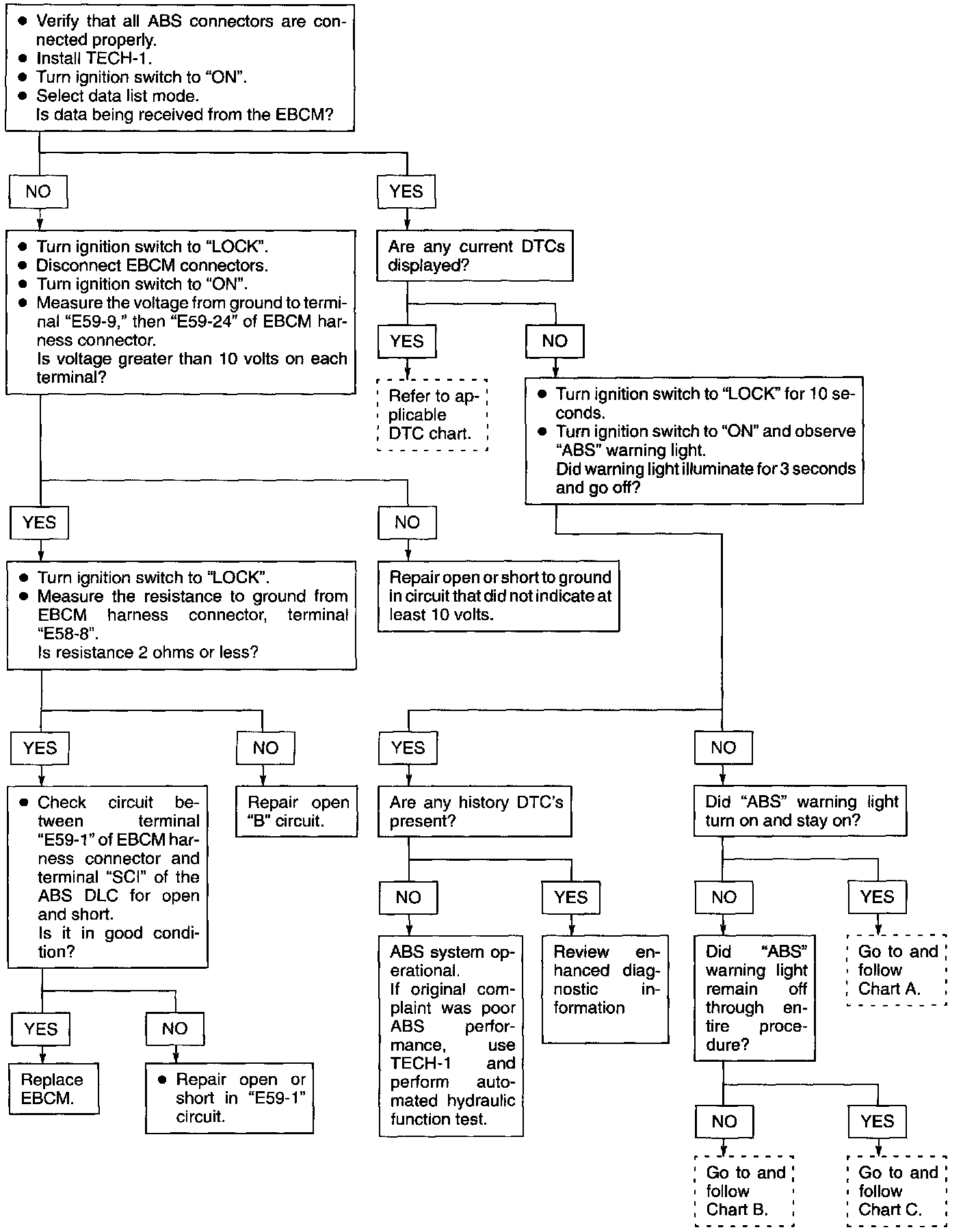

The "Diagnostic Circuit Check" is an organized approach to identifying a problem created by an anti-lock brake system (ABS) malfunction. It must be the starting point for any ABS complaint diagnosis, because it directs the service technician to the next logical step in diagnosing the complaint.

The "Scan Data" listed in the table may be used after completing the "Diagnostic Circuit Check" and finding the on-board diagnostics functioning properly and diagnostic trouble codes (DTCs) displayed.

Only the parameters listed below are used in this manual for diagnosing. If a scan tool other than TECH-1 is used and reads other parameters, the values are not recommended by Suzuki Motor Corporation for use in diagnosing.

SCAN DATA

Scan Position: Units Displayed
FRONT WHL SPEEDS: MPH/KPH
REAR WHL SPEEDS: MPH/KPH
VEHICLE SPEED: MPH/KPH
ABS WARNING LAMP: ON /OFF
LF MOTOR COMMAND FOOD/REV: AMPERES
LF MOTOR FEEDBACK: AMPERES
RF MOTOR COMMAND FWD/REV: AMPERES
RF MOTOR FEEDBACK: AMPERES
REAR MOTOR CMD FWD/REV: AMPERES
REAR MOTOR FDBK: AMPERES
L FRONT SOLENOID: ON/OFF
R FRONT SOLENOID: ON/OFF
BRAKE SWITCH: ON/OFF/CIRCUIT OPEN
ENABLE RELAY CMD: ON/OFF
BRAKE TELLTALE CMD: ON/OFF
BRAKE TELLTALE: ON/OFF/CIRCUIT OPEN
ABS BATT VOLTAGE: VOLTS
ABS ION VOLTAGE: VOLTS
