Fuel Pressure: Testing and Inspection



Fuel Pressure Testing

System Diagram

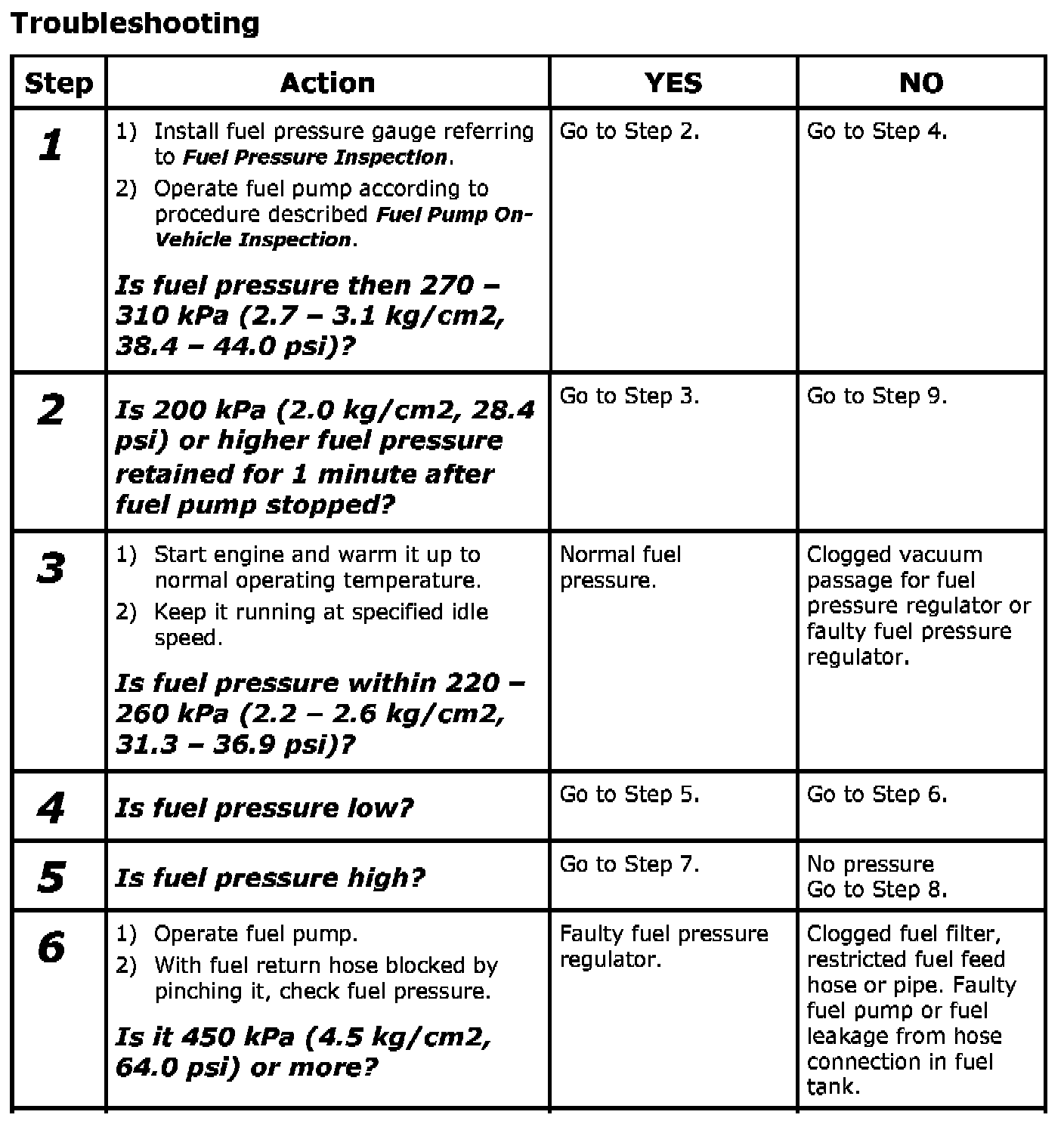

Troubleshooting

Step 1-6:

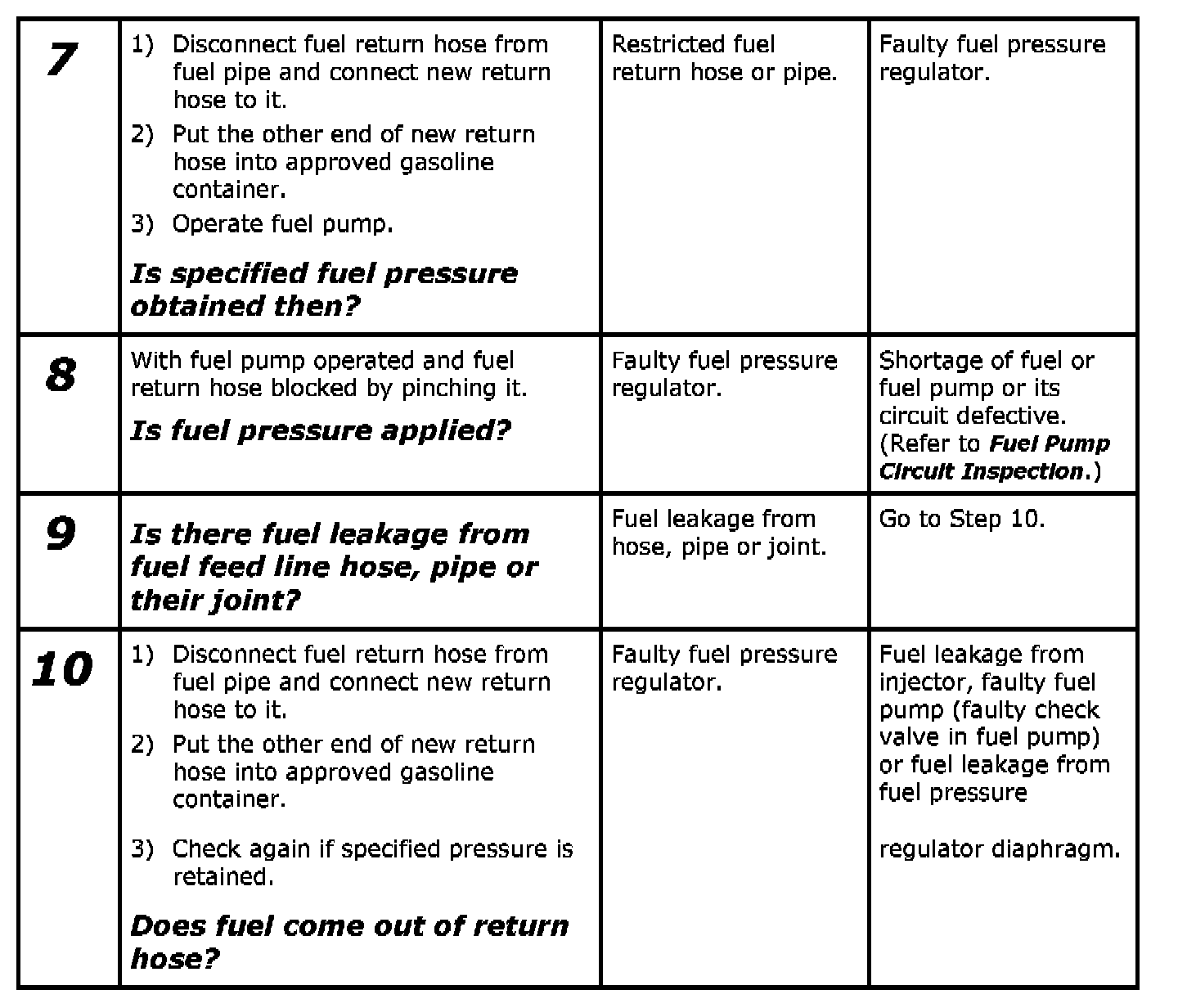

Step 7-10:
