Symptom-to-Diagnosis Matrix Table

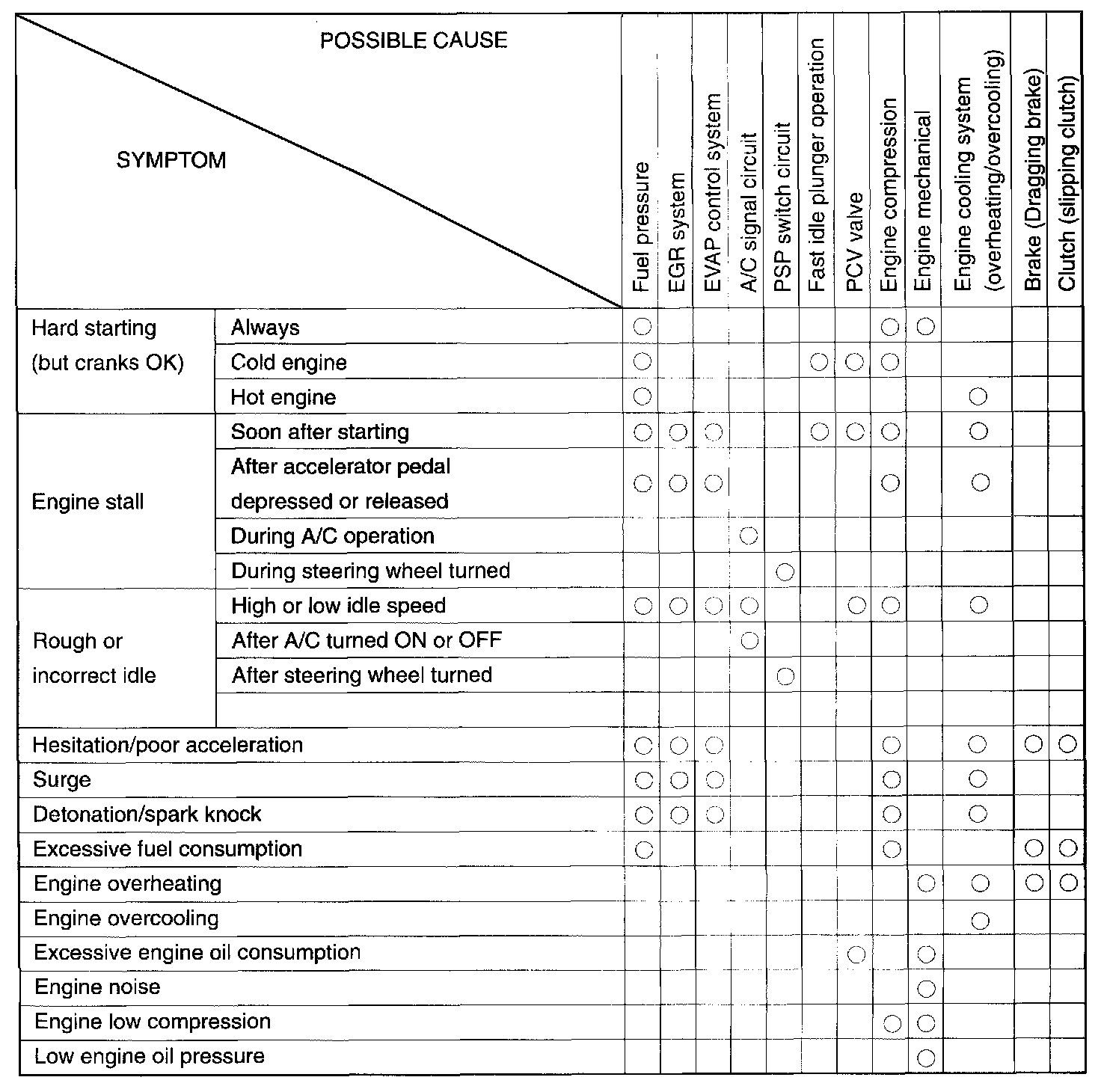

SYMPTOM-TO-DIAGNOSIS MATRIX TABLE
Perform troubleshooting referring to following table when ECM has detected no DTC and no abnormality has been found in visual inspection and engine basic inspection previously.
Visual Inspection
Engine Basic Check
