Connector Locations

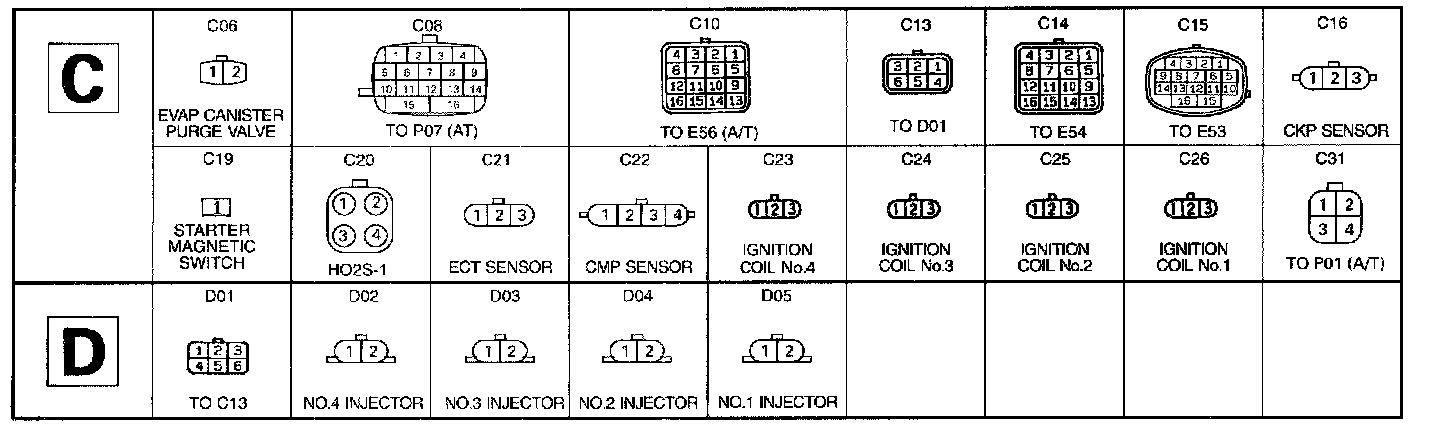

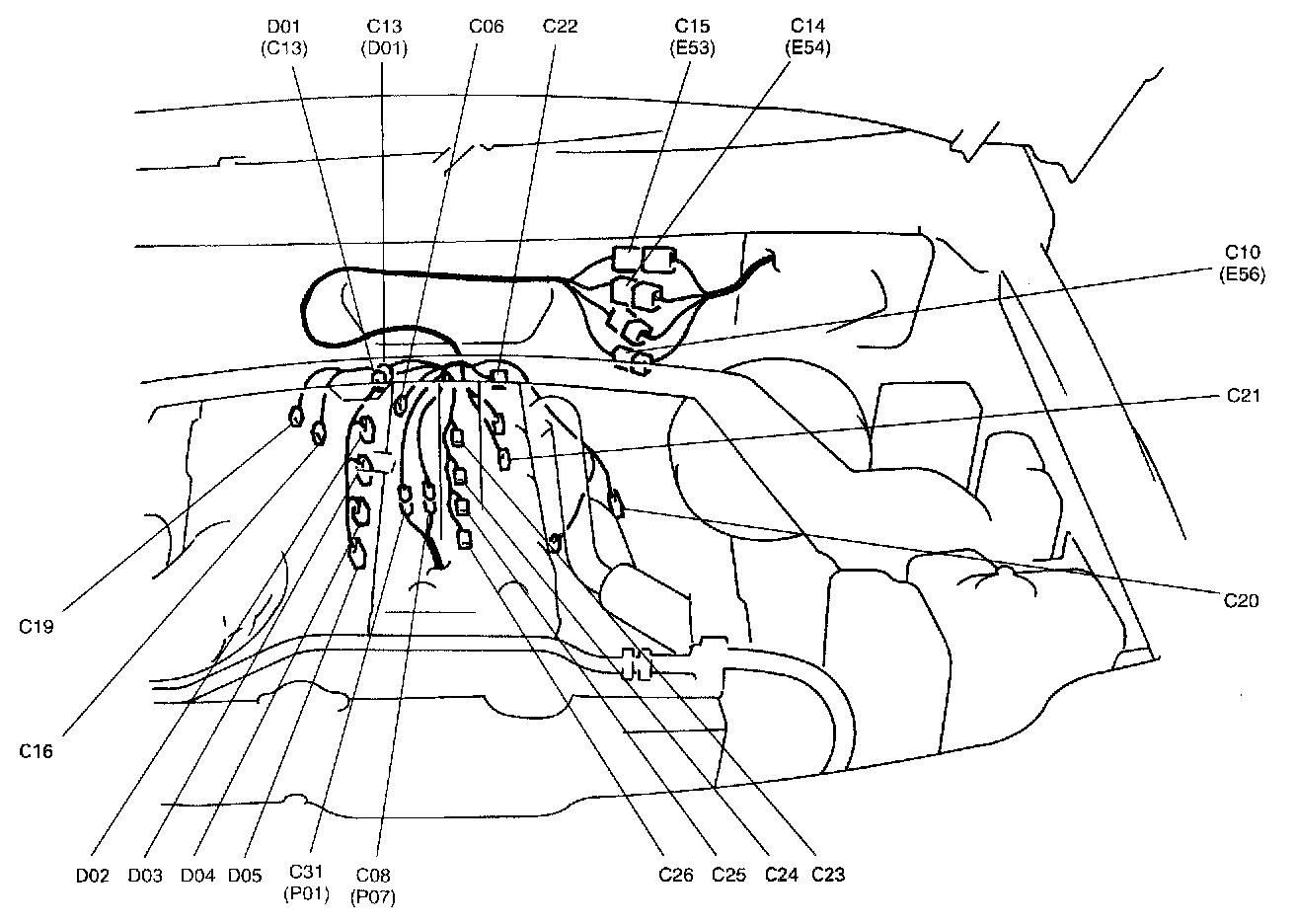

WIRE HARNESS AND CONNECTORS ENGINE ROOM C&D

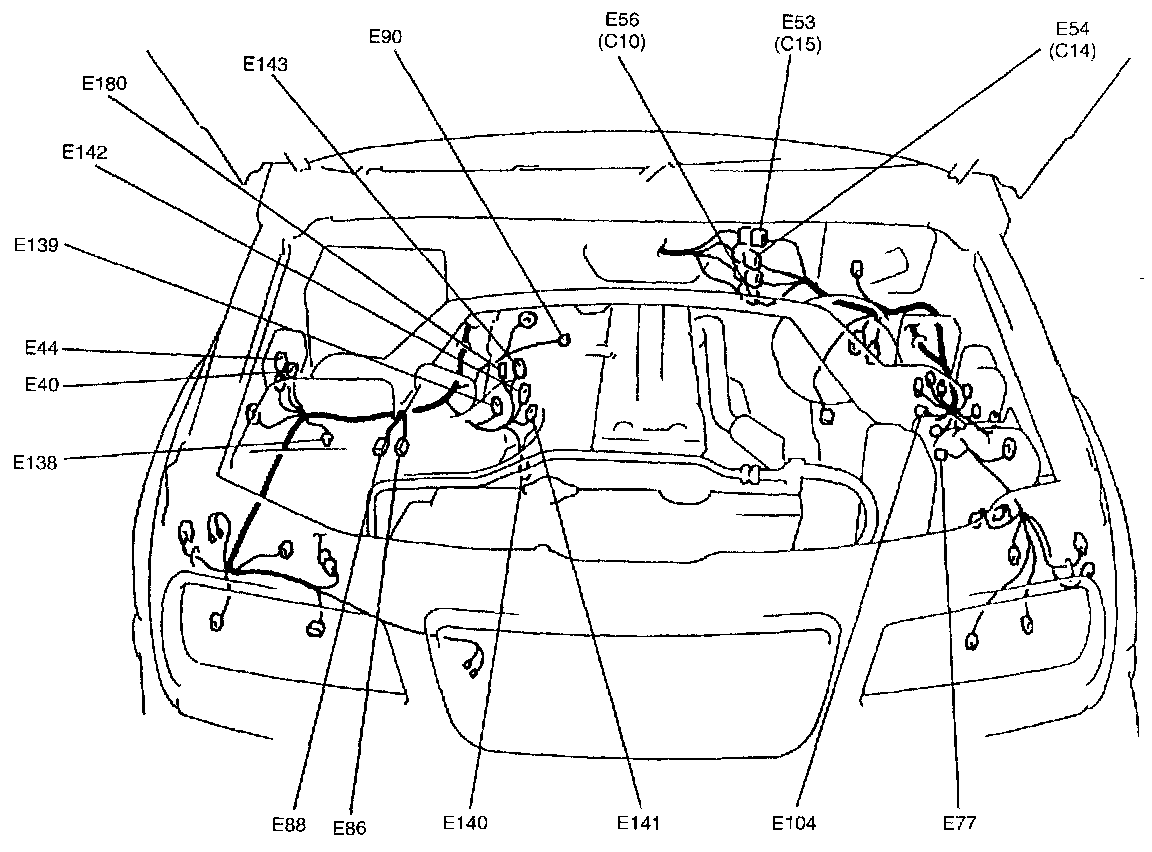

ENGINE ROOM E

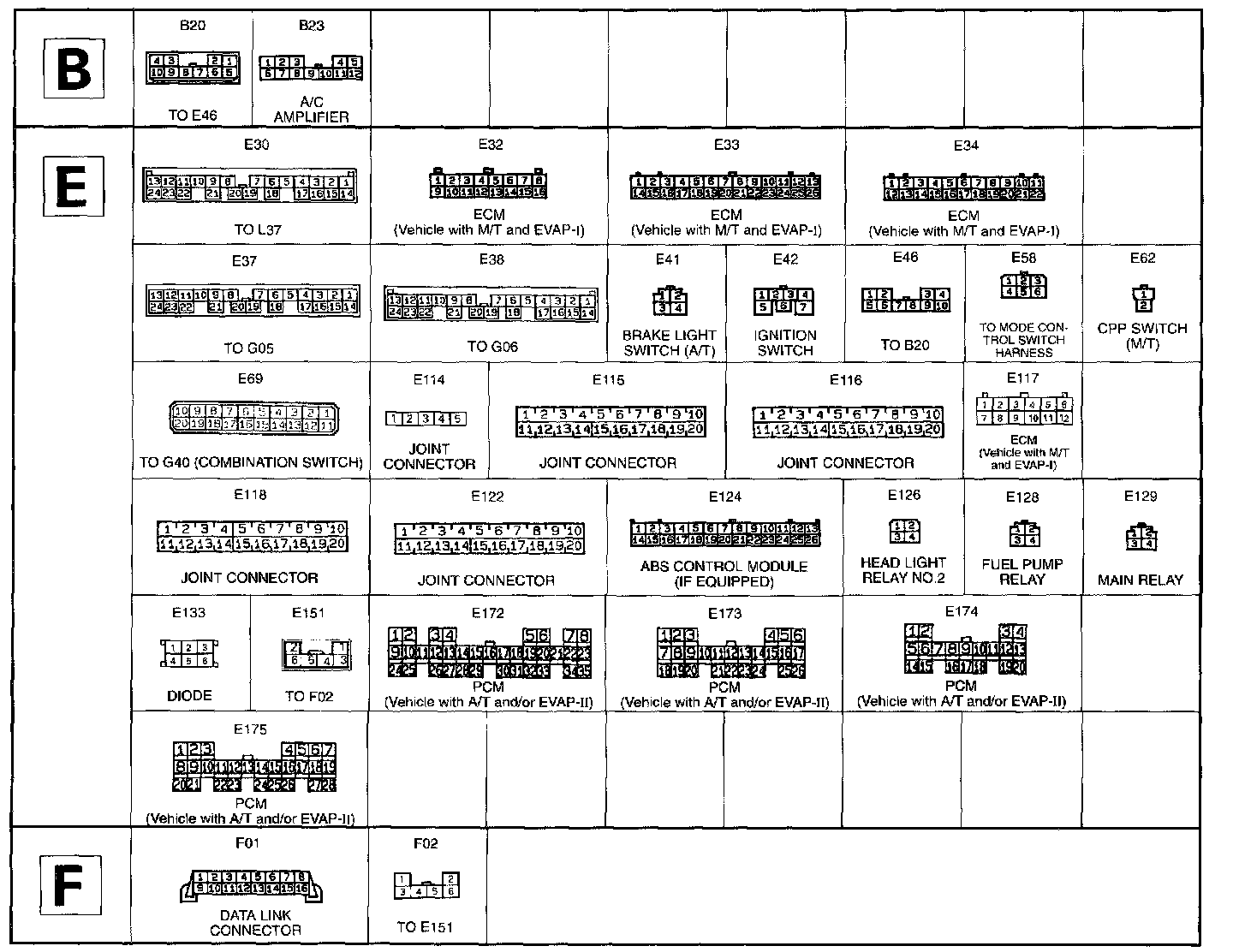

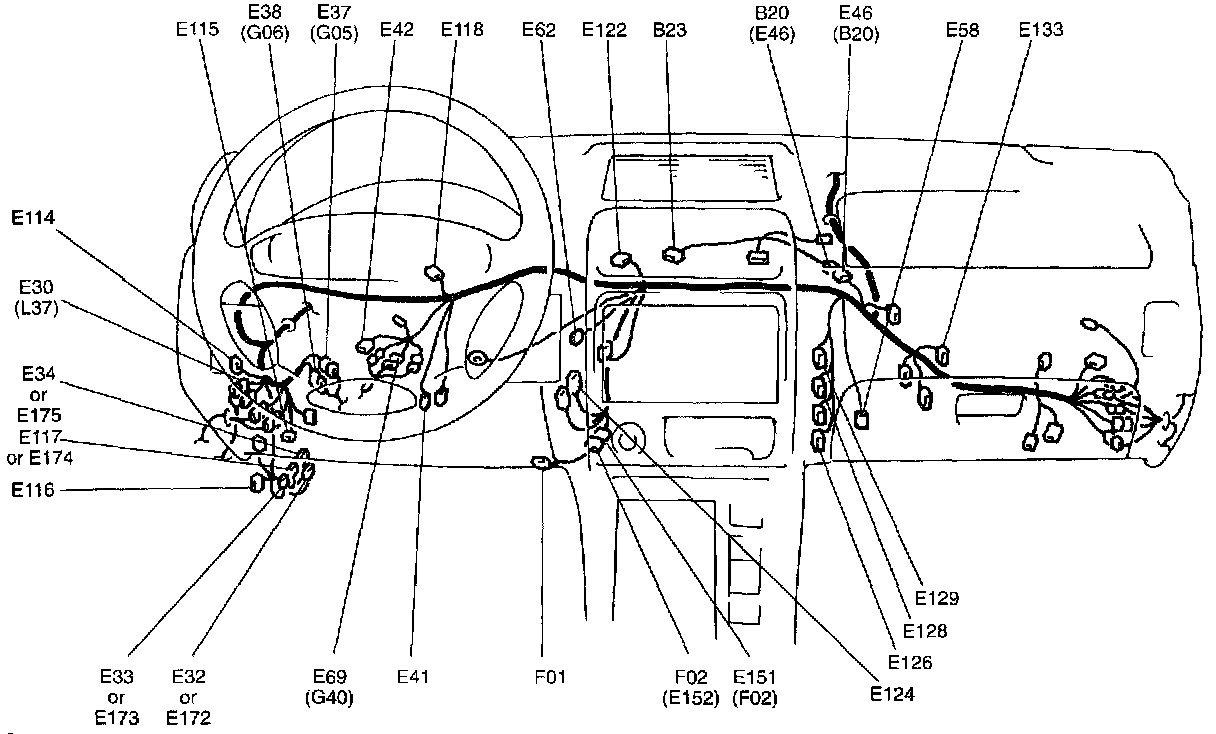

INSTRUMENT PANEL B, E & F

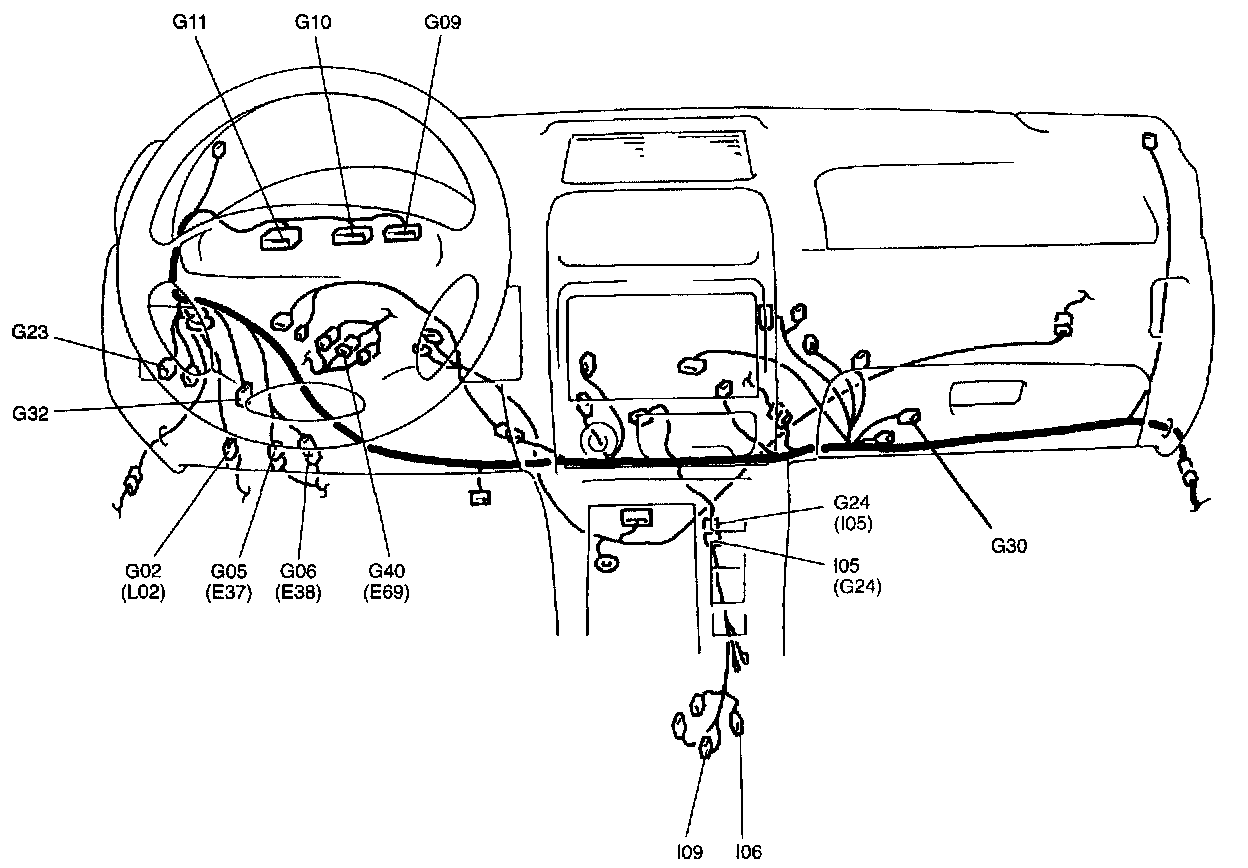

INSTRUMENT PANEL G, H & I

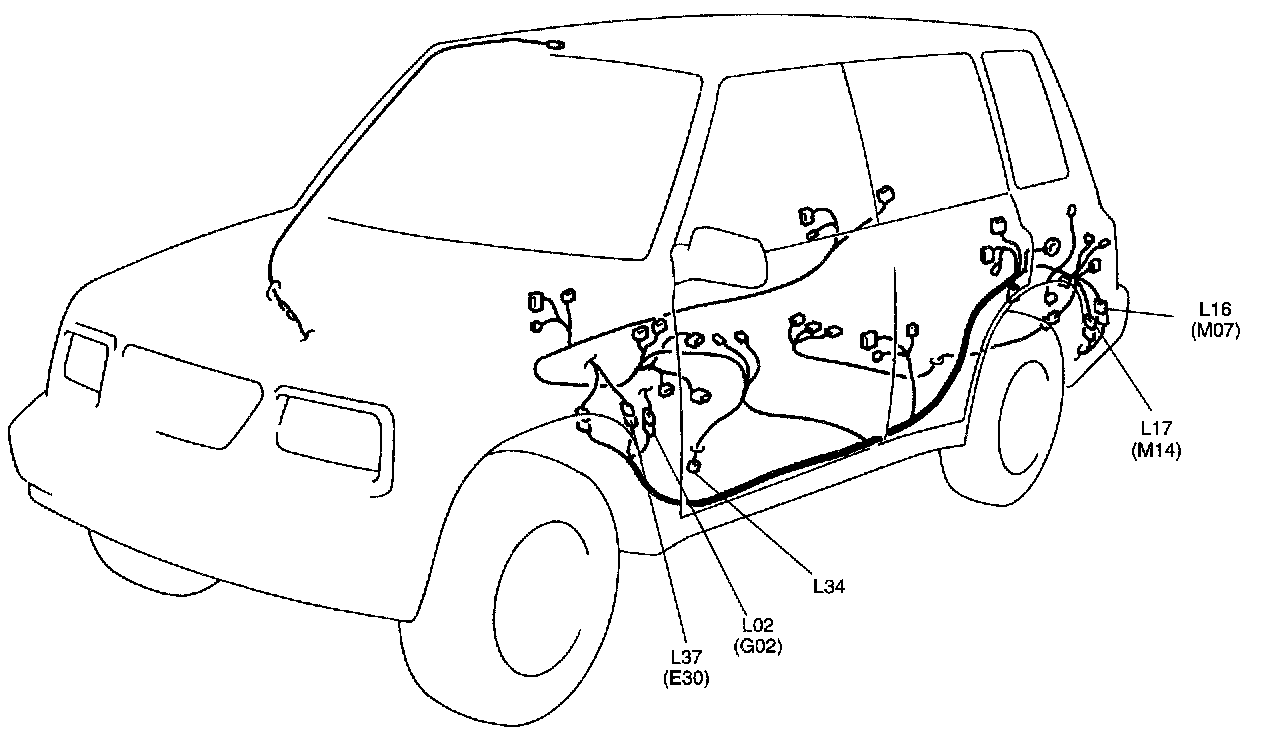

FLOOR.REAR L, S & K

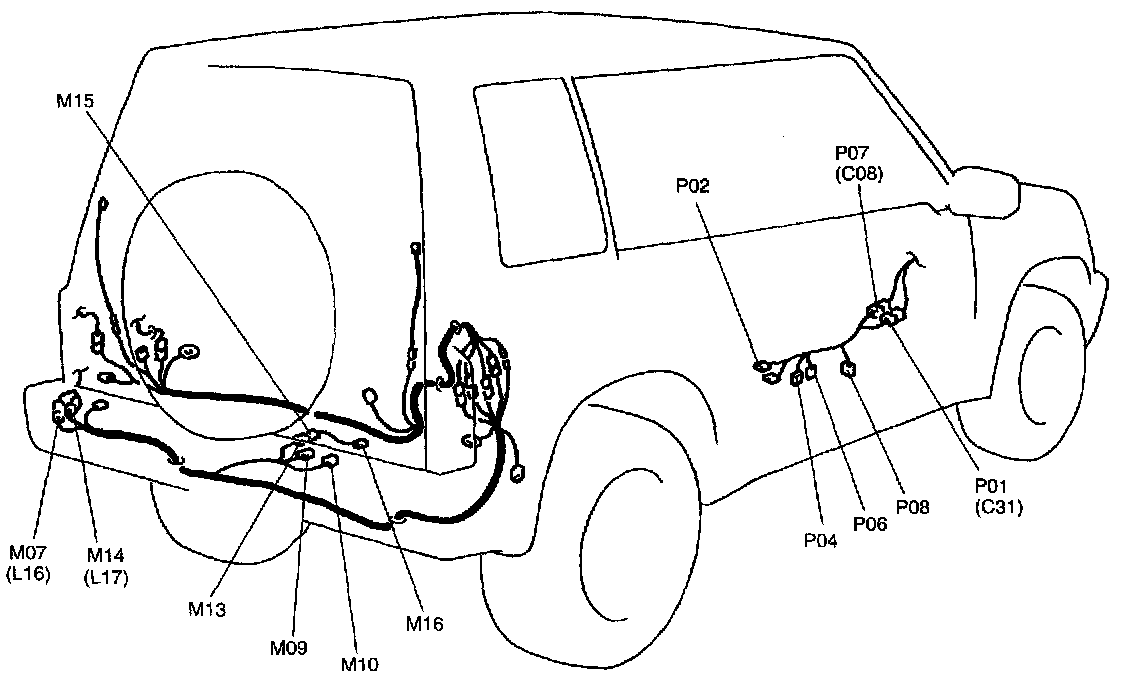

TRANSMISSION.BACK DOOR.REAR M, O & P
