P0461

DTC P0461 FUEL LEVEL SENSOR CIRCUIT PERFORMANCE





WIRING DIAGRAM

CIRCUIT DESCRIPTION
This signal is sent from the fuel level sensor (gauge) installed in the fuel tank. ECM uses this signal as one of the monitoring conditions for detecting diagnostic trouble code (DTC). For vehicle with tank pressure control solenoid vacuum valve, ECM also uses this signal to control tank pressure control solenoid vacuum valve.





DETECTING CONDITION

DTC CONFIRMATION PROCEDURE
DTC P0461 Flow chart includes system circuit confirmation inspection.

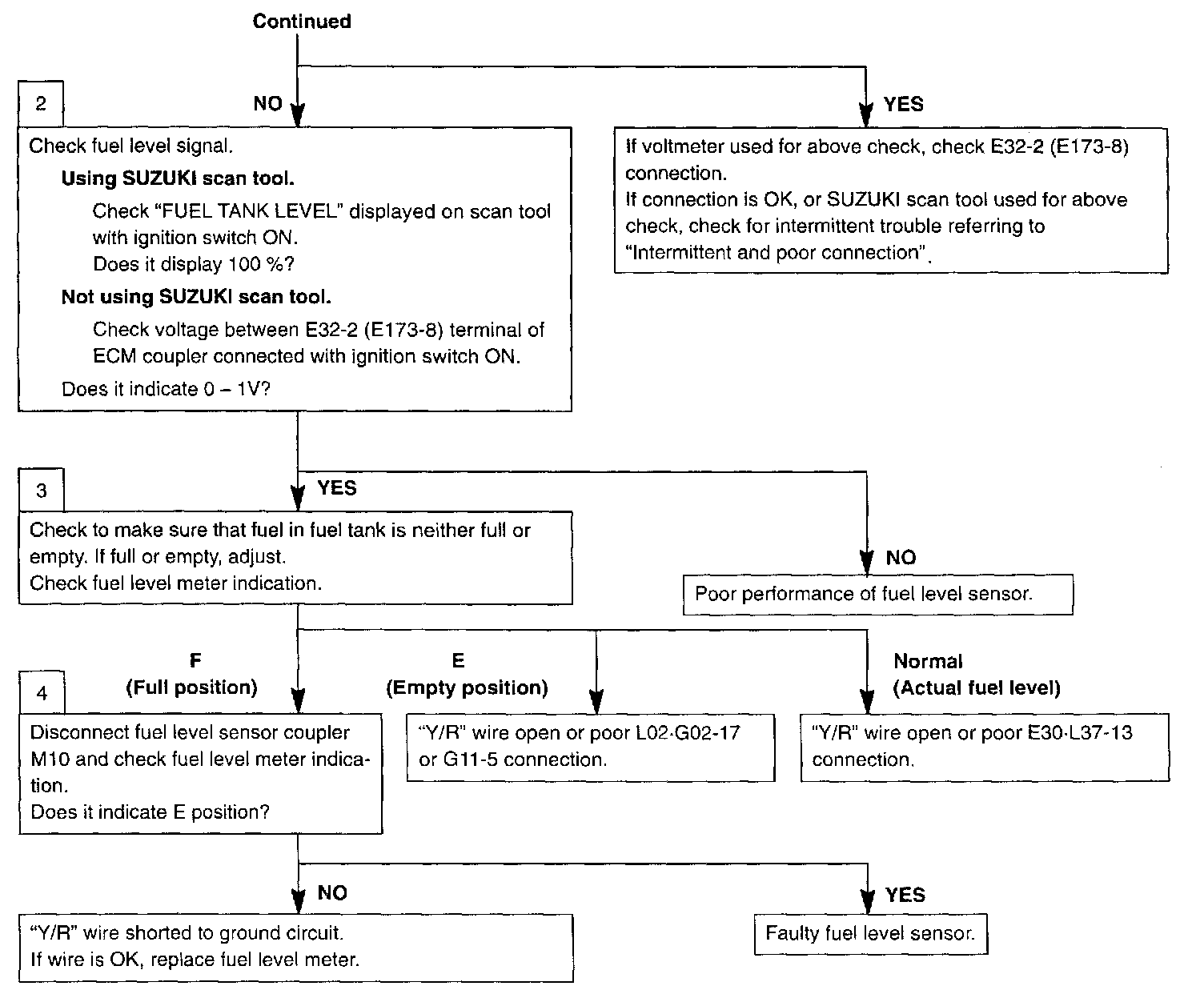

TROUBLESHOOTING
