P0113

DTC P0113 INTAKE AIR TEMP CIRCUIT HIGH INPUT





WIRING DIAGRAM

CIRCUIT DESCRIPTION
Located on the air cleaner, this sensor measures the temperature of the intake air and converts its change into that in resistance through the thermistor like the ECT sensor.
By monitoring the resistance of the IAT sensor, ECM detects the intake air temperature and use it as one of the signals to control fuel injectors and ignition timing.





DETECTING CONDITION

DTC CONFIRMATION PROCEDURE

NOTE: Check to make sure that following conditions are satisfied when using this DTC CONFIRMATION PROCEDURE.
- Intake air temp.: -14°C, 6.8°F or higher.
- Barometric pressure (Altitude) : 540mmHg, 72 kPa or more (2790m, 9150ft or less).

1) Connect scan tool to DLC with ignition switch OFF
2) Turn ON ignition switch and clear DTC, pending DTC and freeze frame data by using scan tool.
3) Start engine and run it for 10 sec.
4) Check DTC by using scan tool.

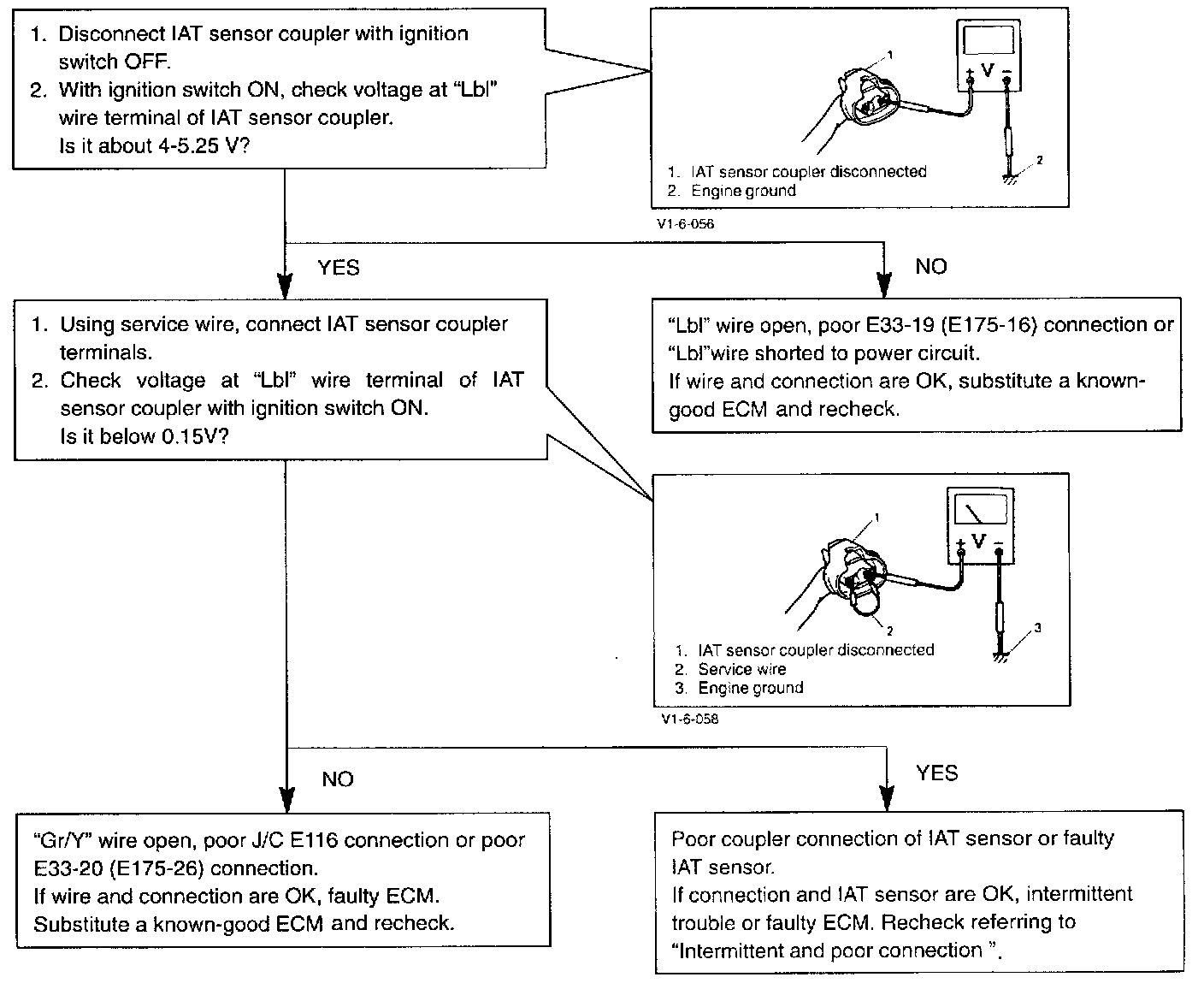

TROUBLESHOOTING
