Pcm Circuit Identification

NOTE: For PCM connector and terminal identification, see PCM CIRCUITS (1.6L)  table, PCM CIRCUITS (1.8L)  table and appropriate wiring diagrams in WIRING DIAGRAMS  .
PCM CIRCUITS (1.6L) (1)

Connector/Terminal No. Wire Color Function
A/1 WHT VSS Signal High
A/2 ORG/GRN Overdrive Switch Signal
A/3 ORG/WHT 4WD Low Signal
A/4 ORG Shift Mode Signal
A/5 RED/YEL Lights ON Signal
A/6 WHT/BLK O/D OFF Indicator
A/7 PNK Power Indicator
A/8 GRN/RED Shift Solenoid No. 2
A/9 BLK VSS Signal Low
A/10 GRN/BLU L Position Signal
A/11 GRN/RED 2 Position Signal
A/12 GRN D Position Signal
A/13 ORG/BLU N Position Signal
A/14 RED R Position Signal
A/15 GRN/ORG Shift Solenoid No. 1
A/16 GRN/YEL TCC Solenoid
B/1 BLU Main Relay
B/2 BLK/ORG Ground
B/3 BLK/BLU Ignition Voltage
B/4 WHT Backup Power
B/5 PPL Duty Check Output
B/6 ORG Ignition Control Module Output
B/7 GRN/WHT EGR Solenoid Vacuum Valve
B/8 Not Used Not Used
B/9 PNK Fuel Pump Relay
B/10 PNK/BLU TP Input
B/11 RED Fuel Injector No. 1
B/12 LT GRN/BLK IAC Valve
B/13 WHT/GRN Fuel Injector No. 3
B/14 BLK/ORG Ground
B/15 BLK/GRN PCM Ground
B/16 BLU/BLK Ignition Voltage
B/17 PPL/GRN Serial Data Output
B/18 Not Used Not Used
B/19 PNK HO2S-1 Heater
B/20 Not Used Not Used
B/21 Not Used Not Used
B/22 Not Used Not Used
B/23 PPL/YEL MIL Control
B/24 GRN/RED Fuel Injector No. 2 Control
B/25 GRN/YEL EVAP Canister Purge Valve Control
B/26 WHT/BLK Fuel Injector No. 4 Control
C/1 Not Used Not Used
C/2 BLK/YEL Starter Signal
C/3 WHT CMP Sensor Input
C/4 YEL VSS Input
C/5 YEL/BLK A/C ON Signal
C/6 BLU/YEL Diagnostic Request Signal
C/7 Not Used Not Used
C/8 RED/BLU HO2S-1 Signal
C/9 GRY/BLK MAF Sensor Input
C/10 GRY/RED Reference Voltage
C/11 BRN Sensor Ground
C/12 Not Used Not Used
C/13 GRN/RED Brake Signal
C/14 PNK/GRN O/D Cut Signal
C/15 BLU/WHT CTP Switch Signal
C/16 BLU/ORG Power Steering Pressure Signal
C/17 PNK/WHT ABS Idle-Up Signal
C/18 BLU/RED Test Switch Signal
C/19 RED/BLK IAT Sensor Input
C/20 GRY TP Sensor Input
C/21 RED/YEL ECT Sensor Input
C/22 Not Used Not Used
D/1 YEL HO2S-2 Signal
D/2 BRN/YEL MAP Sensor Input
D/3 YEL/RED Fuel Level Input
D/4 YEL/RED Fuel Gauge Ground
D/5 GRN/WHT EVAP Canister Vent Valve Control
D/6 PNK/WHT HO2S-2 Heater
D/7 BRN/WHT Fuel Tank Pressure Input
D/8 ORG/BLK Ignition Reference High (CKP Sensor)
D/9 WHT/BLU Ignition Reference Low (CKP Sensor)
D/10 Not Used Not Used
D/11 GRN/RED EGR By-Pass Valve Control
D/12 GRN/BLU EVAP Tank Pressure Control Solenoid Vacuum Valve Control

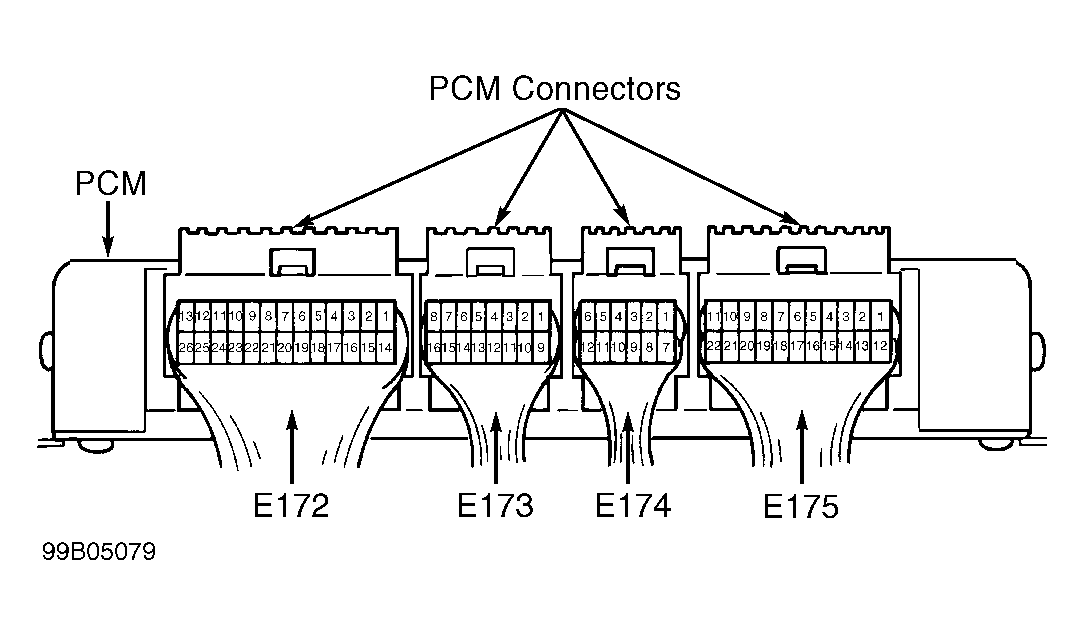

(1) See Figure .
PCM CIRCUITS (1.8L) (1)

Connector/Terminal No. Wire Color Function
A/1 PUR/BLU Cruise Control Module (Throttle Opening)
A/2 BRN/WHT Tachometer
A/3 PUR/WHT POWER Light
A/4 VIO/YEL MIL
A/5 RED R Position Signal
A/6 RED/YEL Lighting Switch
A/7 BLK/ORG Ground
A/8 BLU/BLK Power
A/9 Not Used Not Used
A/10 BLU Main Relay
A/11 WHT/BLK OD/OFF Lamp
A/12 PUR Fuel Pump Relay
A/13 WHT Backup Power
A/14 ORG/GRN O/D Cut Switch
A/15 BLU/GRN Electrical Load Signal Diode
A/16 BLU/RED Ignition Timing Switch Terminal
A/17 GRN/BLU D Position Signal
A/18 ORG/WHT "4WD Low" Switch
A/19 GRN/ORG 2 Position Signal
A/20 LT GRN/BLK No. 2 Ignition Coil
A/21 LT GRN/WHT No. 3 Ignition Coil
A/22 LT GRN/YEL No. 4 Ignition Coil
A/23 BLU/BLK Power
A/24 VIO Duty Output Terminal
A/25 VIO/GRN Data Link Connector
A/26 BLK/BLU Ground
A/27 YEL VSS
A/28 ORG P/N Position Switch
A/29 YEL/BLK A/C Amplifier
A/30 BLU/YEL Diagnostic Switch Terminal
A/31 GRN/WHT Brake Switch
A/32 Not Used Not Used
A/33 ORG/BLU N Position Signal
A/34 LT GRN No. 1 Ignition Coil
A/35 BLK/BLU Ground
B/1 Not Used Not Used
B/2 BLU Ground
B/3 PUR/GRN Cruise Control Module
B/4 Not Used Not Used
B/5 PUR/WHT HO2S-2 Heater
B/6 Not Used Not Used
B/7 PUR MAP Sensor
B/8 YEL/RED Fuel Level Sensor
B/9 WHT CKP Positive
B/10 Not Used Not Used
B/11 RED HO2S-2 Signal
B/12 Not Used Not Used
B/13 Not Used Not Used
B/14 Not Used Not Used
B/15 Not Used Not Used
B/16 GRN/WHT EVAP Canister Air Valve
B/17 Not Used Not Used
B/18 Not Used Not Used
B/19 ORG CKP Negative
B/20 BRN/RED Fuel Tank Pressure Sensor
B/21 Not Used Not Used
B/22 Not Used Not Used
B/23 Not Used Not Used
B/24 Not Used Not Used
B/25 BRN/YEL EVAP Diagnostic Valve
B/26 GRN/BLU Fuel Tank Pressure Control Solenoid Vacuum Valve
C/1 GRN/RED Shift Solenoid No. 2
C/2 GRN/YEL TCC Solenoid
C/3 WHT VSS Positive (A/T)
C/4 ORG VSS Negative (A/T)
C/5 Not Used Not Used
C/6 GRN Shift Solenoid No. 1
C/7 GRN/BLU L Position Signal
C/8 Not Used Not Used
C/9 Not Used Not Used
C/10 Not Used Not Used
C/11 Not Used Not Used
C/12 Not Used Not Used
C/13 Not Used Not Used
C/14 Not Used Not Used
C/15 Not Used Not Used
C/16 Not Used Not Used
C/17 Not Used Not Used
C/18 Not Used Not Used
C/19 Not Used Not Used
C/20 Not Used Not Used
D/1 GRY/RED No. 3 Injector
D/2 GRY/WHT No. 4 Injector
D/3 LT GRN/WHT EGR Stepper Motor Coil-1
D/4 RED/BLU HO2S-1 Signal
D/5 BLK/YEL Engine Start Switch
D/6 LT GRN/YEL EVAP Canister Purge
D/7 BLK/WHT Ignition Switch
D/8 GRY/BLK No. 2 Injector
D/9 BLK/GRN Ground
D/10 YEL/BLU CMP Reference Signal
D/11 Not Used Not Used
D/12 RED/YEL ECT
D/13 LT GRN/BLK EGR Stepper Motor Coil-2
D/14 LT GRN/YEL EGR Stepper Motor Coil-4
D/15 LT GRN/RED EGR Stepper Motor Coil-4
D/16 LT BLU IAT
D/17 BLU/ORG PSP
D/18 GRY/RED Power
D/19 PUR HO2S-1 Heater
D/20 GRY No. 1 Injector
D/21 BLK/GRN Ground
D/22 YEL/GRN CMP Position Signal
D/23 Not Used Not Used
D/24 GRY/BLK MAF
D/25 GRY TPS
D/26 GRY/YEL Sensor Ground
D/27 GRY/YEL Sensor Ground
D/28 LT GRN/BLK IAC Valve

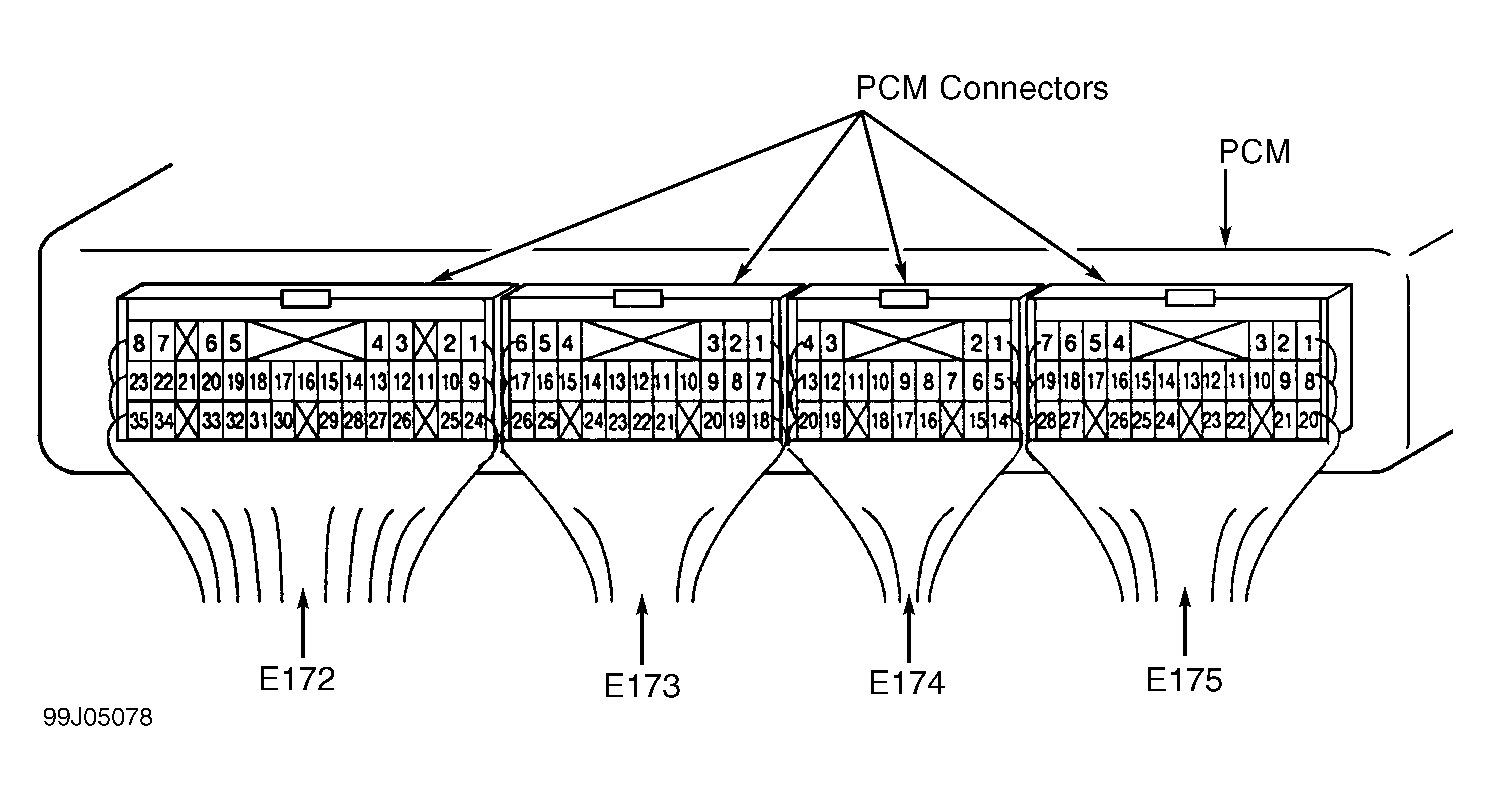

(1) See Figure .
