Disabling System (Except Protege)

  1. Obtain radio anti-theft protection code from vehicle owner prior to servicing vehicle or deactivate radio anti-theft function before disconnecting vehicle battery.
  2. Turn ignition switch to LOCK position. Disconnect and shield negative battery cable. Wait at least ONE MINUTE for back-up power supply to be depleted.

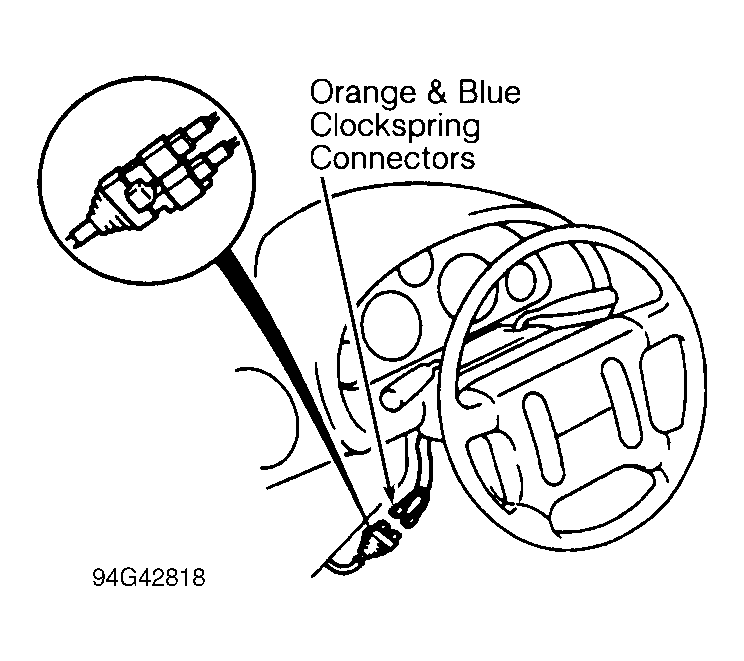

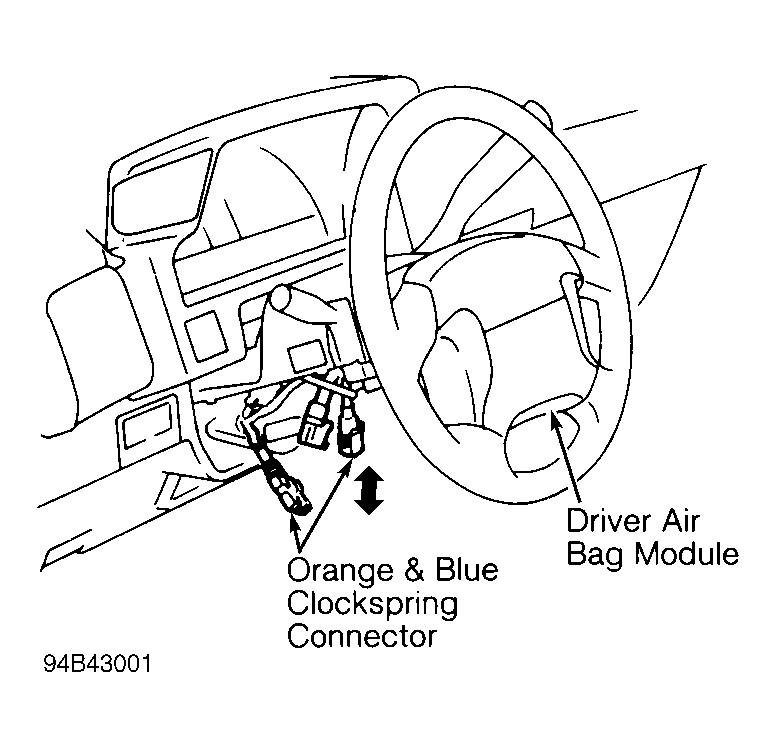

  3. Remove cover below left side of instrument panel. Disconnect clockspring connector for driver-side air bag. See Figure or Figure . Remove glove box cover (MPV) and glove box. Disconnect passenger-side air bag module connector. See Figure.
