Disabling System (LX450)

  1. Obtain radio anti-theft protection code from vehicle owner and record preset radio frequencies before disconnecting battery.
  2. Place front wheels in straight-ahead position. Turn ignition switch to LOCK position. Disconnect and shield negative battery cable. Wait at least 90 SECONDS before working on vehicle.
  3. Disconnect driver-side air bag module Yellow 2-pin connector located under steering column, near combination switch. Air bag connector terminals are automatically shorted together. See Figure.

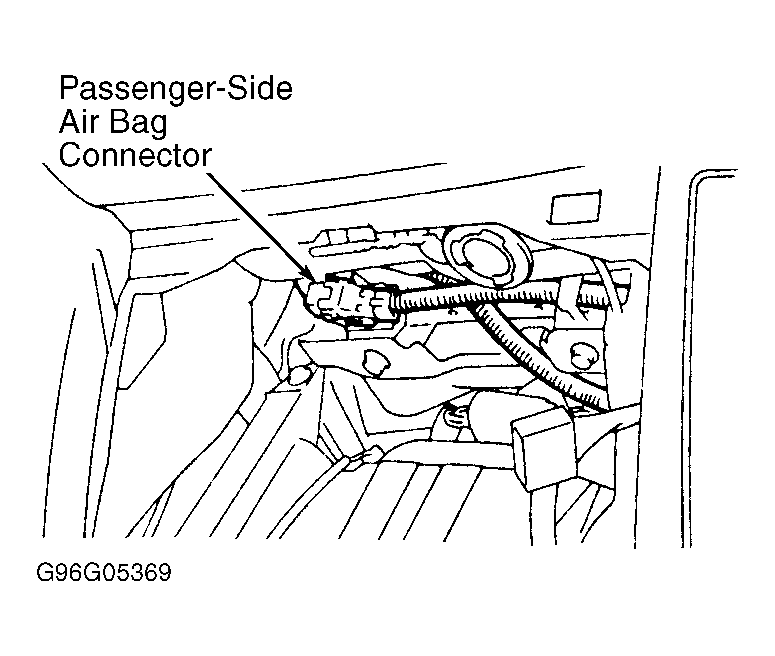

  4. Remove glove box door. Remove passenger-side air bag connector from air bag bracket. Disconnect passenger-side air bag Yellow 2-pin connector. Air bag connector terminals are automatically shorted together. See Figure and Figure .
