Vacuum Hose Diagram(S)

NOTE: Always refer to Emission Control label in engine compartment before attempting service. If manual and label differ, always use emission label specifications.

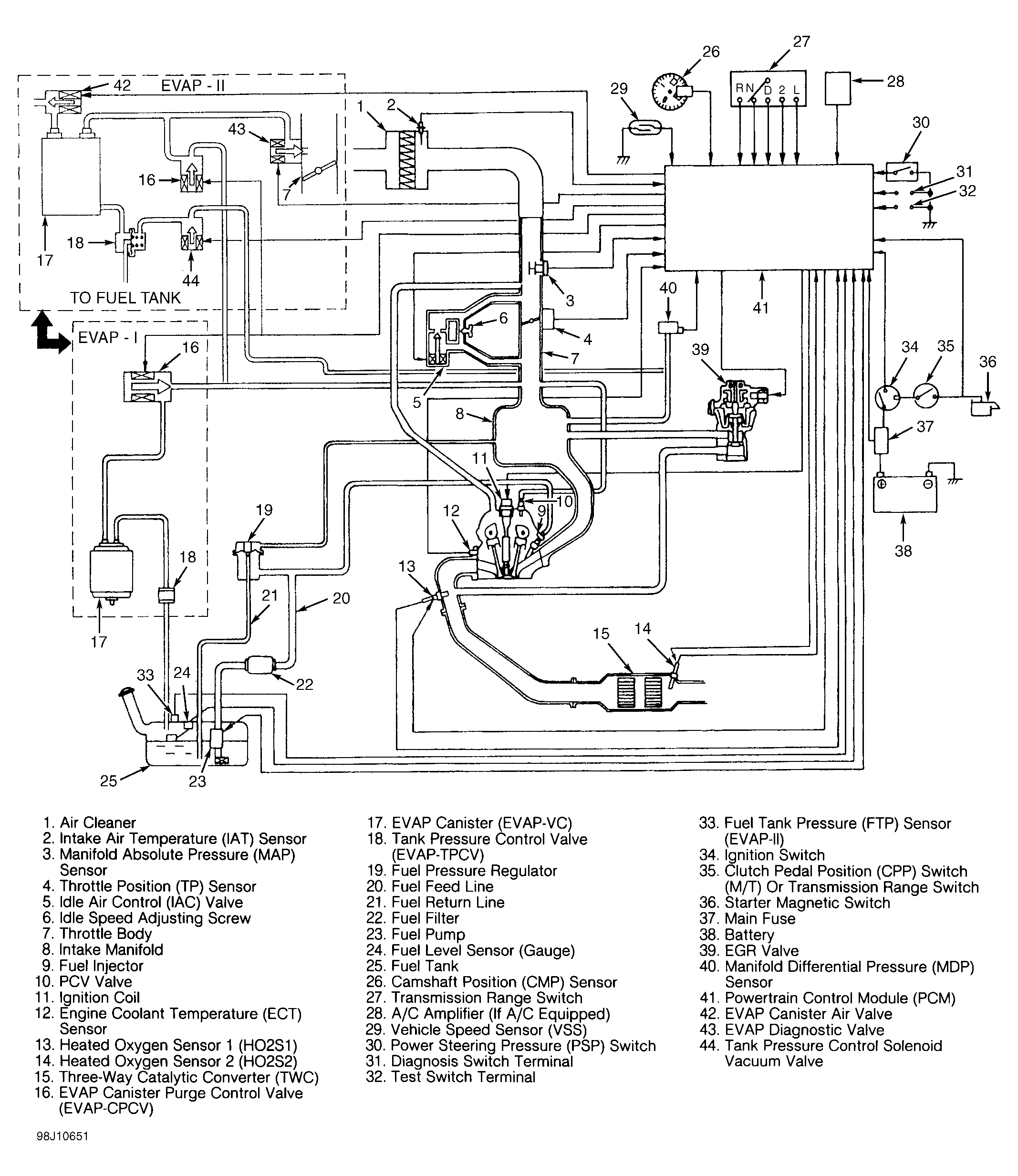

Fig 1: Vacuum Diagram (Esteem 1.6L)

Courtesy of SUZUKI OF AMERICA CORP.

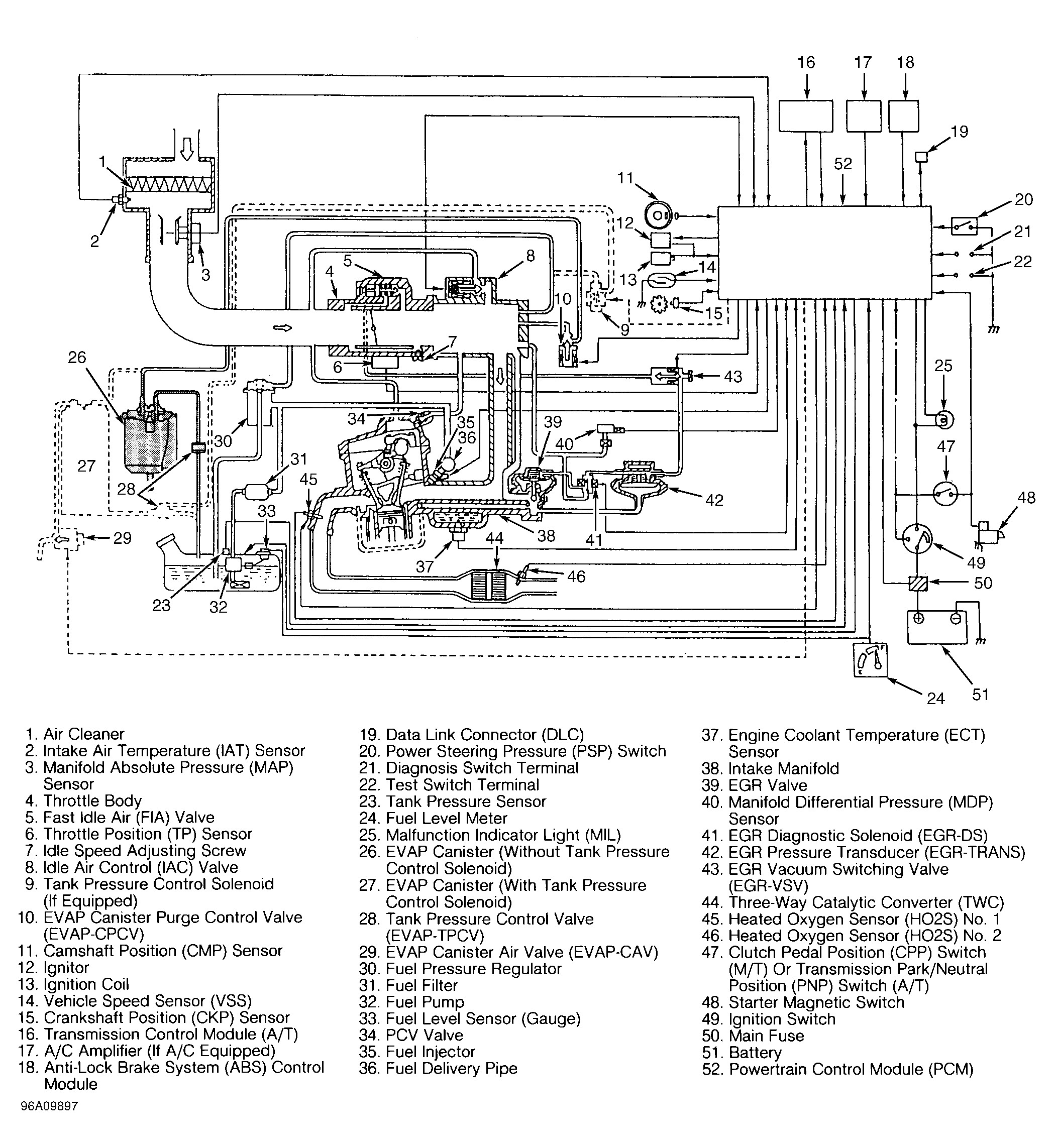

Fig 2: Vacuum Diagram (Sidekick & X-90 - 1.6L)

Courtesy of SUZUKI OF AMERICA CORP.

Fig 3: Vacuum Diagram (Sidekick 1.8L)

Courtesy of SUZUKI OF AMERICA CORP.

Fig 4: Vacuum Diagram (Swift 1.3L)

Courtesy of SUZUKI OF AMERICA CORP.
