Combination Switch Test

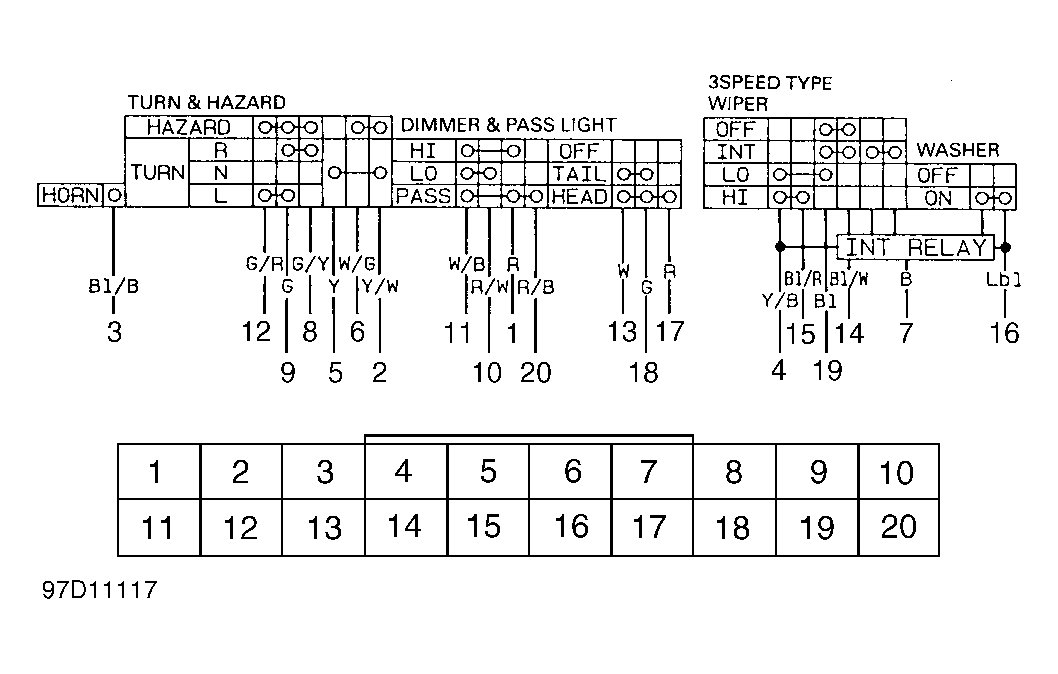

Disconnect combination switch connectors. Using an ohmmeter, check continuity across switch terminals with switch in indicated position. See appropriate COMBINATION SWITCH CONTINUITY table. See Fig 1
, Fig 2
or Fig 3
. If continuity is not as specified, replace necessary components.
COMBINATION SWITCH CONTINUITY
| Switch Position |
Terminal-To-Terminal (Wire Color) |
| Turn Signal |
| Right Turn Signal |
GRN & GRN/YEL |
| Left Turn Signal |
GRN & GRN/RED |
| Neutral |
|
| Dimmer & Passing |
| Low Beam |
WHT/BLK & RED |
| High Beam |
WHT/BLK & RED/WHT |
| Passing |
WHT/BLK, RED & RED/BLK |
| Headlights |
| Parking |
WHT & GRN |
| Lights |
WHT, GRN & RED |
| Off |
|
| Horn |
BLU/BLK & Ground |
COMBINATION SWITCH CONTINUITY
| Switch Position |
Terminal-To-Terminal (Wire Color) |
| Turn Signal & Hazard |
| Right Turn Signal |
YEL & YEL/WHT, GRN & GRN/YEL |
| Left Turn Signal |
YEL & YEL/WHT, GRN & GRN/RED |
| Neutral |
YEL & YEL/WHT |
| Dimmer & Passing |
| Low Beam |
RED/WHT & WHT/BLK |
| High Beam |
RED & WHT/BLK |
| Passing |
WHT/BLK, RED & RED/BLK |
| Headlights |
| Parking |
WHT & GRN |
| Lights |
WHT, RED, & GRN |
| Off |
|
| Horn |
BLU/BLK & Ground |
COMBINATION SWITCH CONTINUITY
| Switch Position |
Terminal-To-Terminal (Wire Color) |
| Turn Signal & Hazard |
| Right Turn Signal |
YEL & YEL/BLU; GRN & GRN/YEL |
| Left Turn Signal |
YEL & YEL/BLU; GRN & GRN/RED |
| Neutral |
YEL & YEL/BLU |
| Dimmer & Passing |
| Low Beam |
WHT/BLK & RED/WHT |
| High Beam |
WHT/BLK & RED |
| Passing |
WHT/BLK, RED & RED/BLK |
| Headlights |
| Parking |
WHT & GRN |
| Lights |
WHT, GRN & RED |
| Off |
|
| Horn |
BLU/BLK & Ground |
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
