Power Locks

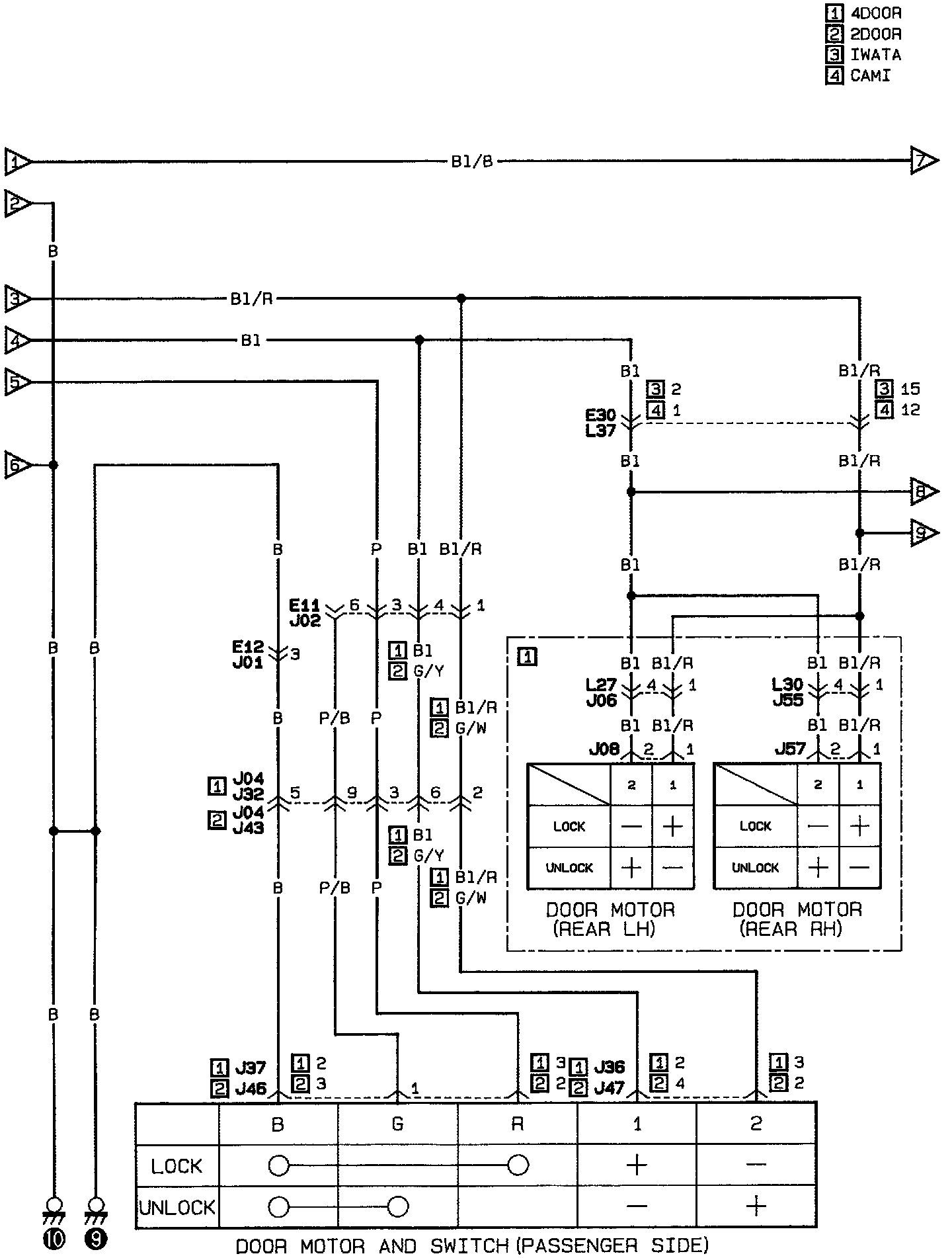

Central Door Lock System (Part 1 Of 3):

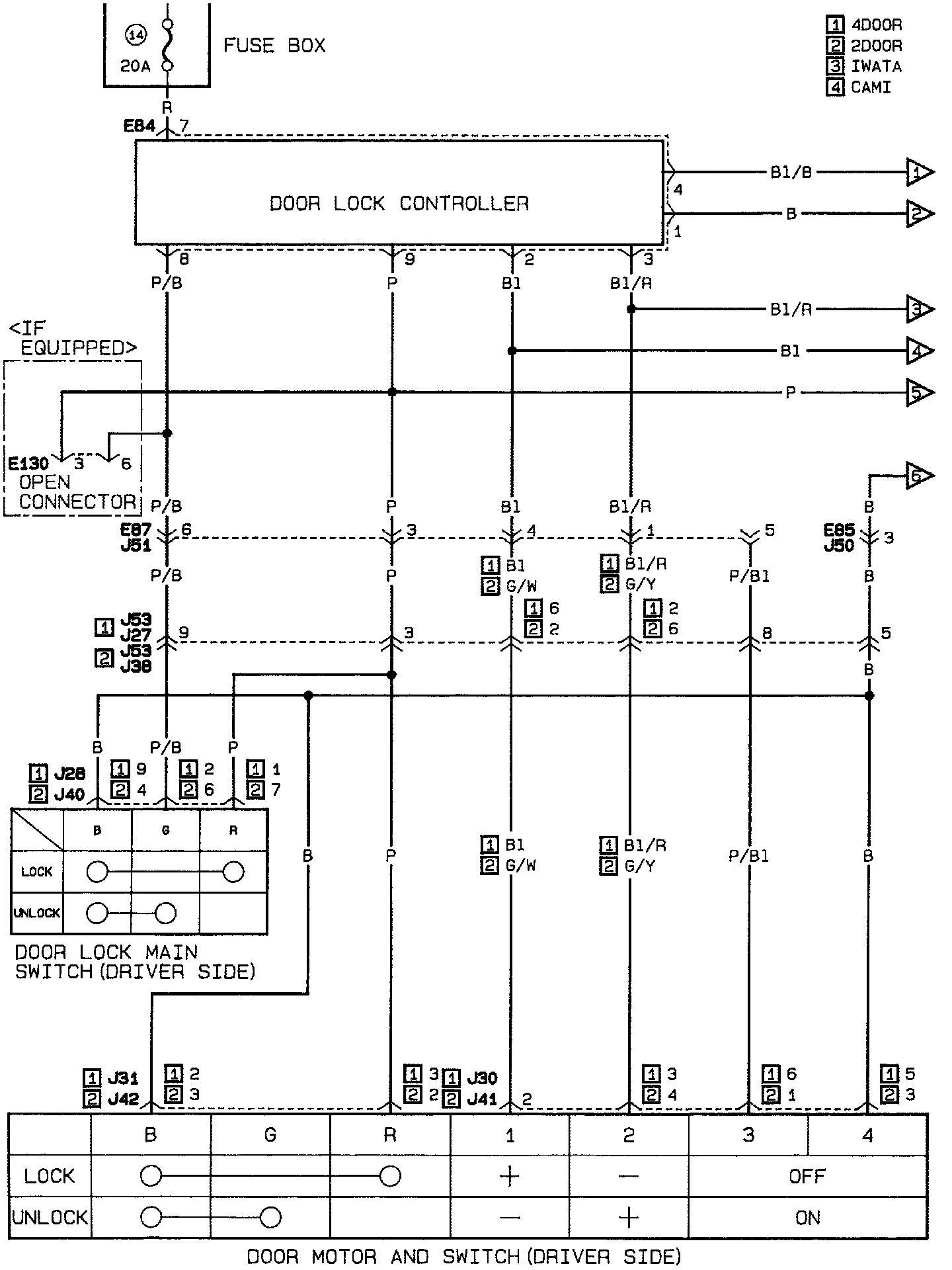

Central Door Lock System (Part 2 Of 3):

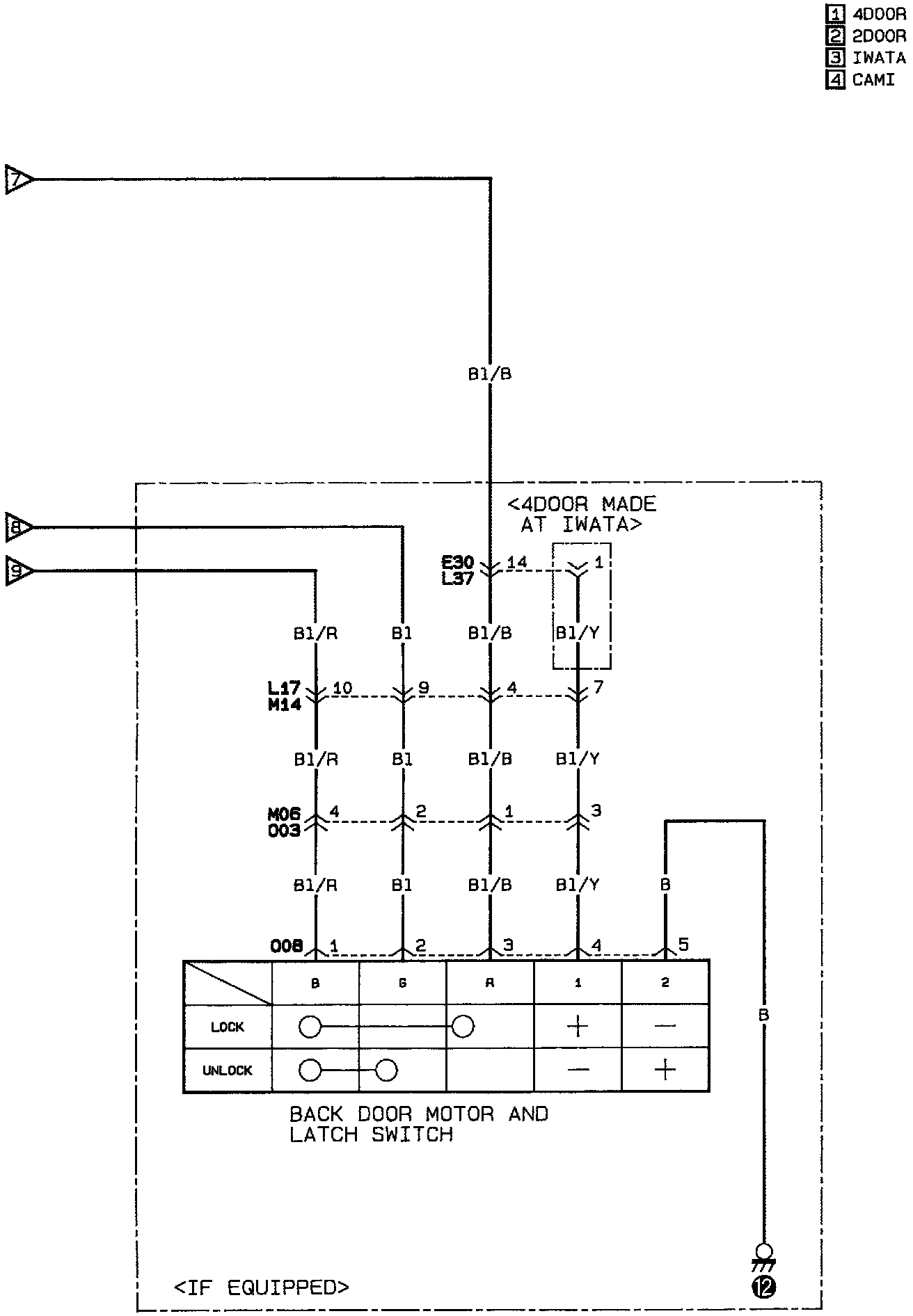

Central Door Lock System (Part 3 Of 3):
