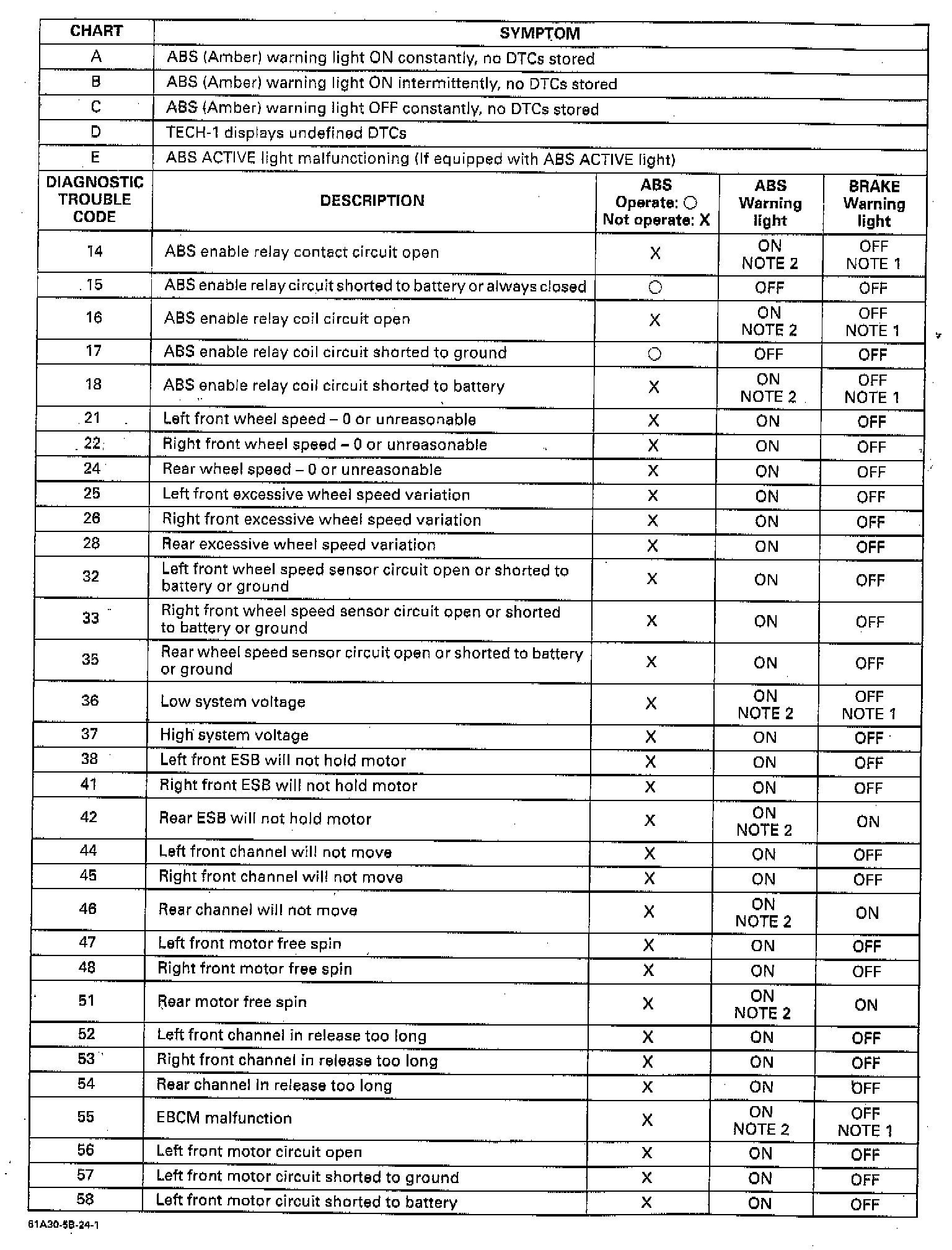

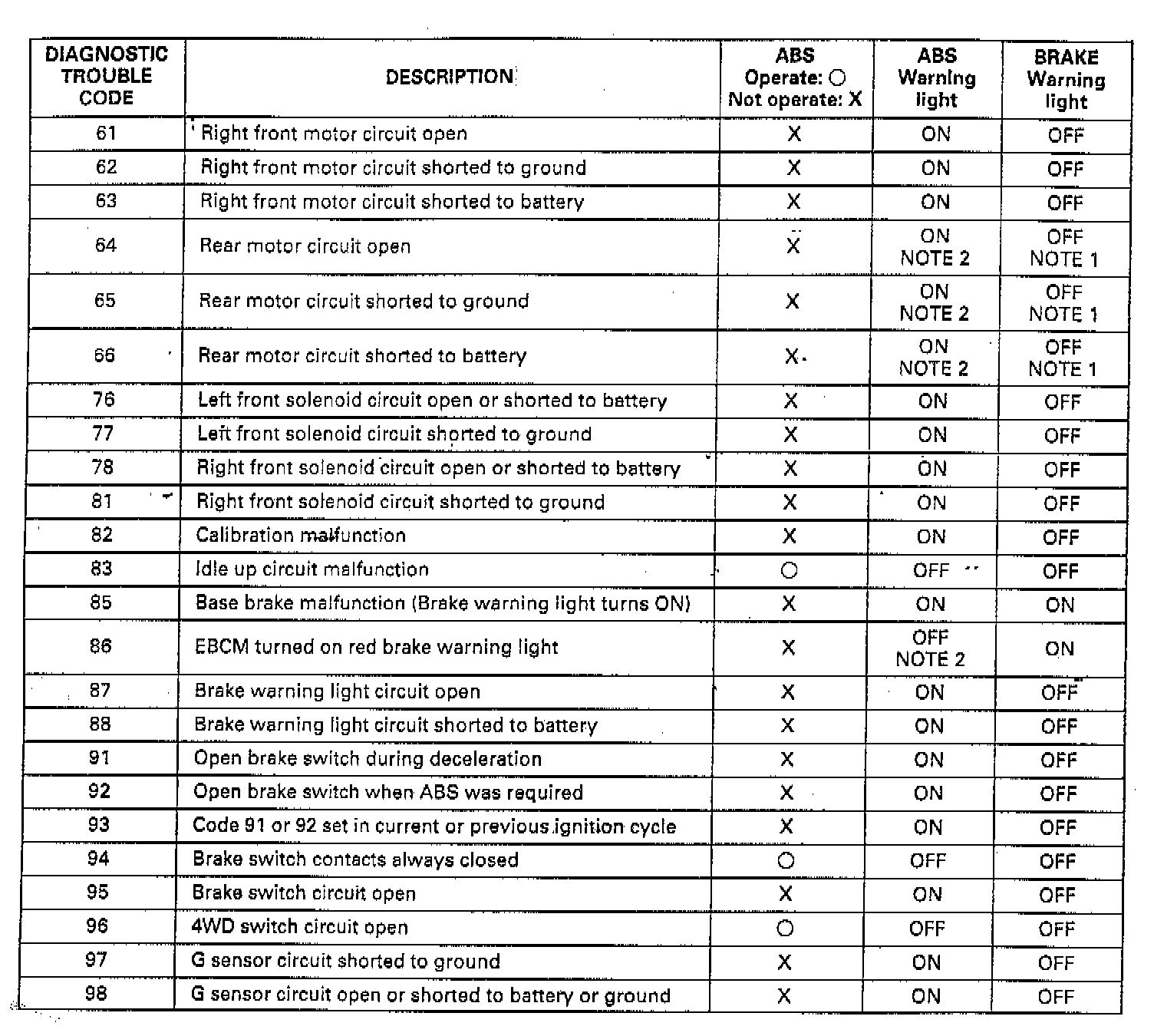

Antilock Brake System









NOTE 1: If the rear piston is not in the home position, the Brake warning light will be illuminated.

NOTE 2: The Antilock Brake System (ABS) warning light will flash if the Electronic Brake Control Module (EBCM) cannot illuminate the Brake warning light.
