Chart B-4 "Power" Light Circuit Check

CHART B-4 "POWER" LIGHT CIRCUIT CHECK
("POWER" LIGHT COMES ON STEADILY)





WIRING DIAGRAM

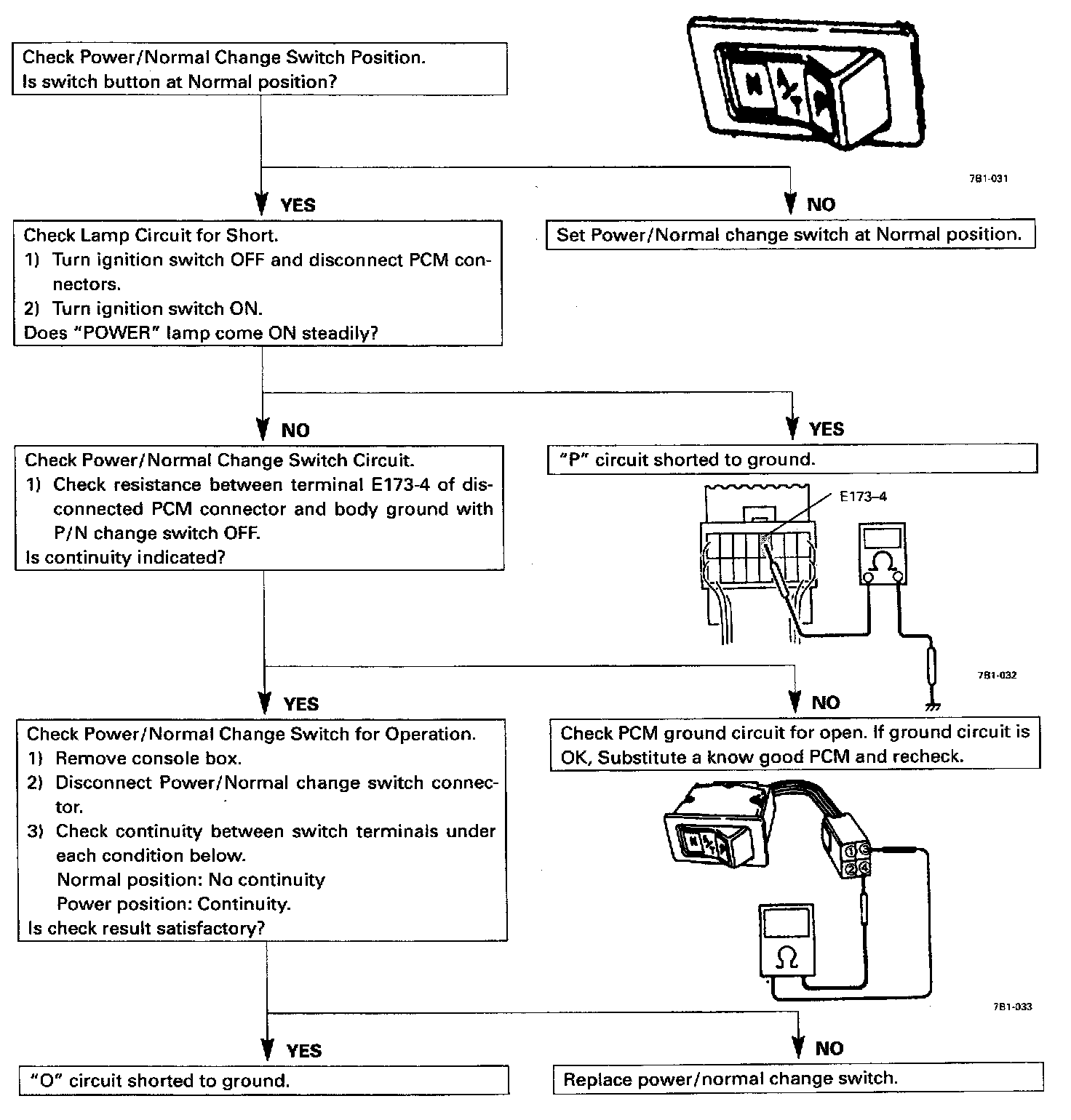

TROUBLESHOOTING
